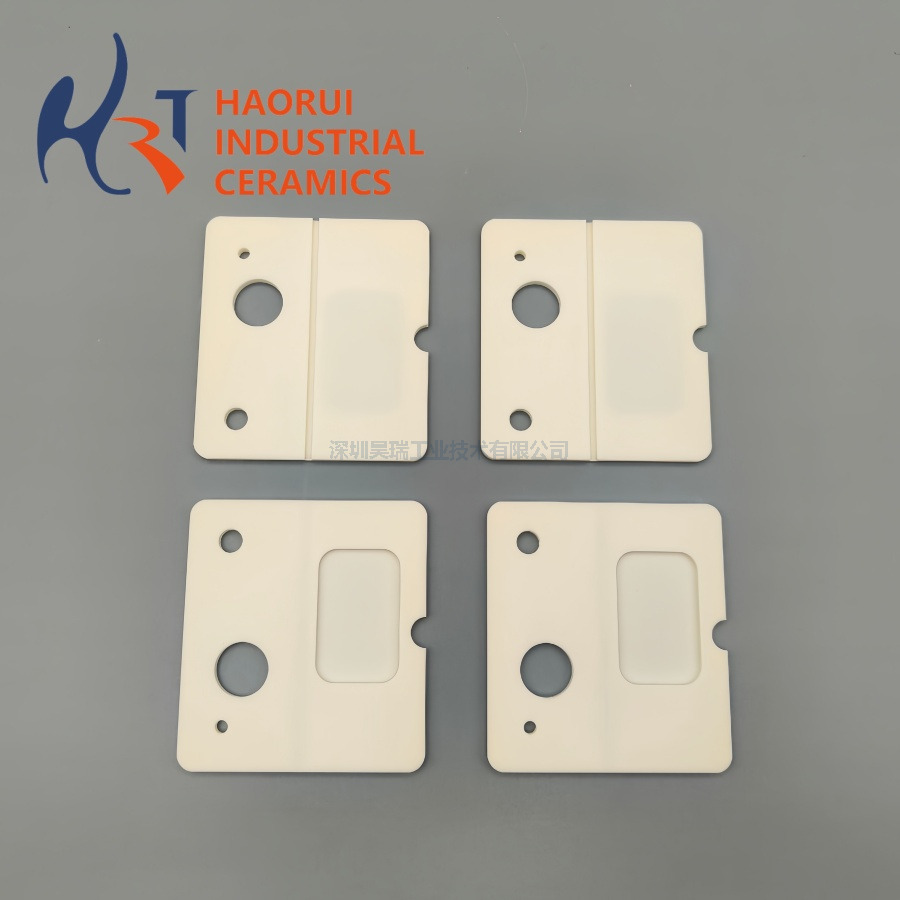

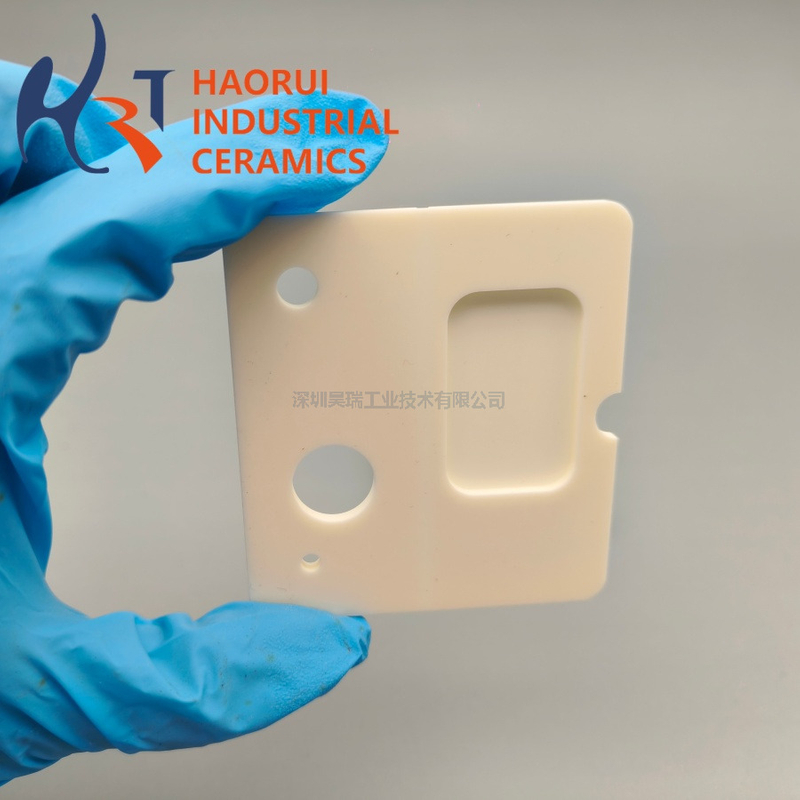

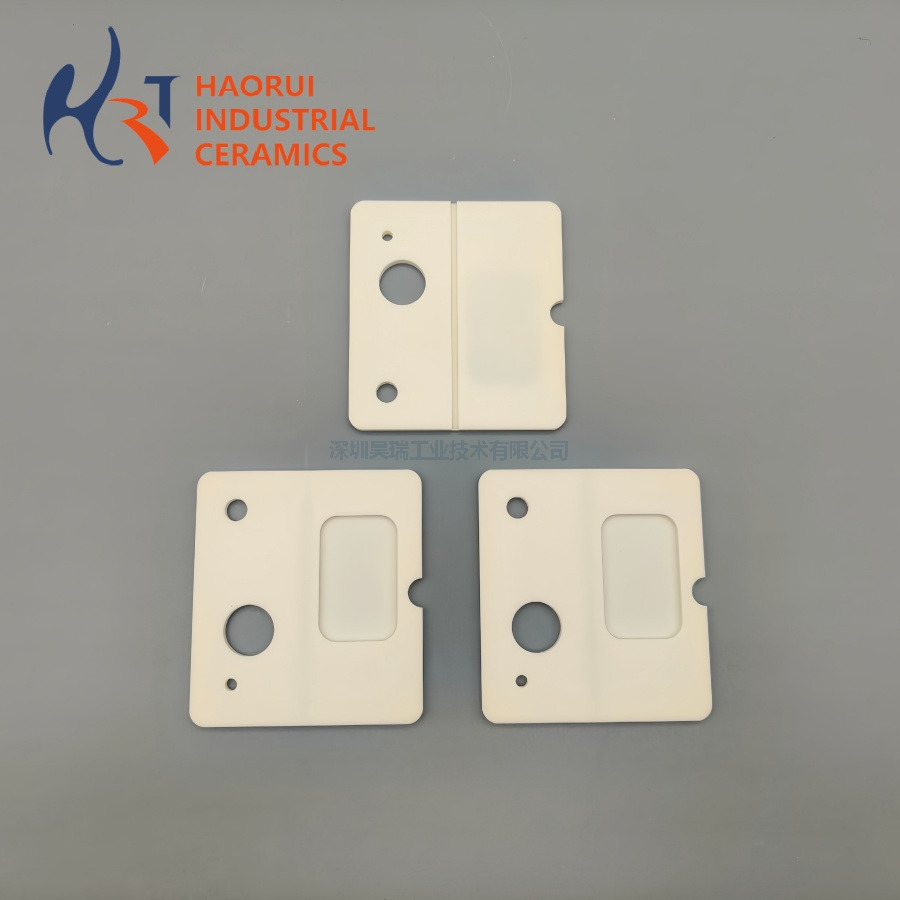

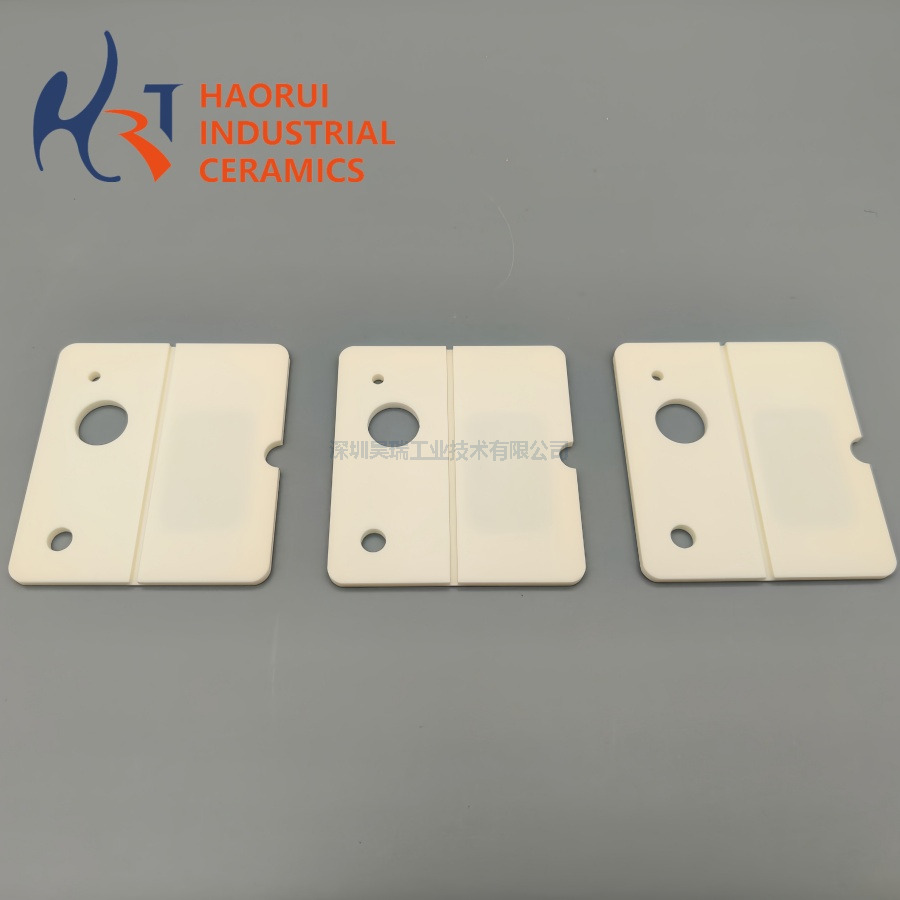

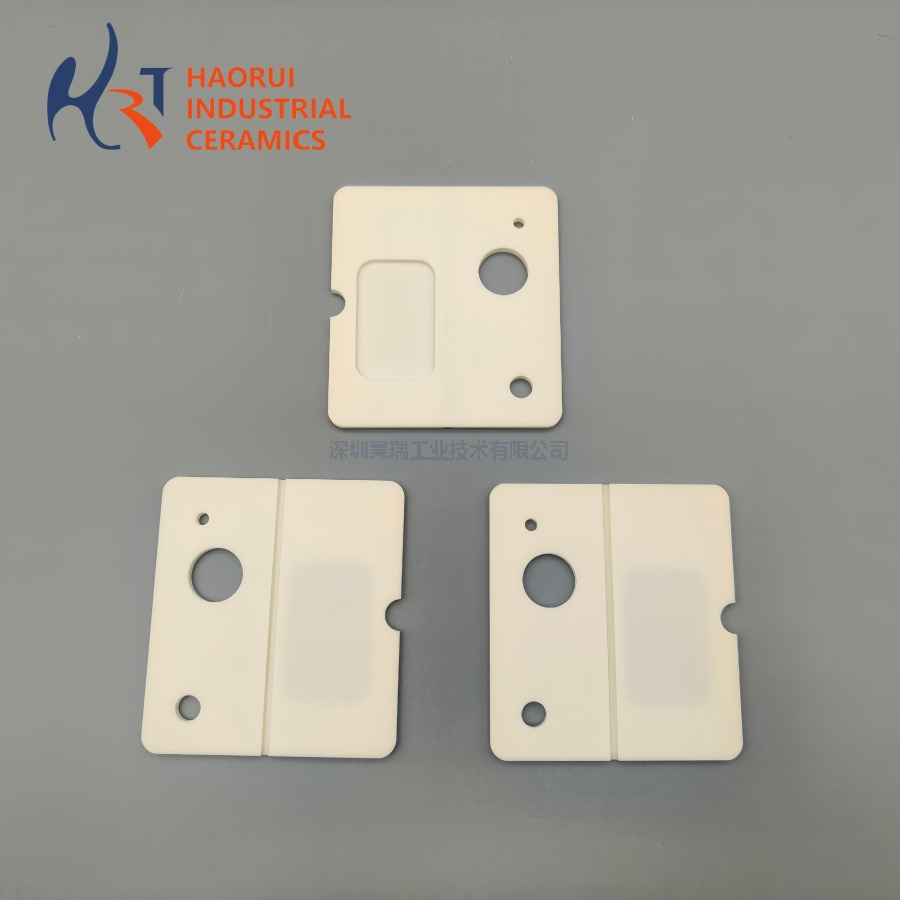

Industrial Precision Al2O3 Ceramic Structural Components Custom Technical Ceramic Parts

Name: Industrial Precision Al2O3 Ceramic Structural Components Custom Technical Ceramic Parts
Brand: HaoRui
Rating: 5.0 (32 reviews)

1.Excellent electrical insulation
2.Relatively low strength and fracture toughness
3.Resistance to wear and corrosive
4.Excellent thermal stability
5.Resistance to high temperatures
6.High electrical resistivity
7.Good chemical stability
8.High corrosion resistance
9. A variety of specifications available
10.Satisfy various technical request

Availability:

Quantity:



Inquire Add to Basket

Model:
01017
Brand:
HaoRui
Code:
custom 01017

Product Description

The Most Well-known Oxide Ceramic Material

Precision Alumina (Al2O3)

We provide custom machining services for precision alumina (Al2O3) ceramic components. Our manufacturing capabilities include CNC machining, precision grinding, lapping, and polishing, enabling us to produce complex alumina parts with tight tolerances up to ±0.01 mm and controlled surface roughness. We work with 95% 96% 99% high-purity alumina, selected according to mechanical, thermal, and electrical requirements. Our alumina ceramics offer high dielectric strength, excellent wear resistance, chemical stability, and reliable performance under high-temperature operating conditions. All processes are handled in-house, allowing strict control over dimensional accuracy, surface quality, and batch consistency. We support OEM customization based on technical drawings or samples and provide stable, repeatable solutions for semiconductor equipment, electronic insulation, and precision industrial assemblies.

Properties of Alumina/Aluminum Oxide (Al2O3)

Alumina, or aluminum oxide (Al2O3), is a versatile material with a wide range of properties that make it suitable for various industrial applications. Some of the key properties of alumina include:

High hardness: Alumina is a very hard material, ranking 9 on the Mohs scale of mineral hardness. This property makes it highly resistant to wear and abrasion.
Excellent wear resistance: Alumina exhibits exceptional wear resistance, making it suitable for use in applications where materials are subjected to high levels of friction and abrasion.
High temperature resistance: Alumina has a high melting point and can withstand temperatures up to 1600°C, making it ideal for use in high-temperature applications such as furnace linings and ceramic crucibles.
Good thermal conductivity: Alumina has good thermal conductivity, allowing it to efficiently transfer heat and resist thermal shock.
Electrical insulation: Alumina is an excellent electrical insulator, making it suitable for use in electrical and electronic applications where high voltage insulation is required.
Chemical inertness: Alumina is chemically inert and resistant to most chemicals, acids, and alkalis, making it suitable for use in corrosive environments.
Biocompatibility: Alumina is biocompatible and non-toxic, making it suitable for use in medical implants and prosthetics.

Overall, the combination of these properties makes alumina a highly versatile material that is used in a wide range of applications across various industries.

Property	Item	95% Al2O3	99% Al2O3	99.8%Al2O3	Unit
Mechanical Characteristics	Color	White	light yellow	Ivory
	Bulk Density	3.7	3.85	3.93	g/cm³
	Water Absorption	0	0	0	%
	Bending Strength	300	310	370	MPa
	Compressive Trength	2,300	2,400	2500	MPa
	Elastic Modulus	320	340	390	GPa
	Fracture Toughness	3~4	3~4	4	MPa m^1/2
	Weber Coefficient	12	12	12	m
	Vickers Hardness	1,400	1,600	1850	HV 0.5
Thermal Characterics	Coefficient of Line Thermal Expansion	7~8	7~8	7~8	10^-6 K^-1
	Thermal Conductivity	20	29	32	W/mK
	Thermal Shock Resistance (Put in Water)	250	200	280	ΔT °C
	Max Working Temperature	1,500	1,600	1700	°C
Electrical Characteristics	Volume Resistance At 20°C	>10¹⁴	>10¹⁴	>10¹⁴	Ωcm
	Dielectric Strength	15×10⁶	15×10⁶	15×10⁶	V/m
	Dielectric Constant	9	10	10	εr
	One MHZ Dielectric Loss Angle at 20°C	0.0004	0.0002	0.0001	tanδ
Chemical Characteristics	Nitric Acid (60%) 90°C	0.1	0.1	0.05	24H WT Loss mg/cm²
	Sulphuric Acid (95%) 95°C	0.3	0.34	0.22
	Caustic Soda (30%) 80°C	0.9	0.95	0.04

Company overview

Shenzhen Haorui Industrial Technology Co., Ltd. is a professional manufacturer of advanced engineering ceramic components, with 19 years of industry experience since its establishment in June 2006. Haorui specializes in the precision machining of zirconia ceramic and alumina ceramic structural parts, serving demanding applications in the semiconductor and optical fiber communication industries. With in-house CNC machining, precision grinding, fine polishing and strict inspection processes, we are capable of producing high-precision ceramic components with tight tolerances and stable dimensional accuracy. Our engineering ceramic products are widely used in semiconductor equipment, fiber optic fusion splicers, optical fiber alignment systems, microelectronic devices and precision optoelectronic equipment, where material purity, machining accuracy and long-term stability are critical. Haorui supports OEM & ODM customization, accepting CAD / STEP / PDF drawings, and provides reliable solutions from prototype development to mass production. Backed by a complete quality management system and experienced technical team, we deliver zirconia ceramic structural components with excellent wear resistance, low particle generation and high consistency, suitable for cleanroom and precision environments. Over the past 19 years, Haorui has served more than 1,000 customers worldwide and maintained close cooperation with over 30 universities and research institutions, earning a strong reputation for precision, reliability and professional service in the advanced ceramics industry.
