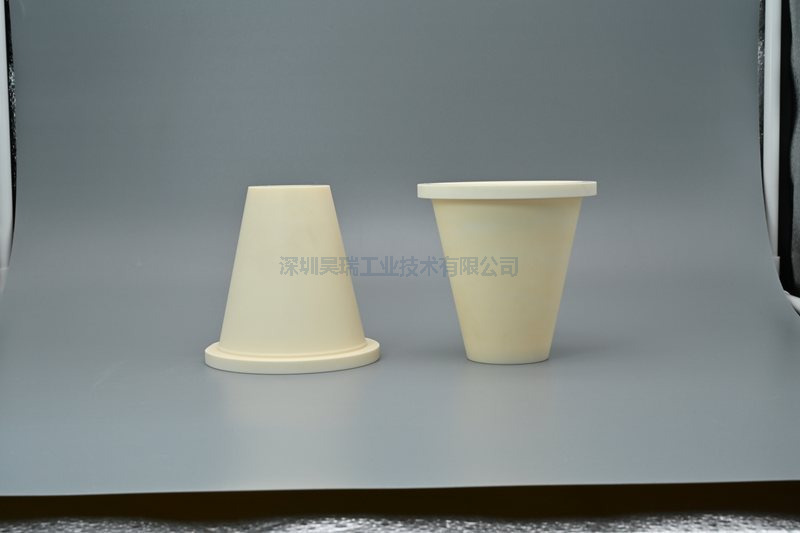

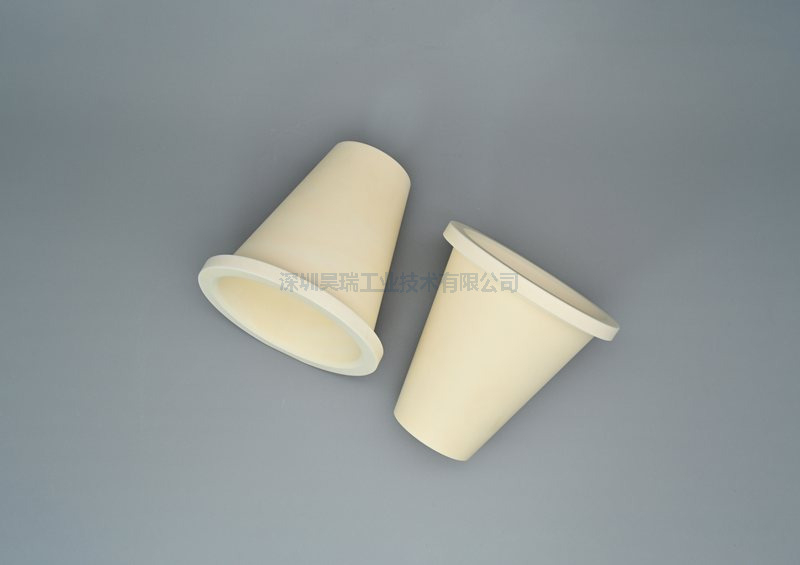

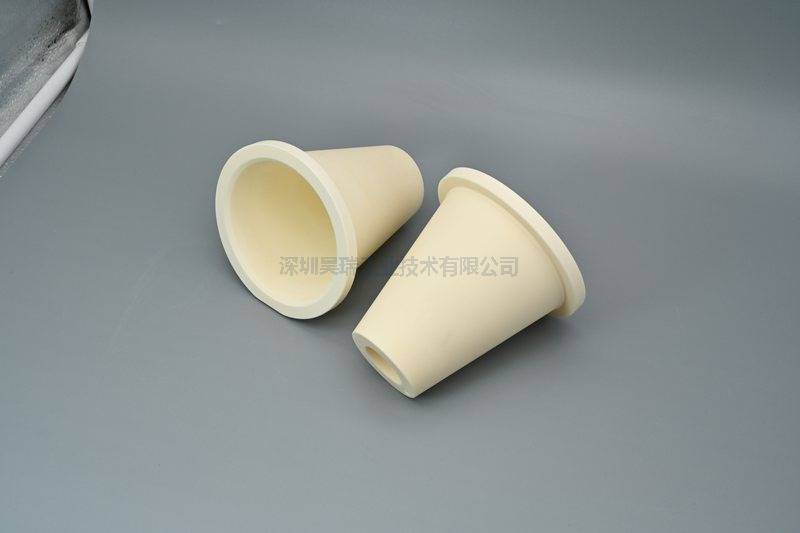

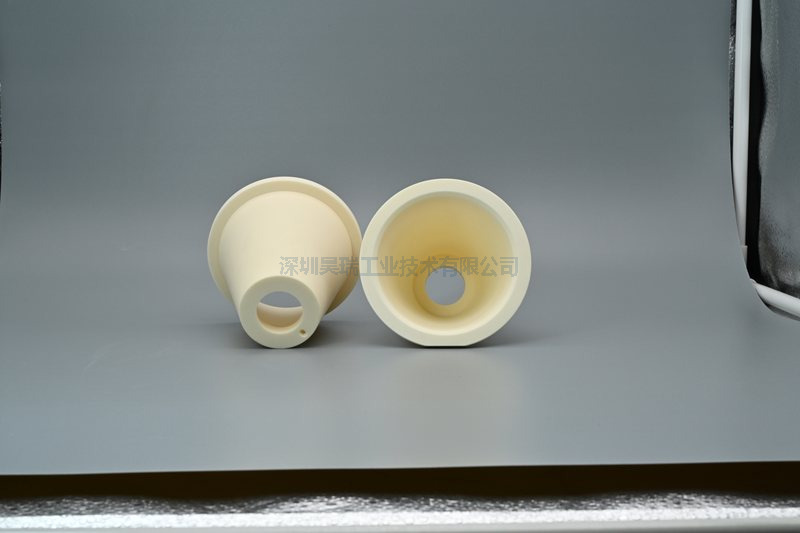

A taper is the simplest self-centering joint there is, and alumina is the material that survives the environment around it. These conical sleeves are ground on the taper surface so the included angle and roundness are accurate along the whole length — the sleeve locates, insulates and centers by wedging, without shims.
Wall thickness, small-end and large-end diameters and taper angle are all specified per drawing. Thin-wall tapered sleeves and solid cones for locating pins are both produced in our plant.
| Material | 95% / 99% Al2O3 alumina ceramic |
|---|---|
| Density | 3.60 – 3.85 g/cm³ |
| Taper angle | Custom (ground) |
| Diameter range | Ø5 – Ø200 mm typical |
| Wall thickness | 1 – 20 mm |
| Roundness | ≤0.01 mm |
| Max. service temperature | 1400 – 1650°C |
Typical values for reference; custom grades and dimensions per drawing.
Locating and centering sleeves in hot equipment
Insulating tapers for electrode and sensor mounts
Wear bushes in abrasive powder handling
High temperature sealing tapers
Semiconductor and PV process fixtures
Haorui Industrial has machined non-standard advanced ceramics since 2006 (ISO 9001). Send us a 2D drawing (PDF/DWG) or a sample: we quote with tolerance and material recommendation, produce 1–10 piece prototypes in 7–15 days, and keep the process data for repeat batches. Materials available: 95% / 99% / 99.5% Al2O3, ZrO2, Si3N4, SiC, AlN, macor.
Ground tapers are held to within ±0.5° of nominal, with roundness ≤0.01 mm along the length.
Yes, down to about 1 mm depending on length and diameter — send the drawing for a feasibility check.
Yes, we produce 1–5 piece prototypes routinely and keep the process data for batch repeatability.
Quality you can verify: Haorui Industrial operates an ISO 9001:2015 certified quality management system (scope: precision mechanical ceramics parts), and our alumina and zirconia ceramics are RoHS 2.0 compliant — tested per IEC 62321 by an accredited third-party laboratory. We exhibit every year at CIOE (China International Optoelectronic Exposition) and semiconductor industry expositions in Shenzhen — visit our booth to see the parts in person.
