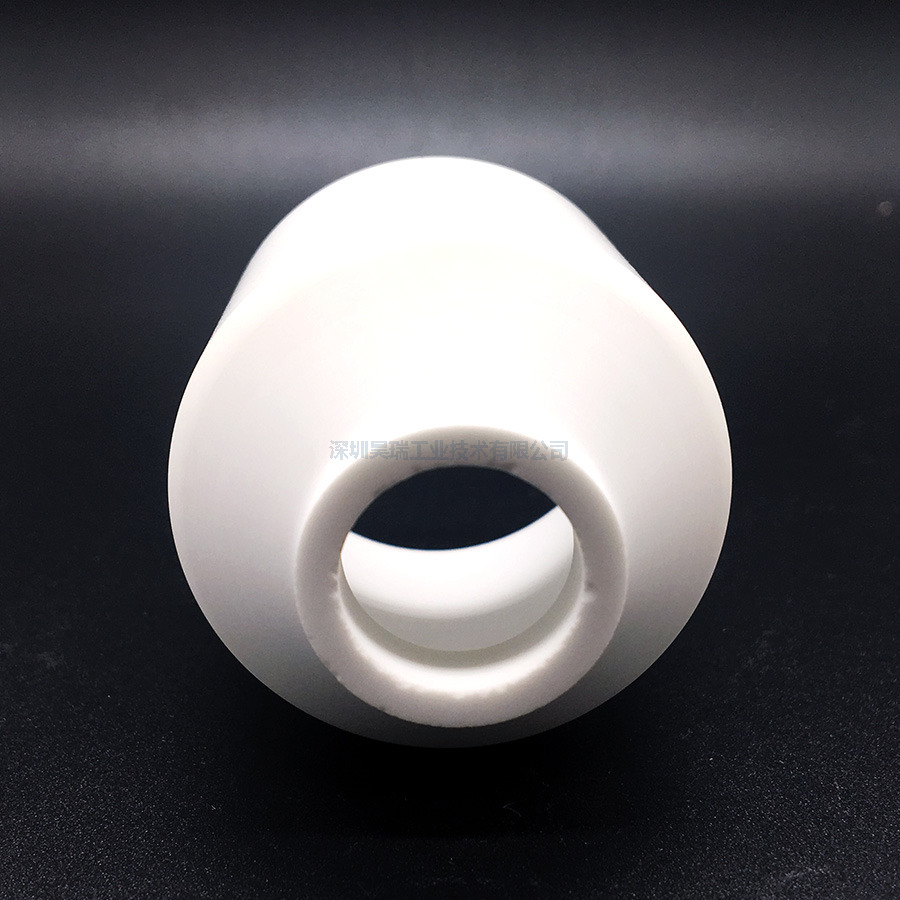

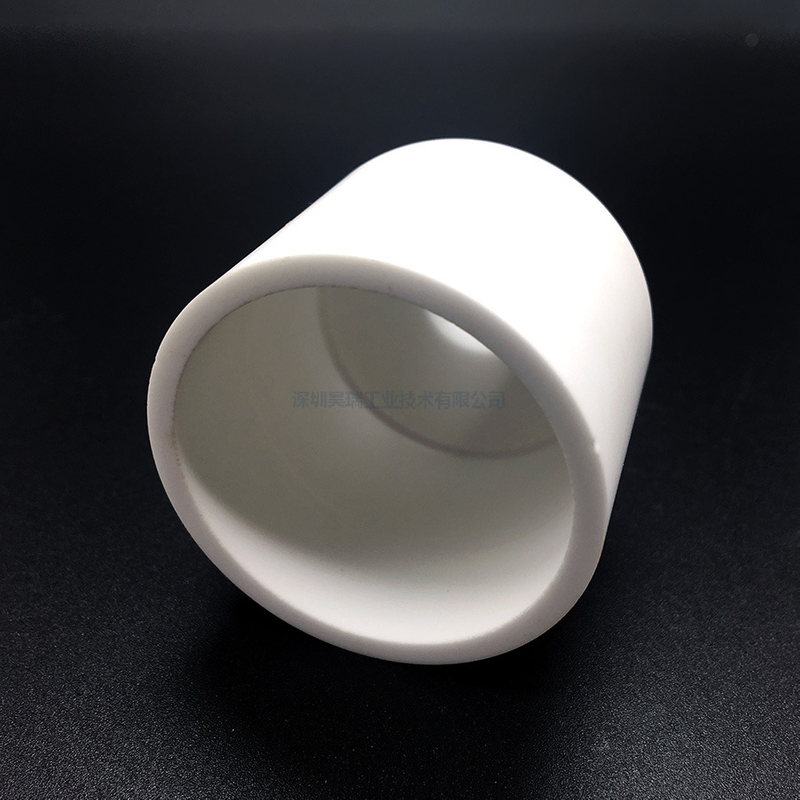

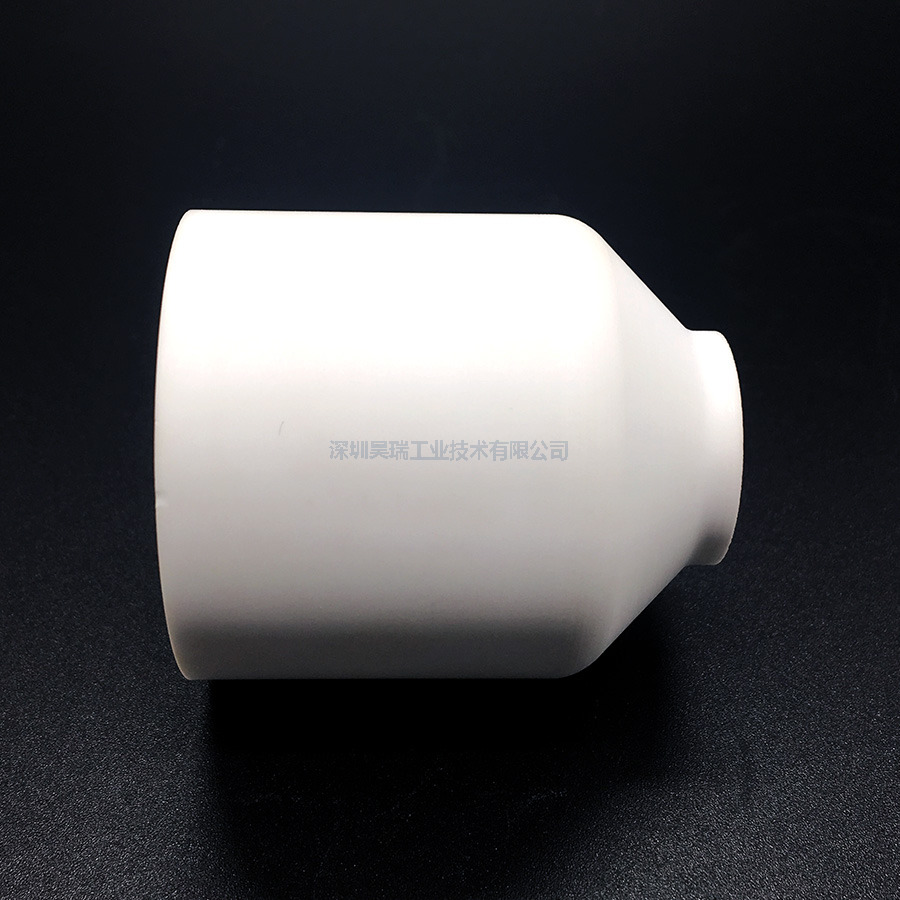

This bottle-shaped part is a hollow ceramic cover in 95% alumina: a deep rounded body with a neck opening that slips over the component it protects. The closed dome shields a sensor tip, electrode or ignition point from direct heat, splash and mechanical contact, while the ceramic wall insulates the live or hot component from everything around it.
Machined and ground from sintered 95% Al2O3, the shape is not limited by a pressing die: dome depth, neck bore, wall thickness and any side holes or slots are produced to drawing, with the neck bore held to ±0.01 mm so the cover seats squarely on its mating part.
| Material | 95% Al2O3 alumina ceramic (99% optional) |
|---|---|
| Density | 3.60 – 3.70 g/cm³ |
| Max. service temperature | 1400°C |
| Dielectric strength | 15 – 20 kV/mm |
| Neck bore tolerance | ±0.01 mm (ground) |
| Wall thickness | 2 – 10 mm typical |
| Dimensions | Per customer drawing or sample |
Typical values for reference; custom grades and dimensions per drawing.
Sensor tip covers in furnaces and hot processes
Ignition and flame-detection electrode shrouds
High temperature lamp and emitter covers
Thermocouple and probe protection caps
Insulating cups for electrical heating assemblies
Haorui Industrial has machined non-standard advanced ceramics since 2006 (ISO 9001). Send us a 2D drawing (PDF/DWG) or a sample: we quote with tolerance and material recommendation, produce 1–10 piece prototypes in 7–15 days, and keep the process data for repeat batches. Materials available: 95% / 99% / 99.5% Al2O3, ZrO2, Si3N4, SiC, AlN, macor.
Yes — side holes, slots and flattened faces are machined after sintering, positioned to your drawing.
For covers and shrouds 95% is the standard choice and more cost-effective; move to 99% only when the part sees extreme temperature or needs maximum density.
Yes — send the sample or a dimensioned sketch; we reproduce dome profile, neck bore and openings and quote from one piece.
