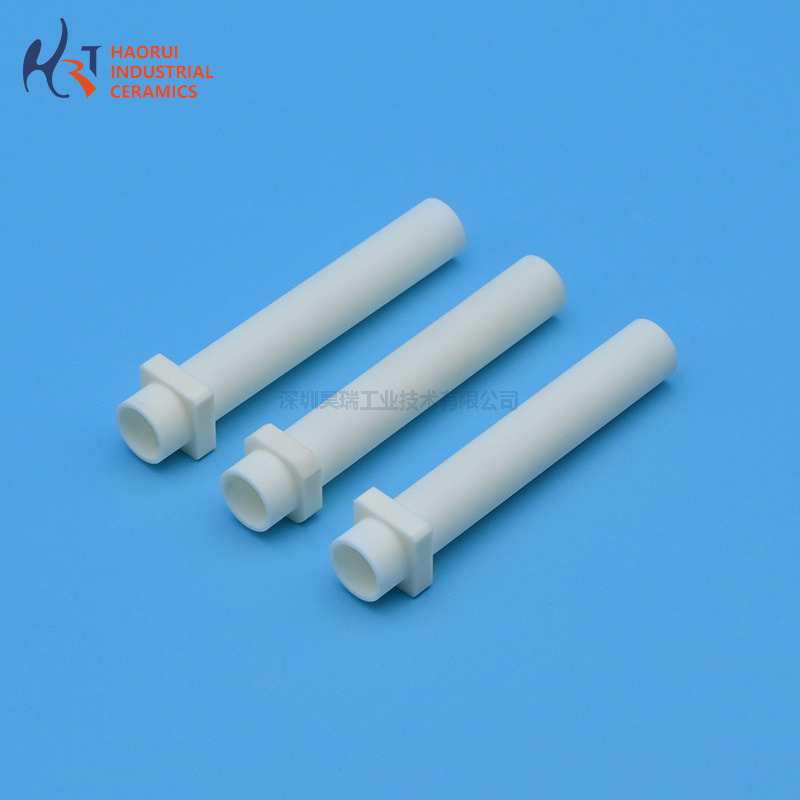

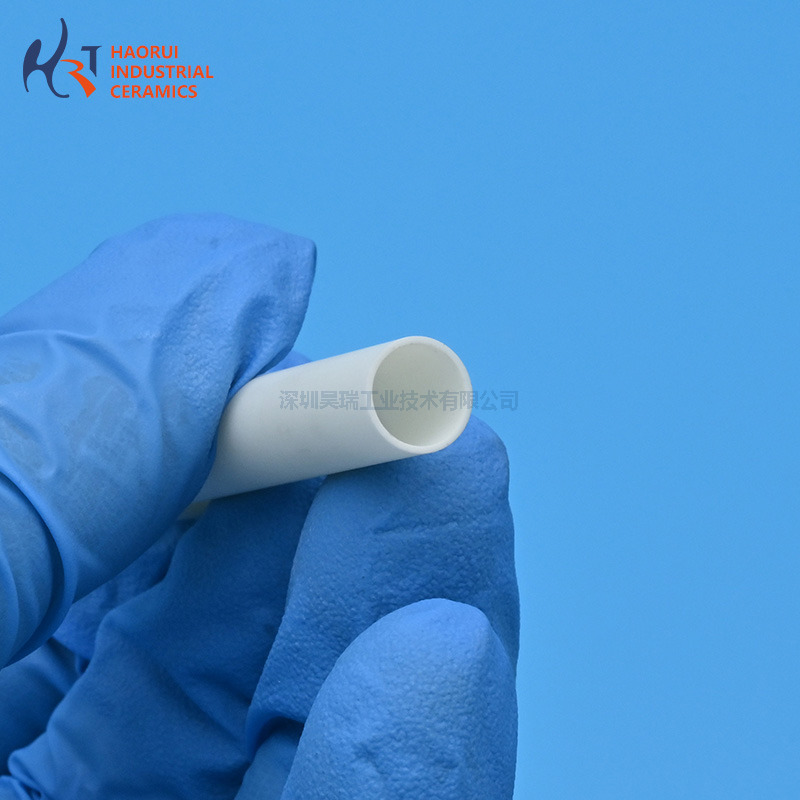

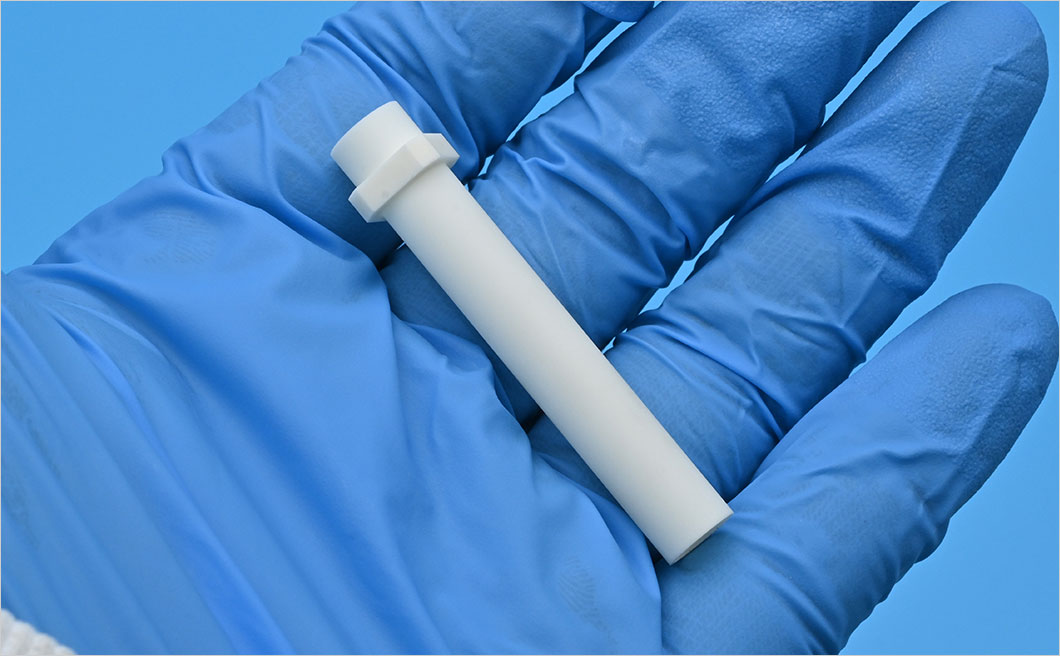

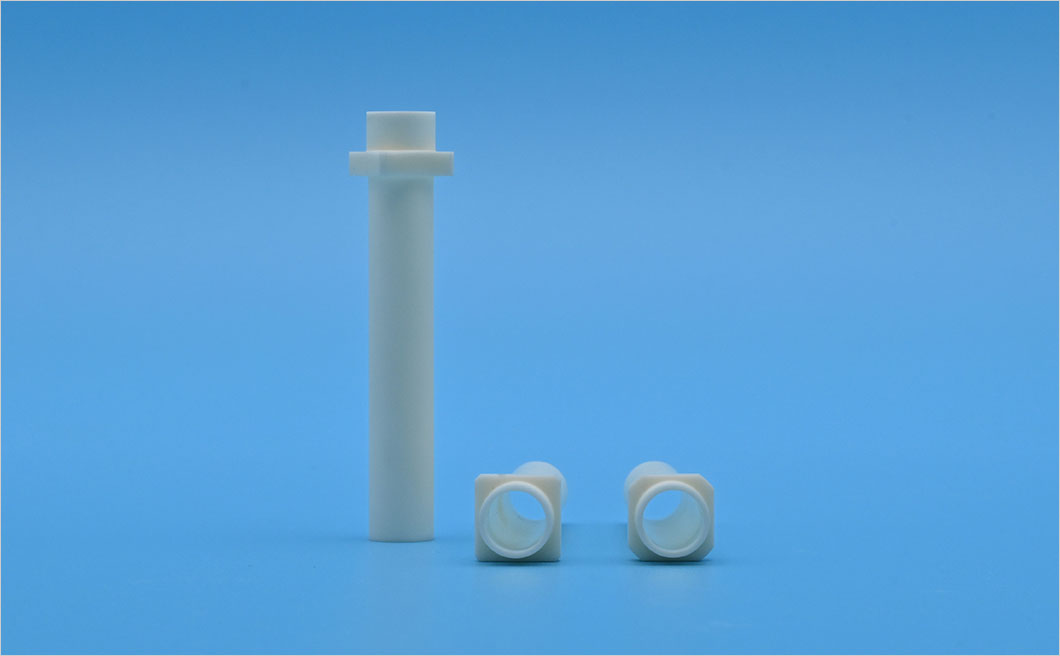

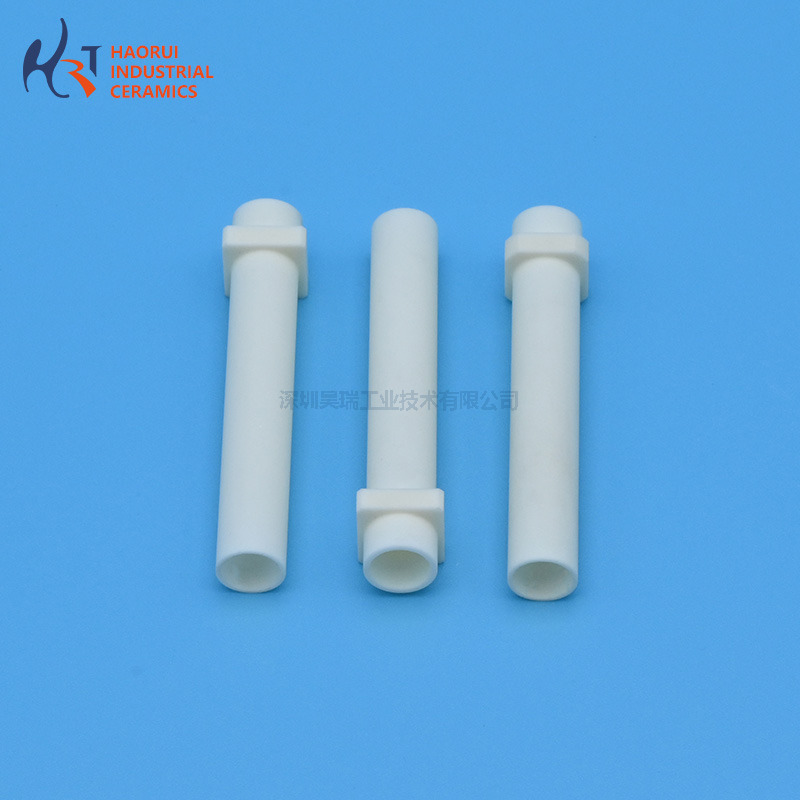

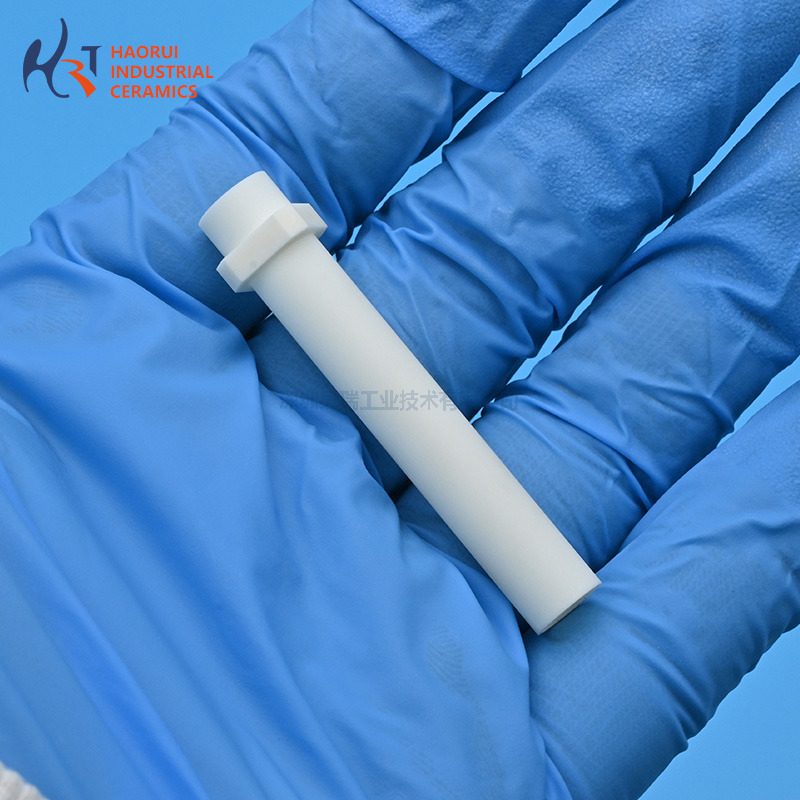

This stepped ceramic sleeve sits between the nozzle and the gun body and does three jobs at once: it blocks heat from reaching the gun body, it isolates the nozzle electrically, and its wear-resistant alumina surface keeps the nozzle positioned even after thousands of hours of abrasive flow.
Because every gun has its own geometry, we machine each sleeve to the customer's drawing — step diameters, concentricity and face distances are all ground, so the sleeve drops into the existing assembly without reworking the metal parts.
| Material | 99% Al2O3 alumina ceramic |
|---|---|
| Density | 3.80 – 3.85 g/cm³ |
| Max. service temperature | 1600°C |
| Concentricity | ±0.01 mm |
| Surface roughness (ground) | Ra ≤ 0.4 μm |
| Hardness | ≈ 1500 HV (Mohs 9) |
| Dimensions | Per customer drawing |
Typical values for reference; custom grades and dimensions per drawing.
Welding and plasma gun nozzle insulation
Spray and coating gun ceramic spacers
Automated dispensing and welding stations
Thermal spray equipment
Any gun-type assembly needing heat + voltage isolation
Haorui Industrial has machined non-standard advanced ceramics since 2006 (ISO 9001). Send us a 2D drawing (PDF/DWG) or a sample: we quote with tolerance and material recommendation, produce 1–10 piece prototypes in 7–15 days, and keep the process data for repeat batches. Materials available: 95% / 99% / 99.5% Al2O3, ZrO2, Si3N4, SiC, AlN, macor.
Yes — send the drawing or the used part, we measure and reproduce it in alumina ceramic, usually with improved concentricity.
Alumina handles repeated nozzle heating cycles well; cracking usually comes from mechanical over-clamping, which we help you avoid with correct fit tolerances.
In hot or abrasive service, alumina typically lasts many times longer because it neither melts, carbonises nor wears round.
