99 Alumina Ceramic Custom Finishing

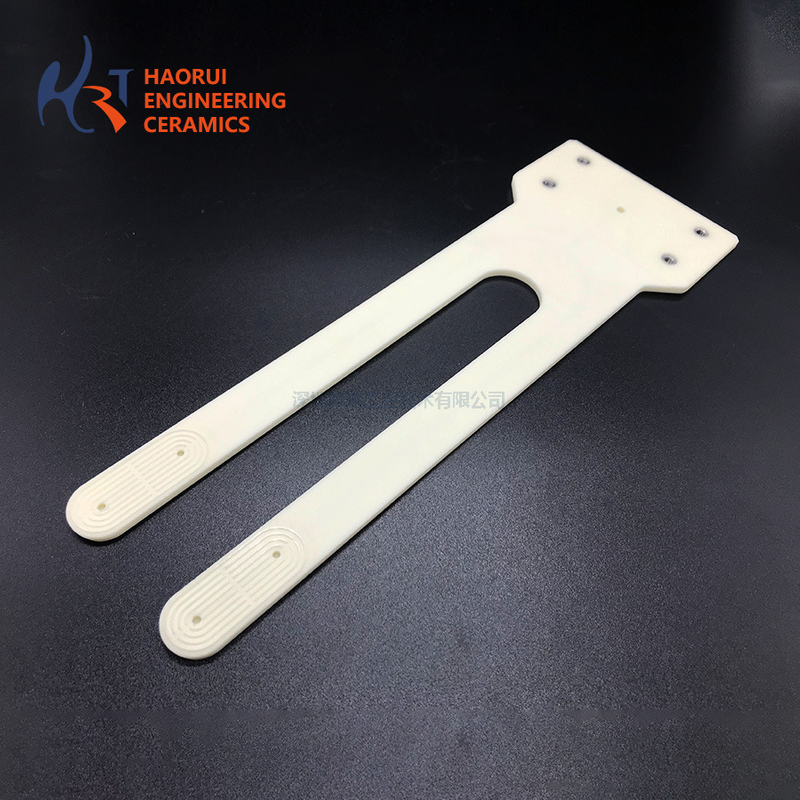

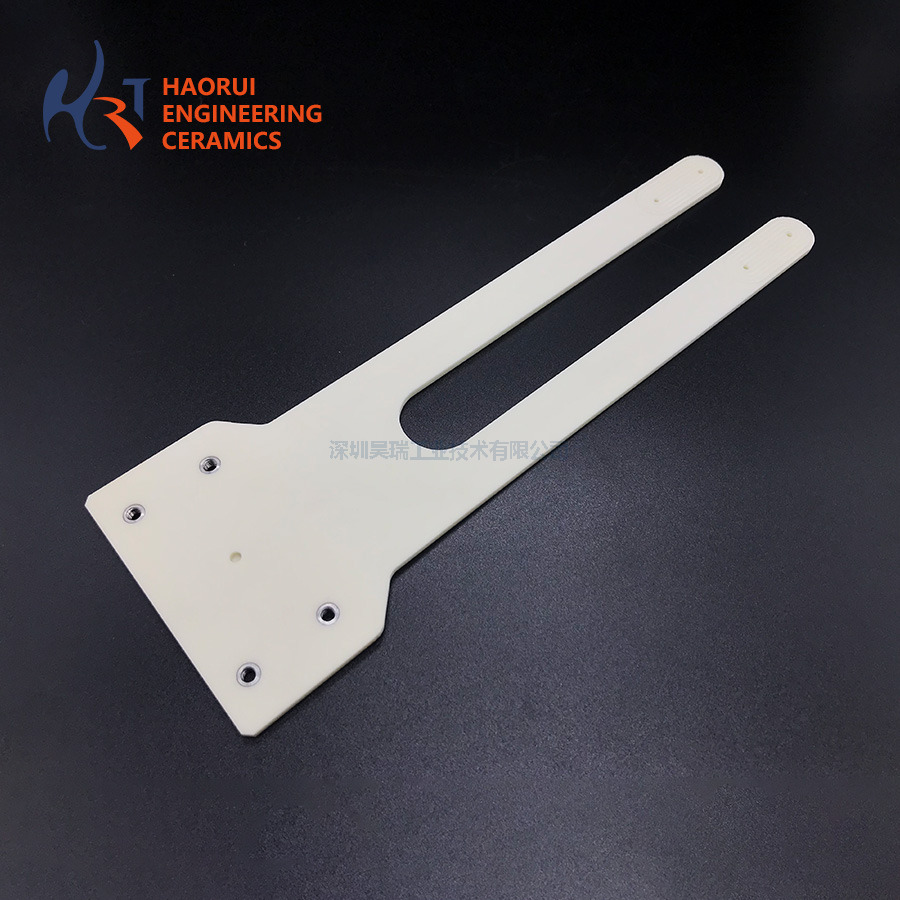

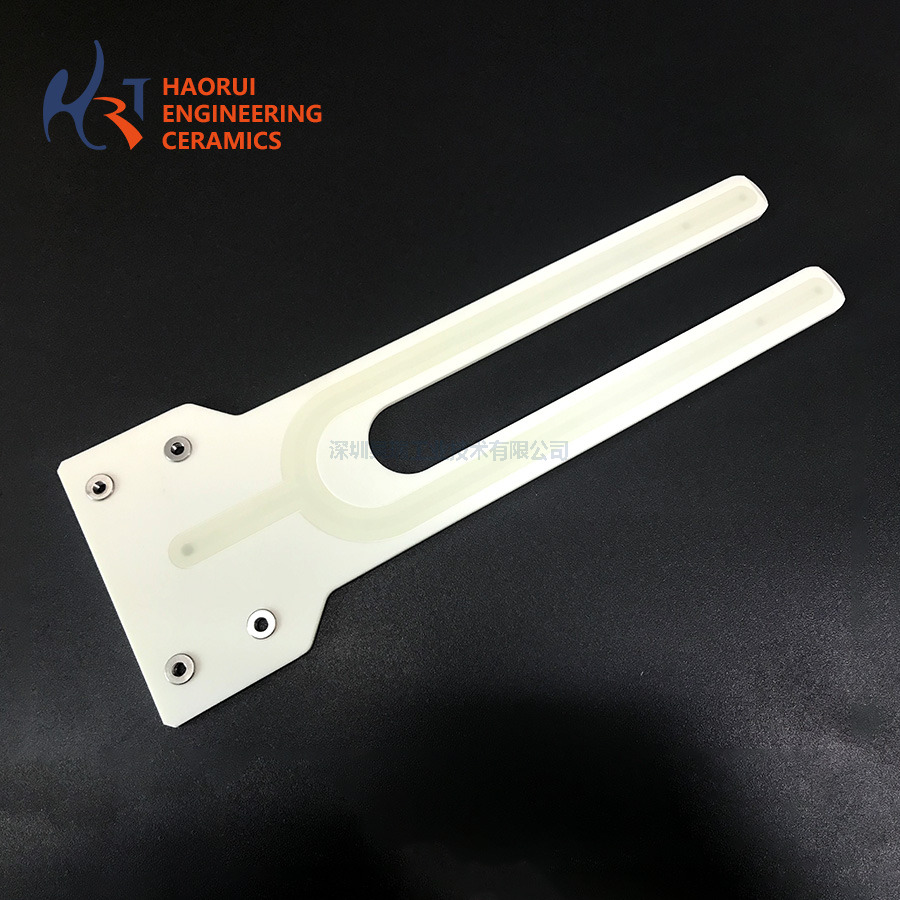

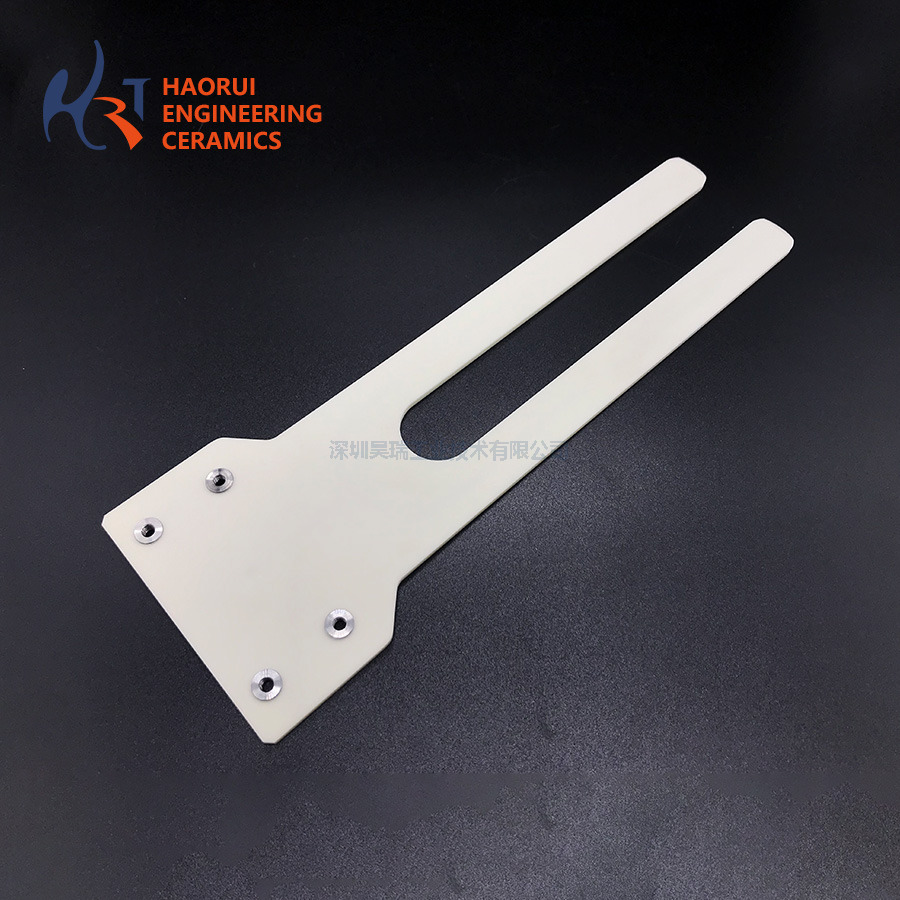

This alumina ceramic fork arm is designed for precision semiconductor wafer transfer applications where dimensional accuracy, cleanliness, and wear resistance are critical.
Manufactured from high-purity Al2O3 ceramics, the component combines:
High mechanical strength
Excellent hardness
Superior electrical insulation
Thermal shock resistance
Chemical stability
Precision CNC machining and fine grinding processes ensure excellent flatness, tight tolerances, and smooth surface quality.
Tolerance capability: ±0.01mm
Fine polished surface
Low friction contact
Reduced particle generation
Stable performance in high-cycle automation systems
Customized dimensions
Multi-slot designs
Vacuum structures
Complex precision ceramic assemblies
Semiconductor equipment compatible structures
Applications include semiconductor wafer handling robots, transfer arms, automation systems, and precision industrial ceramic assemblies.
Properties of Alumina material (Al2O3)
| Property | Item | 95% Al2O3 | 99% Al2O3 | 99.8%Al2O3 | Unit |
| Mechanical Characteristics | Color | White | light yellow | Ivory | |
| Bulk Density | 3.7 | 3.85 | 3.93 | g/cm3 | |
| Water Absorption | 0 | 0 | 0 | % | |
| Bending Strength | 300 | 310 | 370 | MPa | |
| Compressive Trength | 2,300 | 2,400 | 2500 | MPa | |
| Elastic Modulus | 320 | 340 | 390 | GPa | |
| Fracture Toughness | 3~4 | 3~4 | 4 | MPa m1/2 | |
| Weber Coefficient | 12 | 12 | 12 | m | |
| Vickers Hardness | 1,400 | 1,600 | 1850 | HV 0.5 | |
| Thermal Characterics | Coefficient of Line Thermal Expansion | 7~8 | 7~8 | 7~8 | 10-6 K-1 |
| Thermal Conductivity | 20 | 29 | 32 | W/mK | |
| Thermal Shock Resistance (Put in Water) | 250 | 200 | 280 | ΔT °C | |
| Max Working Temperature | 1,500 | 1,600 | 1700 | °C | |
| Electrical Characteristics | Volume Resistance At 20°C | >1014 | >1014 | >1014 | Ωcm |
| Dielectric Strength | 15×106 | 15×106 | 15×106 | V/m | |
| Dielectric Constant | 9 | 10 | 10 | εr | |
| One MHZ Dielectric Loss Angle at 20°C | 0.0004 | 0.0002 | 0.0001 | tanδ | |
| Chemical Characteristics | Nitric Acid (60%) 90°C | 0.1 | 0.1 | 0.05 | 24H WT Loss mg/cm2 |
| Sulphuric Acid (95%) 95°C | 0.3 | 0.34 | 0.22 | ||
| Caustic Soda (30%) 80°C | 0.9 | 0.95 | 0.04 |
