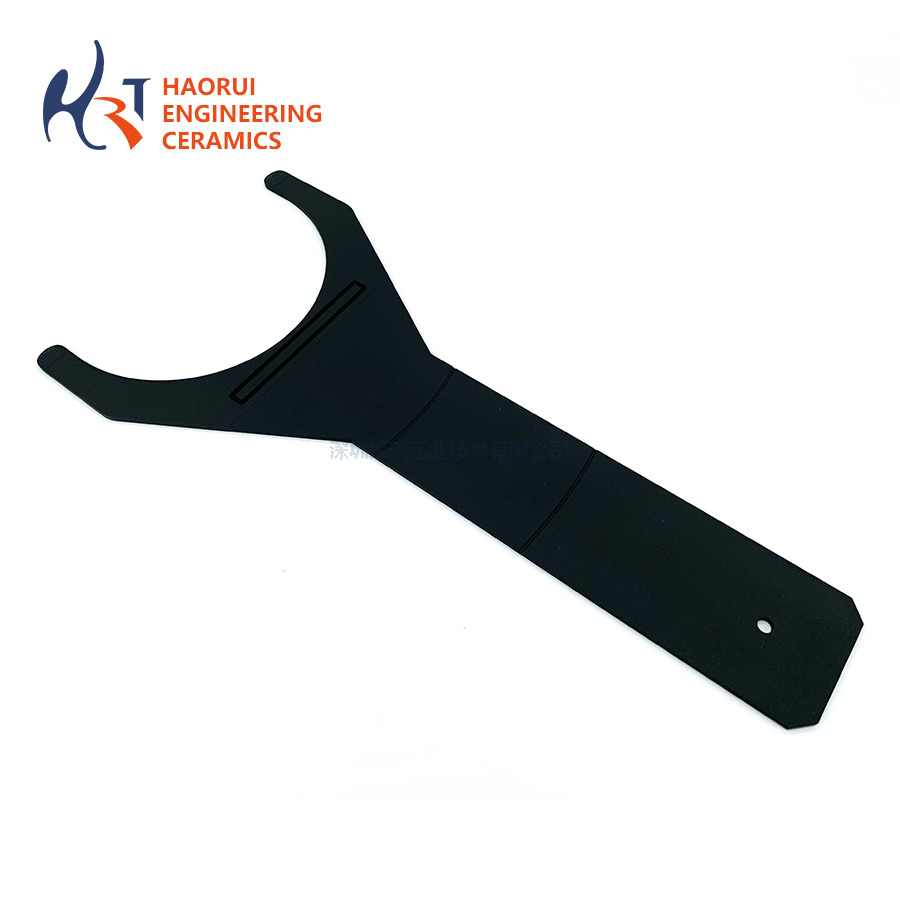

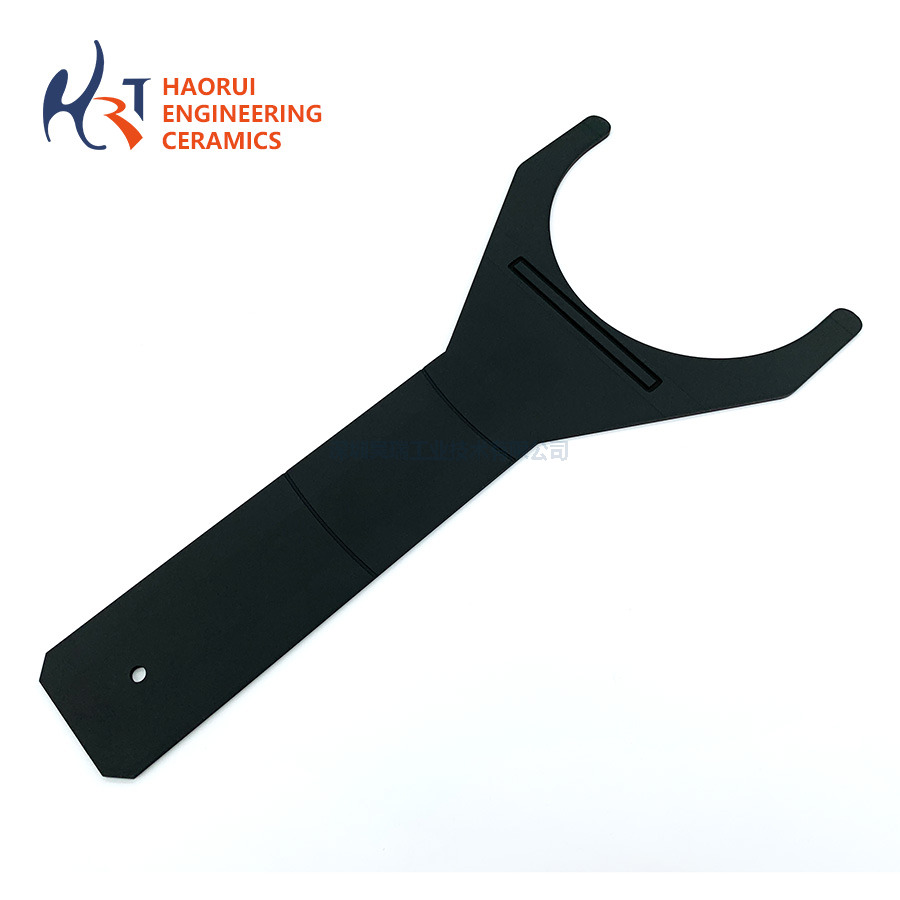

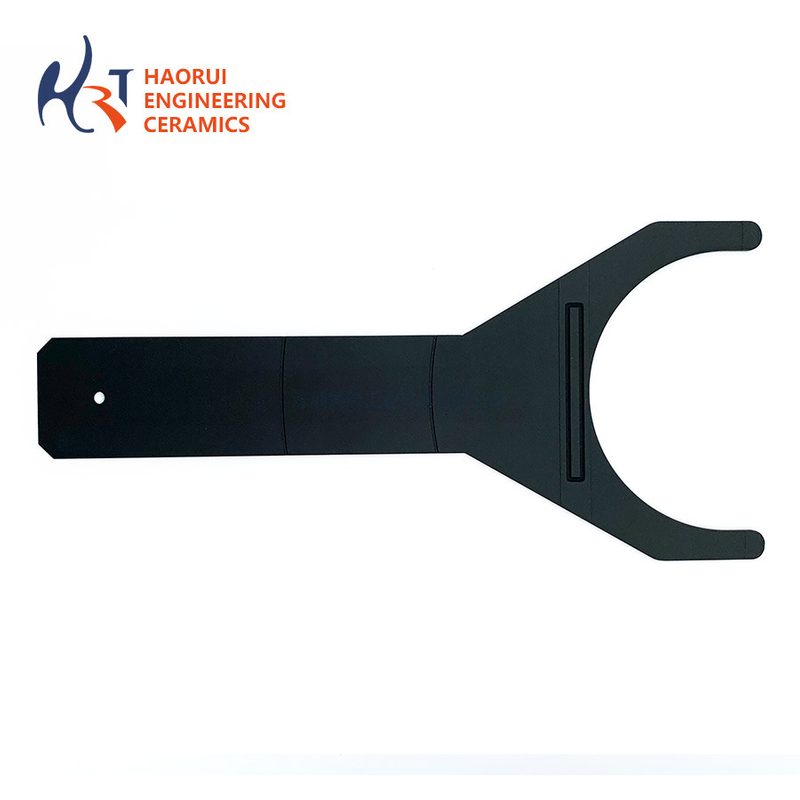

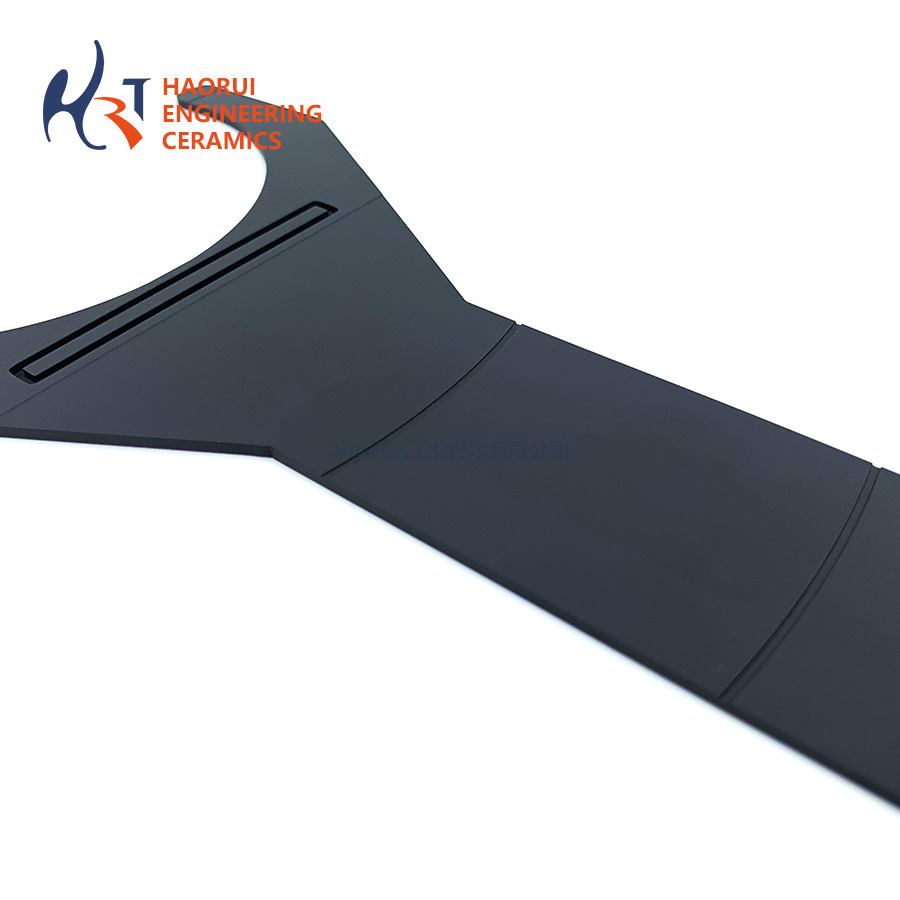

This flat C-shaped arm is machined from matte black alumina — the same hard, insulating Al2O3 ceramic in a low-reflection black grade. The long rigid arm reaches into the equipment, and the C-opening grips or aligns a round component by its rim: one part doing the job of a metal lever plus a separate insulator, without conducting heat or electricity back to the mechanism.
The black surface is not just cosmetic. In optical, semiconductor and inspection equipment a matte black ceramic arm suppresses reflections that white ceramic or polished metal would bounce into sensors and lenses. Every contour — opening diameter, prong width, slot, handle holes and thickness — is ground from sintered blanks to your drawing.
| Material | 95% / 99% black Al2O3 alumina ceramic |
|---|---|
| Density | 3.60 – 3.85 g/cm³ |
| Thickness | 2 – 15 mm typical |
| Flatness | ≤0.05 mm typical, tighter on request |
| Edge / contour tolerance | ±0.05 mm (±0.01 mm on ground features) |
| Max. service temperature | ≈ 1400°C |
| Color / surface | Matte black, as-sintered or ground |
Typical values for reference; custom grades and dimensions per drawing.
Wafer and carrier handling arms in semiconductor equipment
C-shaped clamp and retaining arms for round fixtures
Optical and inspection equipment levers
High temperature alignment and pusher arms
Vacuum and cleanroom tooling
Any flat lever needing insulation + low reflection
Haorui Industrial has machined non-standard advanced ceramics since 2006 (ISO 9001). Send us a 2D drawing (PDF/DWG) or a sample: we quote with tolerance and material recommendation, produce 1–10 piece prototypes in 7–15 days, and keep the process data for repeat batches. Materials available: 95% / 99% / 99.5% Al2O3, ZrO2, Si3N4, SiC, AlN, macor.
Functionally identical Al2O3, but the matte black surface suppresses stray reflections and hides staining — preferred in optical paths and inspection stations.
Yes. Send a 2D drawing (PDF/DWG/DXF) or the used part; we measure and reproduce the full contour including the C-opening and holes.
All edges are lightly chamfered or radiused as specified, so the arm will not chip in service or scratch the parts it touches.
