Custom non-standard alumina (Al2O3) ceramic part · CNC precision machining · OEM / ODM · Hero Ceramic by Haorui Industrial

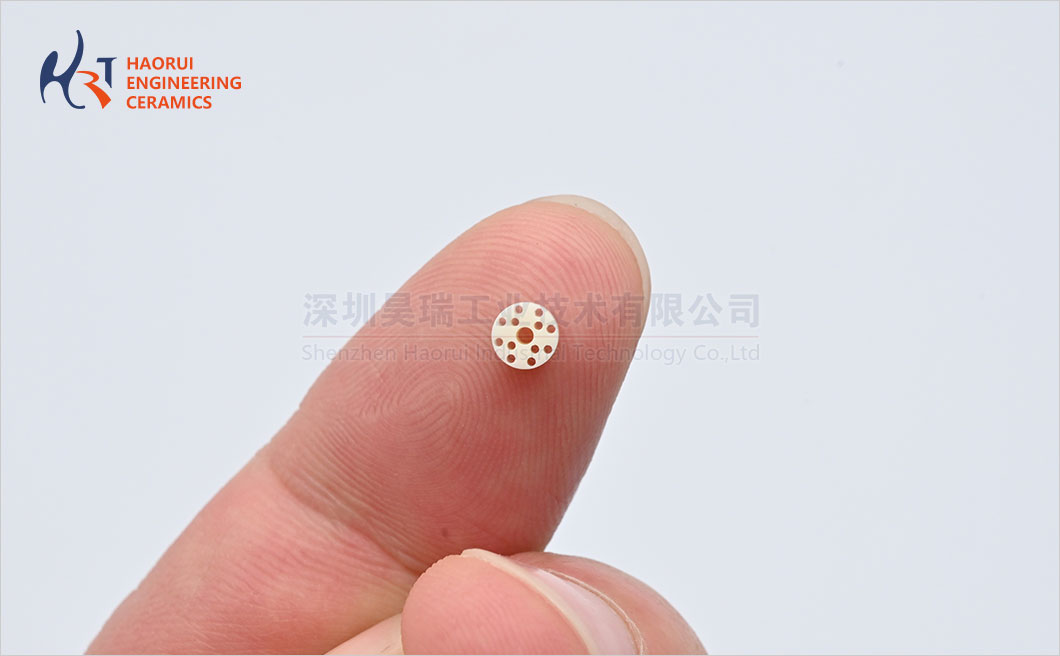

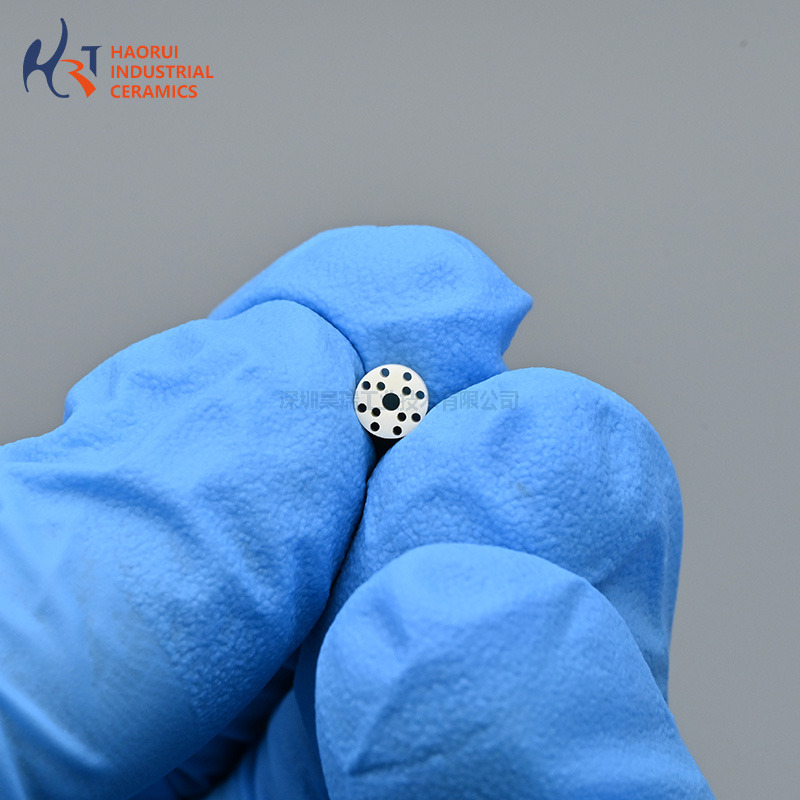

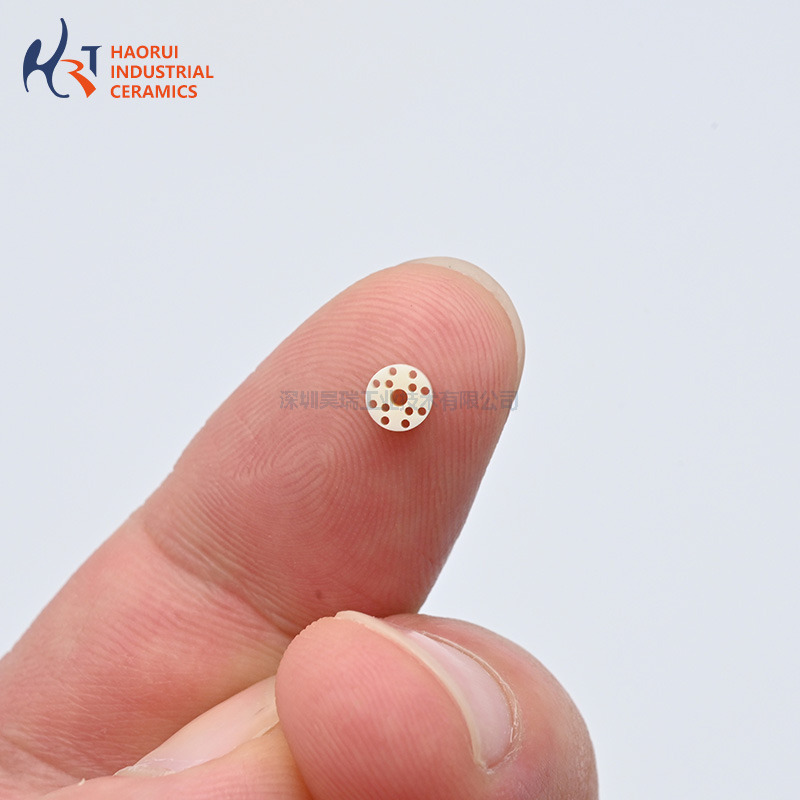

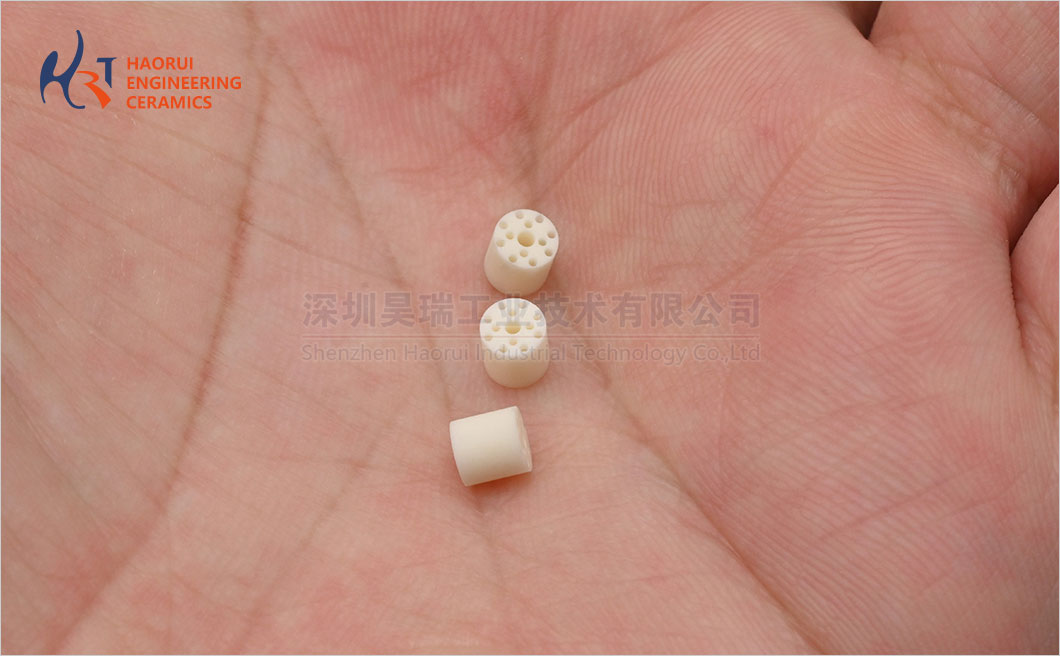

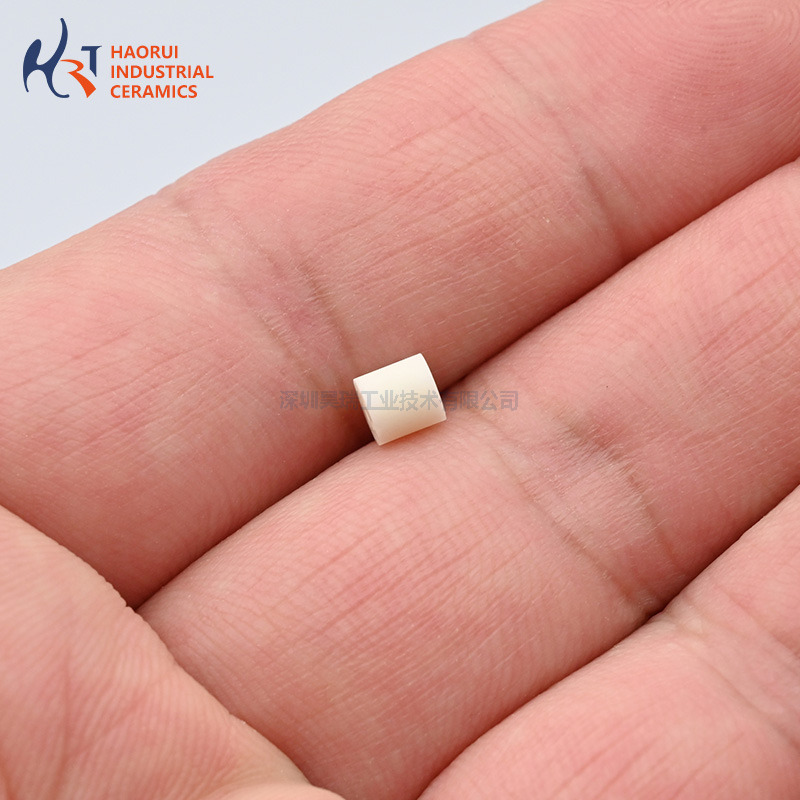

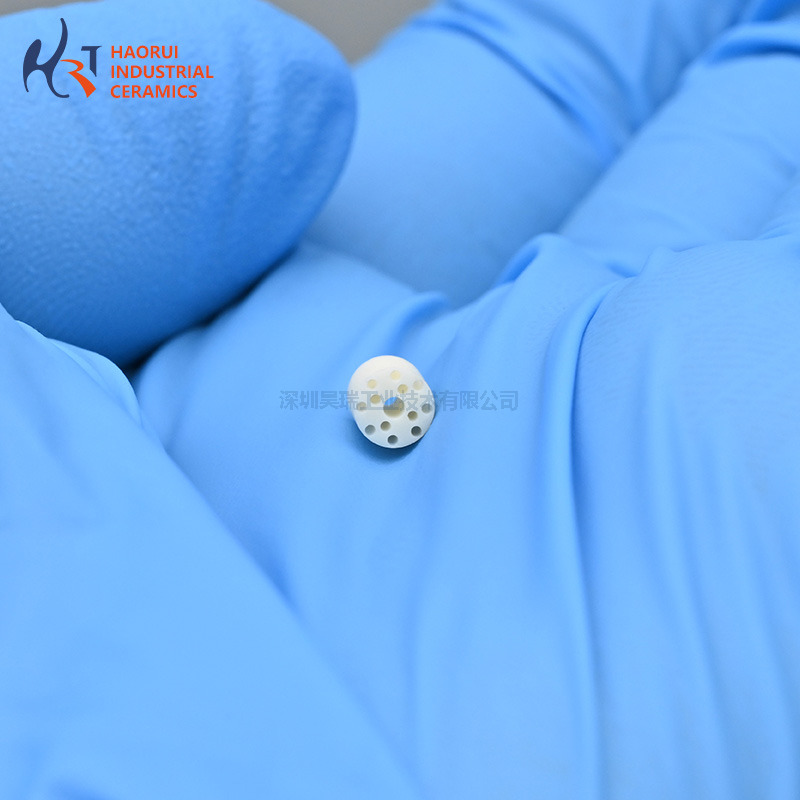

This miniature thermocouple insulating part is machined from 99% high-purity alumina with hole positions and diameters controlled to ±0.01 mm. It keeps the two thermocouple wires separated and positioned while surviving the full temperature of the measurement point — no softening, no shrinkage, no contamination of the signal.

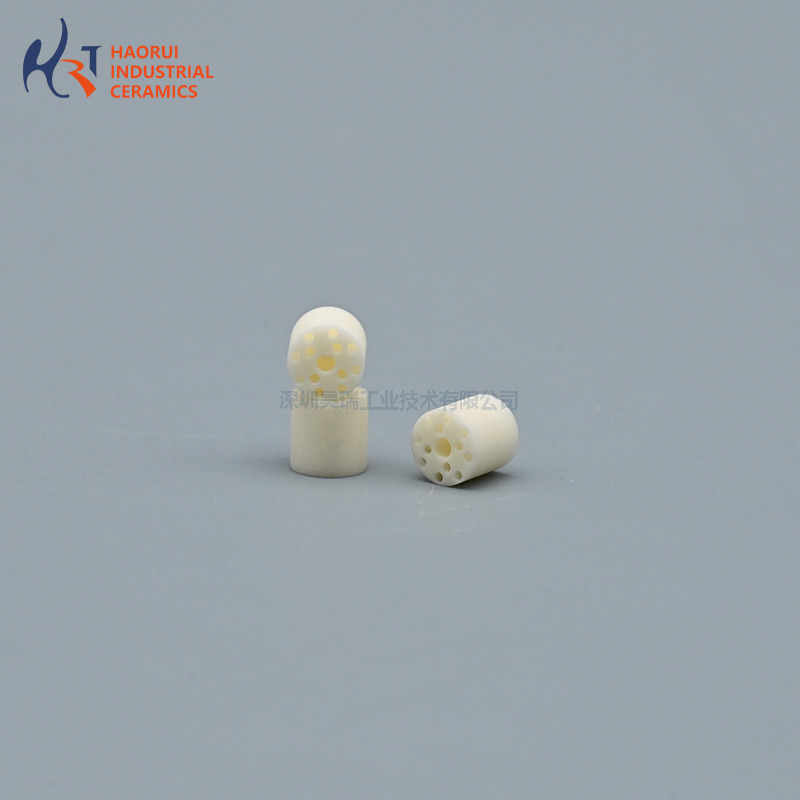

Standard ceramic thermocouple insulators are extruded beads; ours are ground from solid alumina, so multi-hole patterns, offset bores, flanges, notches and miniature features that extrusion cannot produce are all possible. Parts down to a few millimetres with sub-millimetre holes are routine for our micro-machining cell.
| Material | 99% Al2O3 (95% optional for cost-sensitive uses) |
|---|---|
| Density | 3.80 – 3.85 g/cm³ |
| Max. service temperature | 1600°C |
| Hole diameter (min.) | Ø0.3 mm |
| Hole position tolerance | ±0.01 mm (ground) |
| Volume resistivity (20°C) | > 10^14 Ω·cm |
| Thermal expansion (20–1000°C) | 7.5 – 8.0 ×10⁻⁶ /K |
Typical values for reference; custom grades and dimensions per drawing.
Thermocouples for furnaces, kilns and heat treatment
Temperature sensors in semiconductor and PV equipment
Vacuum and inert-atmosphere heating systems
Laboratory and calibration instruments
Battery and new-energy production lines
Haorui Industrial has machined non-standard advanced ceramics since 2006 (ISO 9001). Send us a 2D drawing (PDF/DWG) or a sample: we quote with tolerance and material recommendation, produce 1–10 piece prototypes in 7–15 days, and keep the process data for repeat batches. Materials available: 95% / 99% / 99.5% Al2O3, ZrO2, Si3N4, SiC, AlN, macor.
Any pair that fits the bore — K, S, R, B, N types. Tell us the wire diameter and spacing and we will match the hole pattern.
Yes. We grind parts a few millimetres across with Ø0.3–0.5 mm holes; send the drawing for a feasibility check.
Yes. 95% Al2O3 lowers cost slightly with a small reduction in max temperature and insulation resistance; 99% is recommended above 1500°C.

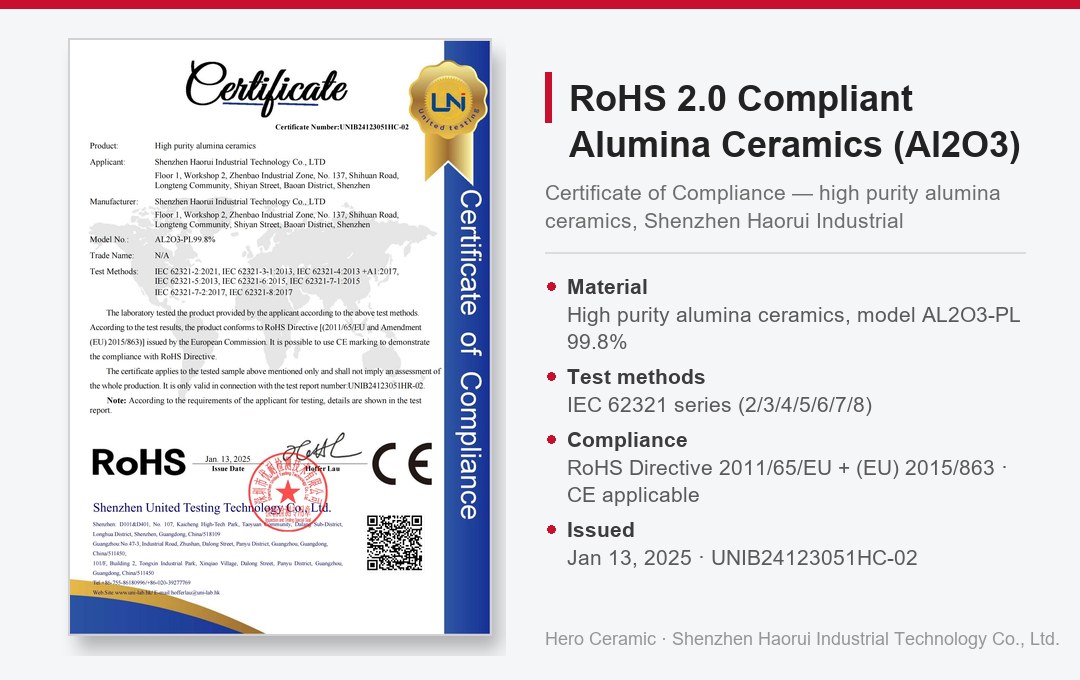

Quality you can verify: Haorui Industrial operates an ISO 9001:2015 certified quality management system (scope: precision mechanical ceramics parts), and our alumina and zirconia ceramics are RoHS 2.0 compliant — tested per IEC 62321 by an accredited third-party laboratory. We exhibit every year at CIOE (China International Optoelectronic Exposition) and semiconductor industry expositions in Shenzhen — meet us at our booth to see the parts in person.
