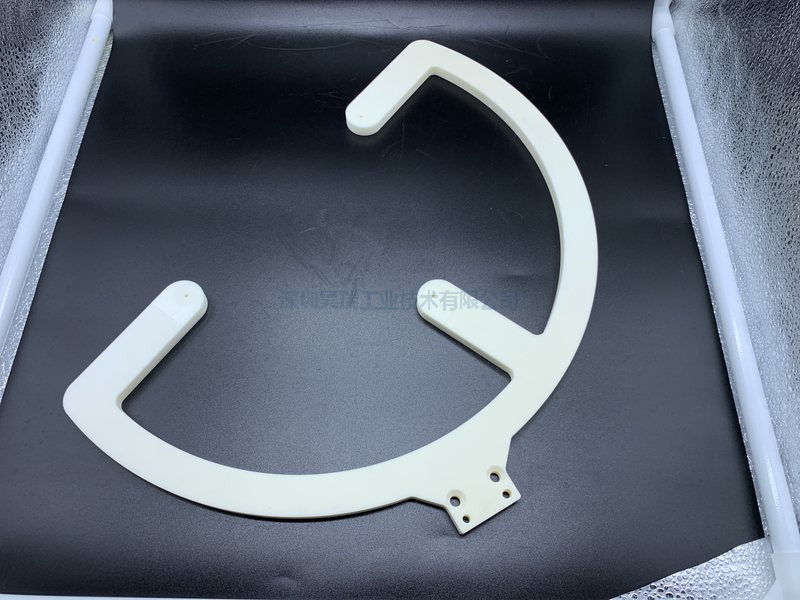

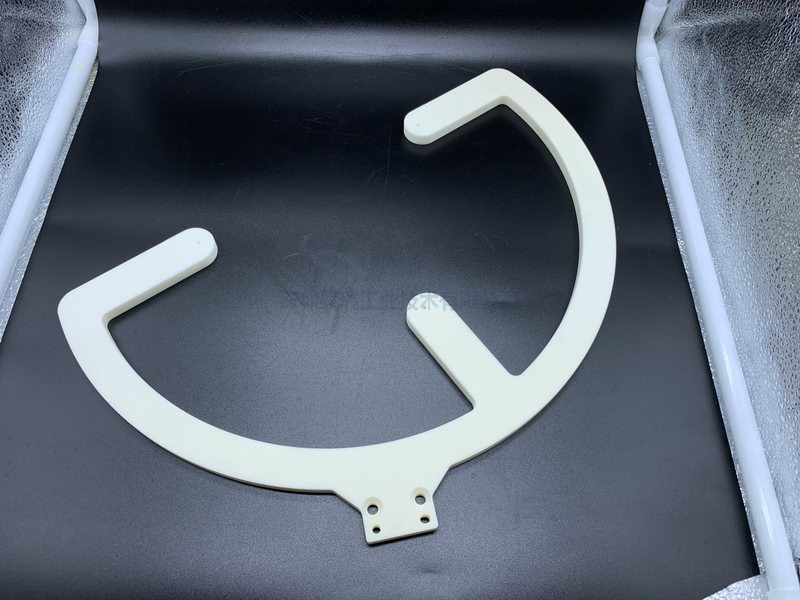

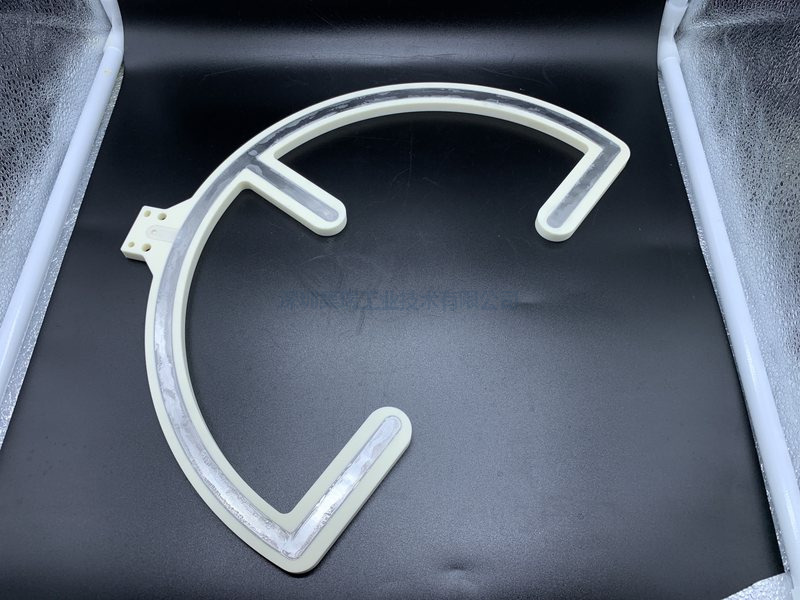

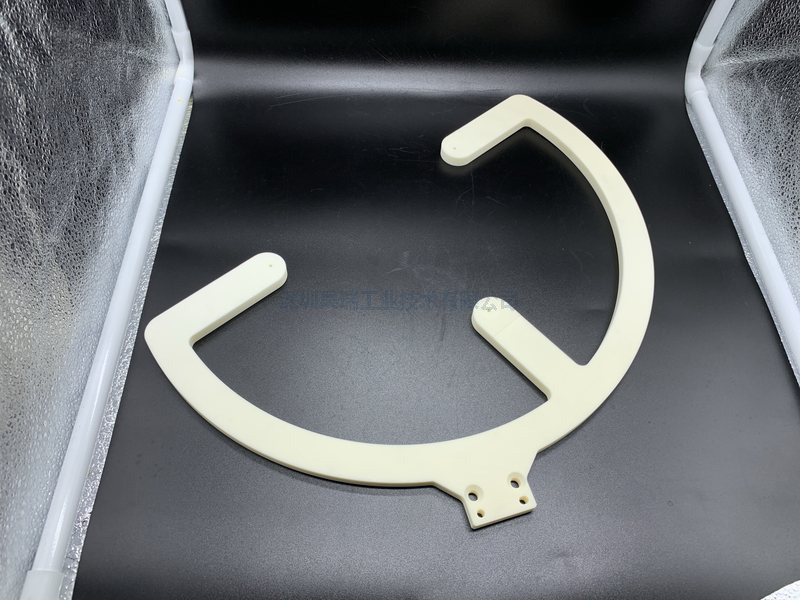

This C-shaped ring wraps around a tube, pipe or round housing without disassembling the machine — it springs over the component through its open gap, and the two flat mounting tabs with screw holes bolt it closed again. In alumina ceramic it works as an insulating clamp band: it holds, positions or shields a hot or live round part while staying cool to the machine structure and isolated from the process.
The flat strip profile is ground from sintered alumina, so ring diameter, strip width, gap angle, tab position and screw holes all follow your drawing. Lightweight open-ring construction keeps the added mass small — important for moving and rotating assemblies.
| Material | 95% / 99% Al2O3 alumina ceramic |
|---|---|
| Density | 3.60 – 3.85 g/cm³ |
| Ring diameter | Ø20 – Ø500 mm typical |
| Strip width / thickness | 5 – 60 mm / 2 – 10 mm typical |
| Gap angle | Custom (30° – 120° typical) |
| Hole tolerance | ±0.01 mm (ground) |
| Max. service temperature | 1400 – 1600°C |
Typical values for reference; custom grades and dimensions per drawing.
Insulating clamp bands for heating tubes and nozzles
Sensor and probe mounting collars
Retention rings for ceramic and quartz tubes
High temperature equipment fixtures
Vacuum and plasma chamber assemblies
Round-component positioning in corrosive media
Haorui Industrial has machined non-standard advanced ceramics since 2006 (ISO 9001). Send us a 2D drawing (PDF/DWG) or a sample: we quote with tolerance and material recommendation, produce 1–10 piece prototypes in 7–15 days, and keep the process data for repeat batches. Materials available: 95% / 99% / 99.5% Al2O3, ZrO2, Si3N4, SiC, AlN, macor.
Alumina is rigid, not springy — the open gap is sized so the ring slides over without meaningful flexing. Tell us the installation method and we set the gap accordingly.
Yes, counterbores, slots and multiple tabs are machined to match your screws and torque.
Ring inner diameter, strip width and thickness, gap angle and tab drawing — or a photo with rough dimensions to start.
Quality you can verify: Haorui Industrial operates an ISO 9001:2015 certified quality management system (scope: precision mechanical ceramics parts), and our alumina and zirconia ceramics are RoHS 2.0 compliant — tested per IEC 62321 by an accredited third-party laboratory. We exhibit every year at CIOE (China International Optoelectronic Exposition) and semiconductor industry expositions in Shenzhen — visit our booth to see the parts in person.
