02A027
HaoRui
02A026

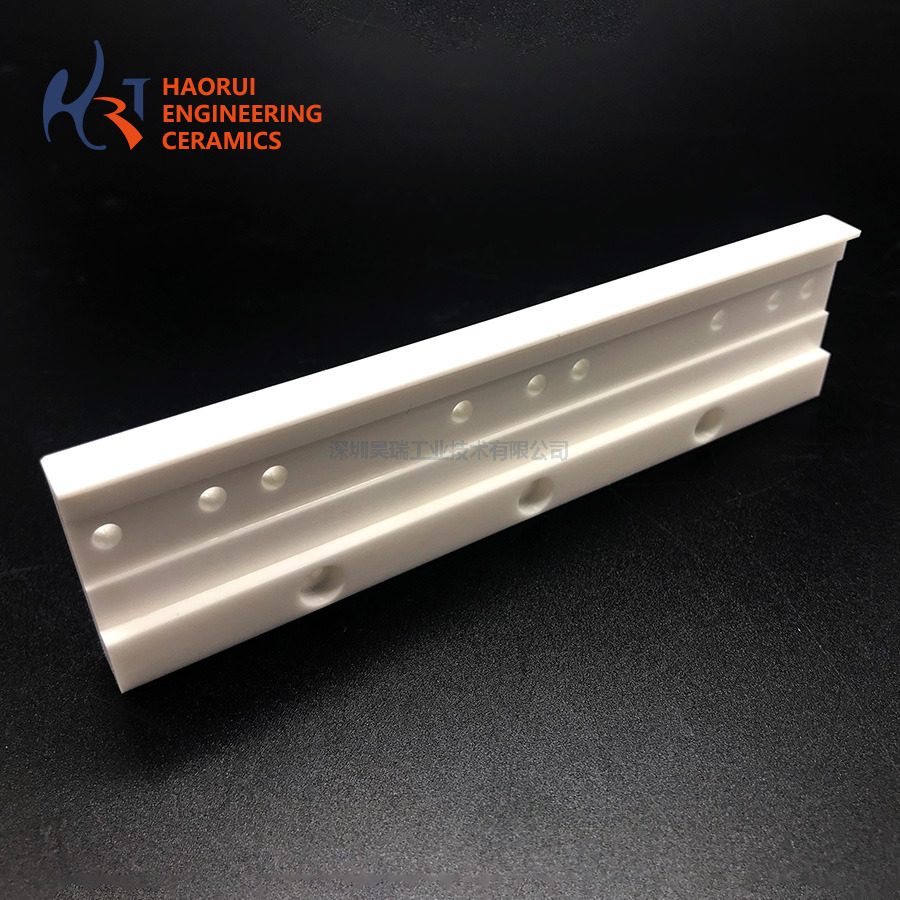

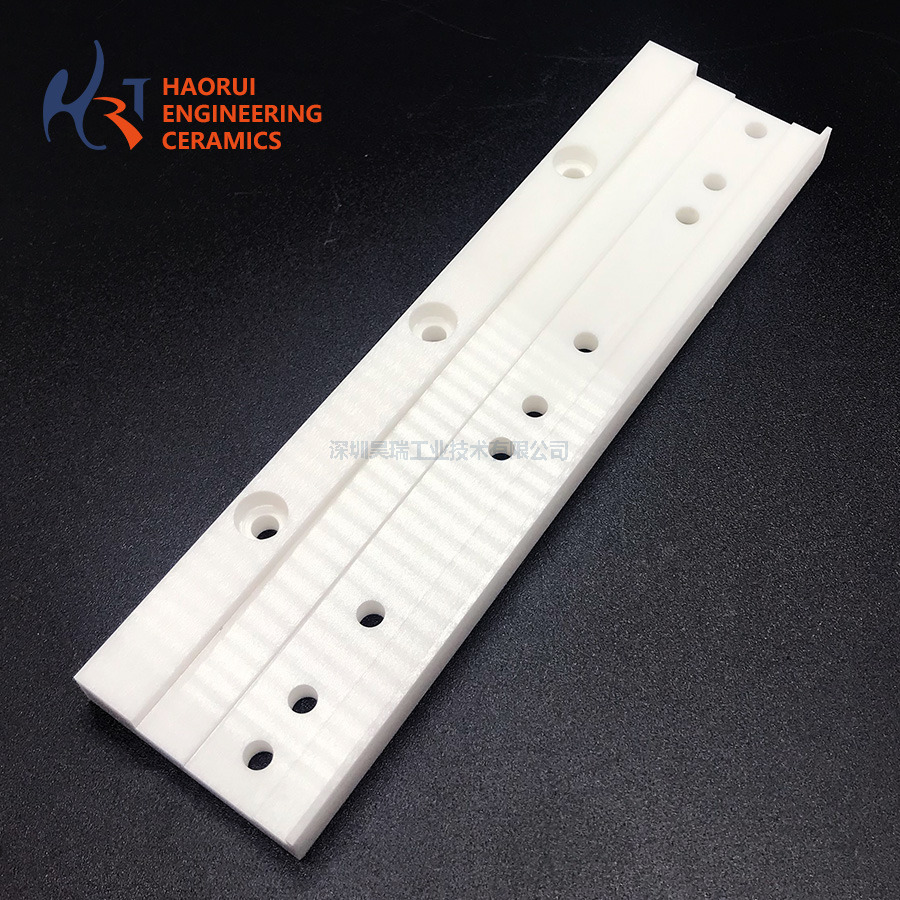

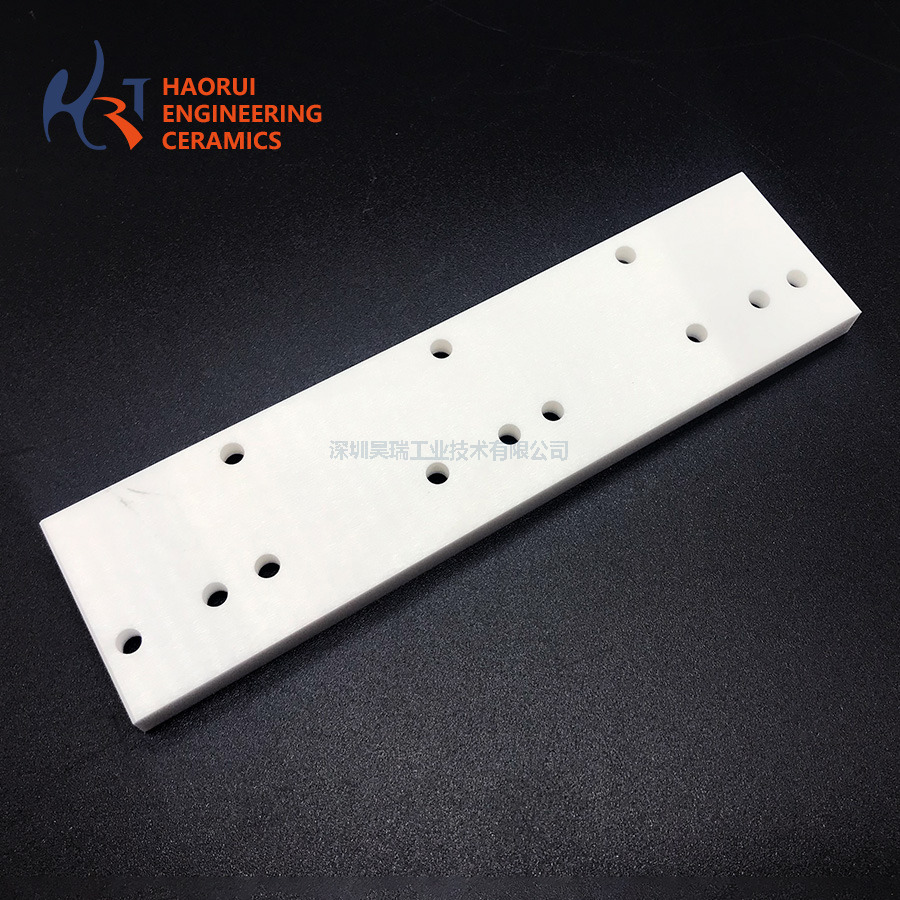

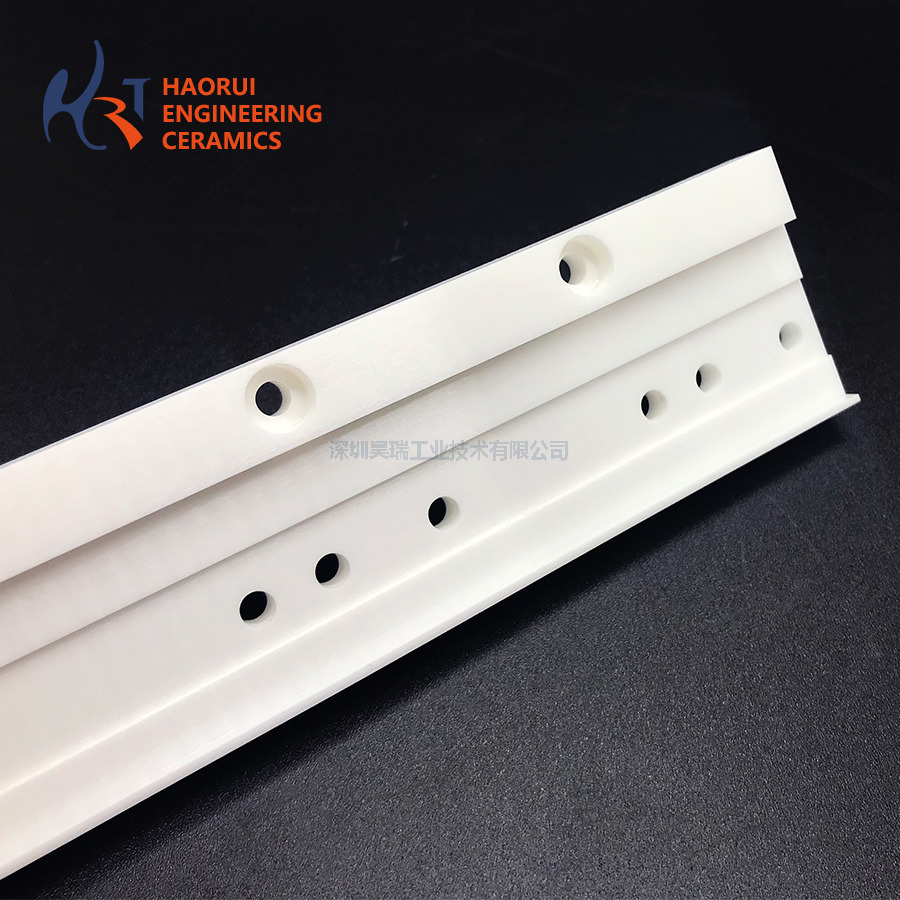

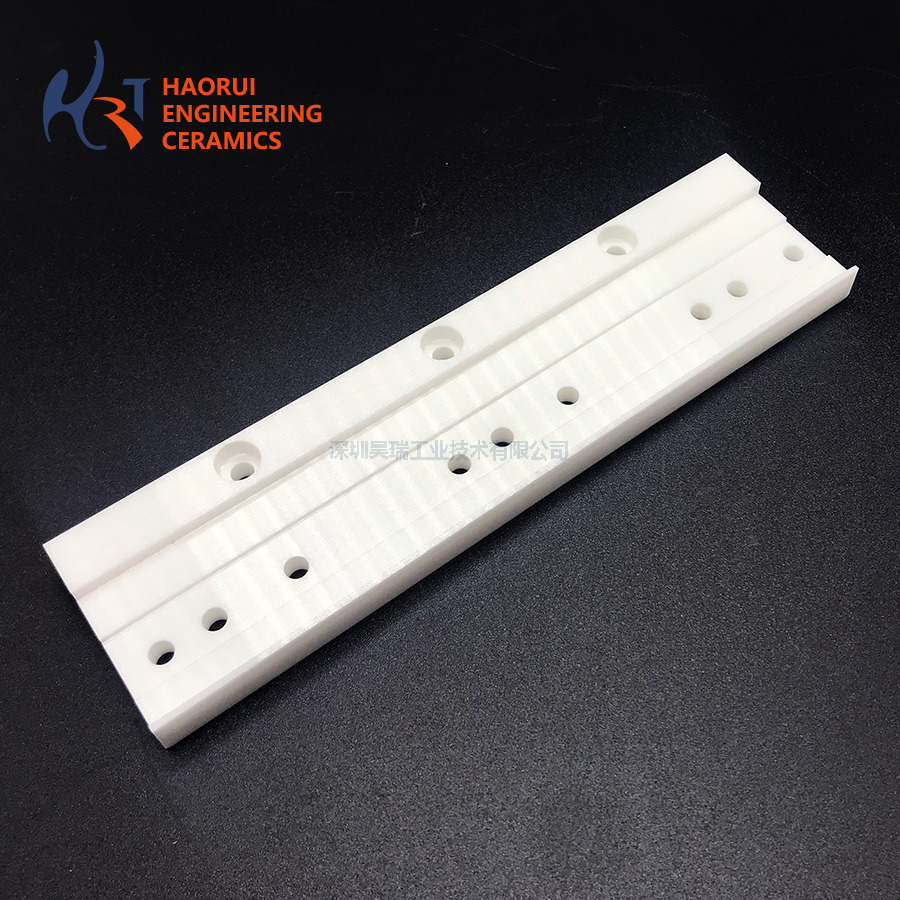

Multi-hole and slot patterns drilled to a repeatable pitch
Straightness maintained along the full length
Rigid ceramic body (200 GPa) resists bowing in long spans
Non-conductive and non-magnetic for instrument frames
Any length, profile and hole pattern to drawing
Instrument and machine frames
Semiconductor tool mounting rails
Optical bench and laser alignment rails
Textile and wire guides
Sensor mounting strips
| Property | Item | 3Y-TZP White / Black | Mg-PSZ Gold yellow | Nano 3Y-TZP Blue |
|---|---|---|---|---|
| Mechanical | Colour | Ivory / Black | Gold yellow | Nano blue |
| Density | 6.02 g/cm3 | 5.7 g/cm3 | 6.01 g/cm3 | |
| Bending strength | 800 MPa | 450 MPa | 1200 MPa | |
| Compressive strength | 3000 MPa | 2500 MPa | 3000 MPa | |
| Elastic modulus | 200 GPa | 250 GPa | 220 GPa | |
| Fracture toughness | 8 MPa m1/2 | 6-7 MPa m1/2 | 14 MPa m1/2 | |
| Weibull coefficient | 15 m | 12 m | 25 m | |
| Vickers hardness | 1200 HV0.5 | 1100 HV0.5 | 1200 HV0.5 | |
| Thermal | Coeff. of linear thermal expansion | 10 x10-6/K | 10 x10-6/K | 10 x10-6/K |
| Thermal conductivity | 3 W/mK | 3 W/mK | 2 W/mK | |
| Thermal shock resistance | 300 dT degC | 450 dT degC | 300 dT degC | |
| Max working temperature | 1000 degC | 2100 degC | 1000 degC | |
| Electrical | Volume resistance at 20degC | >10^13 Ohm cm | >10^14 Ohm cm | >10^13 Ohm cm |
Standard properties of the zirconia grades we machine. Tolerances, surface finish and part-specific dimensions are made to your drawing.
Send a drawing (STEP / DXF / PDF) or a sample - we quote from either.
Material: white 3Y-TZP, anti-static black 3Y-TZP, nano-tough blue 3Y-TZP or yellow Mg-PSZ.
Tolerance: +/-0.01 mm typical, down to +/-0.005 mm on critical dimensions.
Finishing: as-machined, diamond-ground, lapped or mirror-polished.
Prototype and small batch orders accepted; production quantities supplied with inspection report on request.
Quality you can verify: Haorui Industrial operates an ISO 9001:2015 certified quality management system (scope: production and sales of precision mechanical ceramics parts), and our yttria-stabilized zirconia ceramics are RoHS 2.0 compliant - tested per IEC 62321 by an accredited third-party laboratory (Shenzhen United Testing). We exhibit every year at CIOE (China International Optoelectronic Exposition) and semiconductor industry expositions in Shenzhen - visit our booth to see the parts in person.
