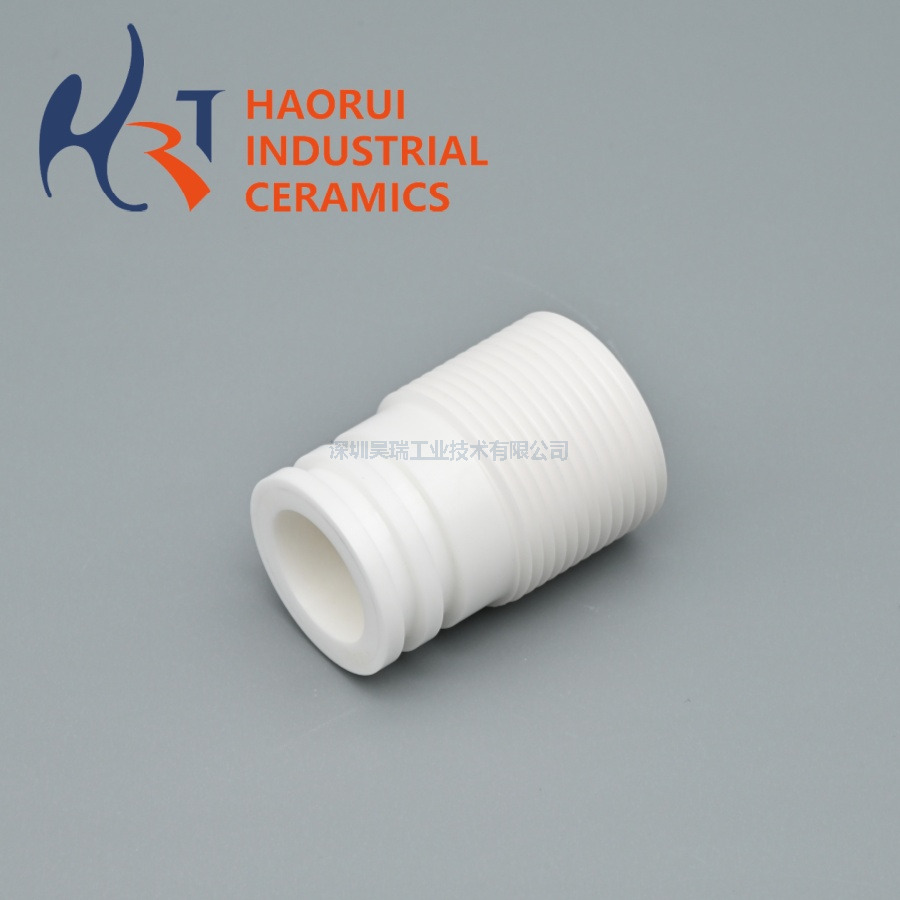

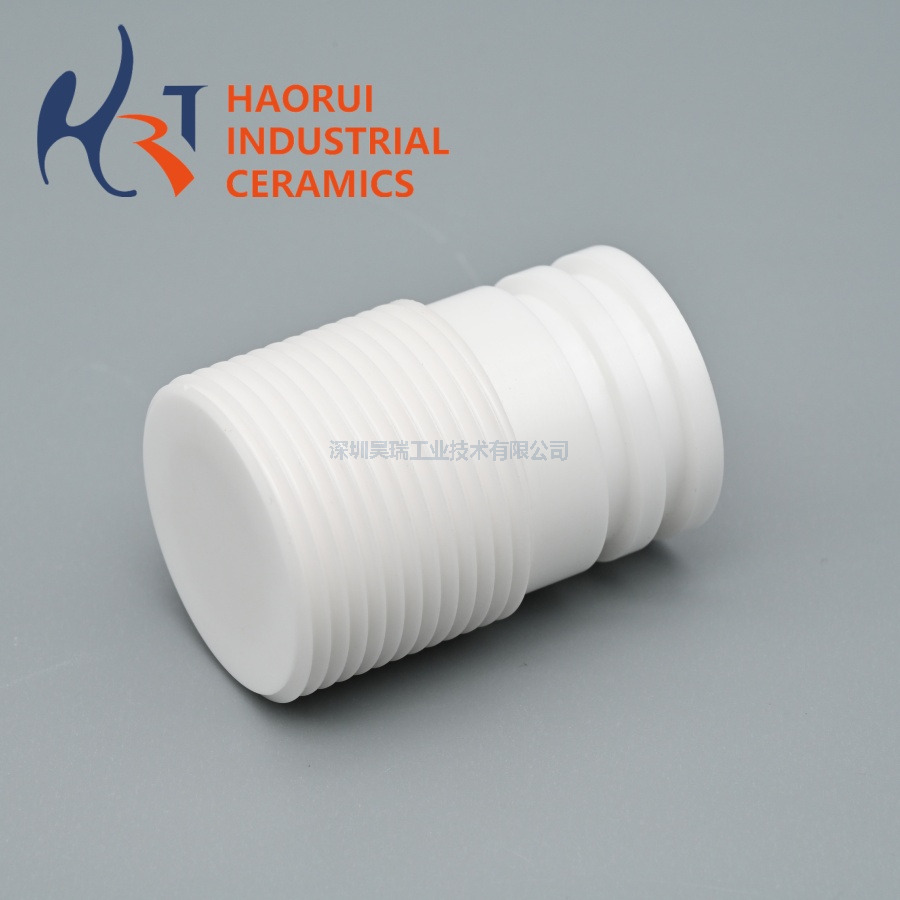

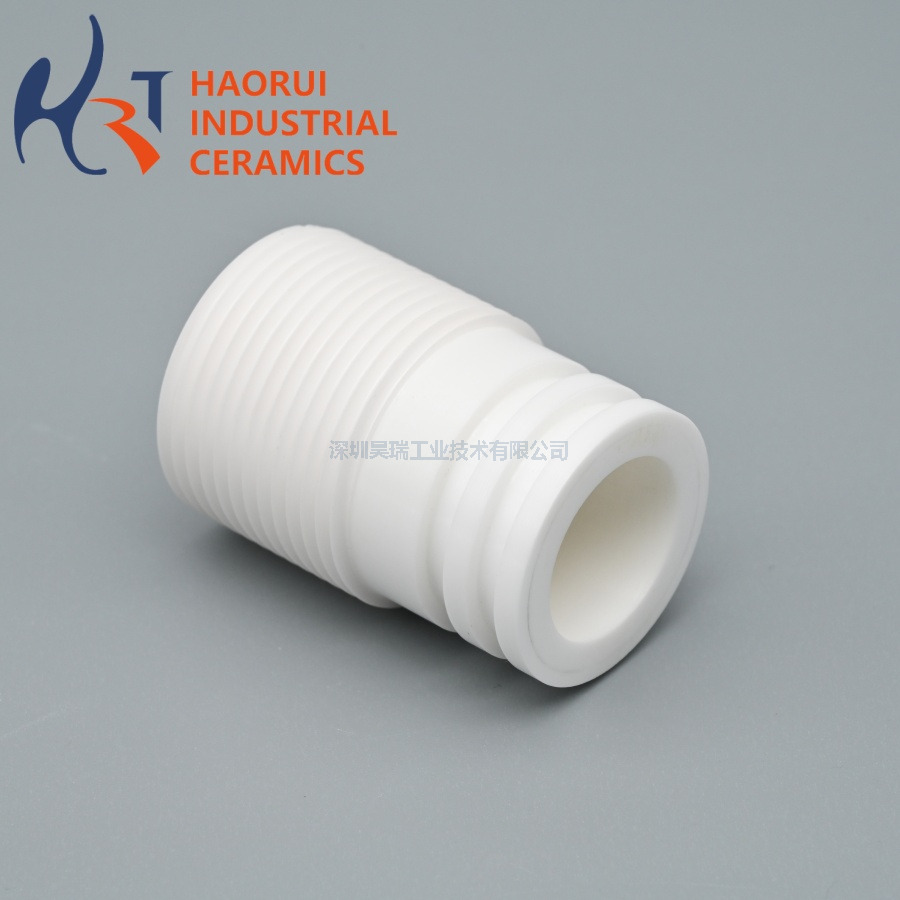

High-Precision Zirconia Threaded Tube | Custom CNC Machined ZrO₂ Ceramic Parts

Name: High-Precision Zirconia Threaded Tube | Custom CNC Machined ZrO₂ Ceramic Parts
Brand: HaoRui
Rating: 5.0 (93 reviews)

★Edge opening, very sharp
★Extremely high bending strength and hardness
★High density - up to 6.0 g/cm^3
★Low thermal conductivity
★Other features: high electrical insulation, high corrosion resistance, high biocompatibility

Category: Zirconia Ceramic Parts
Tags: Industrial Applications

Availability:

Quantity:



Inquire Add to Basket

Model:
02A36
Brand:
HaoRui
Code:
custom01A35

Product Description

Place of Origin

Guangdong, China

Type

Ceramic Tubes

Application

Industrial Ceramic

Model Number

ZrO2-036

Brand Name

HaoRui

Processing Service

Cutting, Moulding, Grinding, Milling, Drilling, Lapping, Polishing, CNC, Laser

Product name

Precision ceramic parts

Color

White/Ivory

Shape

Customized

Dimension

Customized

Quality control

100% Inspection

Feature

High hardness, High strength, High temperacture

Max Working Temperature

1000℃

Gas permeability

0

Water Absorption

0

MOQ

1 Pcs

Properties Of Different Zirconia Material

Property	Item	3Y-TZP White /Black		Mg-PSZ		Nano 3Y-TZP
Mechanical Characteristics	Color	Ivory/Black	-	Gold Yellow	-	BLUE	-
	Density	6.02	g/cm3	5.7	g/cm3	6.01	g/cm3
	Bending Strength	800	MPa	450	MPa	1200	MPa
	Compressive trength	3000	MPa	2500	MPa	3000	MPa
	Elastic Modulus	200	GPa	250	GPa	220	GPa
	Fracture Toughness	8	MPa m1/2	6~7	MPa m1/2	14	MPa m1/2
	Weber Coefficient	15	m	12	m	25	m
	Vickers Hardness	1200	HV 0.5	1100	HV 0.5	1200	HV 0.5
Thermal Characterics	Coefficient of Line Thermal Expansion	10	10^-6K^-1	10	10^-6K^-1	10	10^-6K^-1
	Thermal Conductivity	3	W/mK	3	W/mK	2	W/mK
	Thermal Shock Resistance(Put in Water)	300	ΔT °C	450	ΔT °C	300	ΔT °C
	Max Working Temperature	1000	°C	2100	°C	1000	°C
Electrical Characteristics	Volume Resistance at 20°C	>10¹³	Ωcm	>10¹⁴	Ωcm	>10¹³	Ωcm
	Dielectric Strength	11×10⁶	V/m	13 × 10⁵	V/m	11×10⁶	V/m
	Dielectric Constant	33	εr	28	εr	33	εr
	One MHZ Dielectric Loss Angle at 20°C	0.0016	tanδ	0.0017	tanδ	0.0016	tanδ
Chemical Characteristics	Nitric Acid (60%) 90°C	≒0.00	WT Loss mg/cm²/day	0.1	WT Loss mg/cm²/day	≒0.00	WT Loss mg/cm²/day
	Sulphuric Acid (95%) 95°C	0.04		0.34		0.03
	Caustic Soda (30%) 80°C	0.08		0.95		0.06
This data is the result of laboratory testing. Customers need to judge whether it can be used according to the specific environment.

Our Zirconia Threaded Tubes are high-precision ceramic components designed for applications requiring exceptional strength, insulation, and wear resistance. Manufactured using Y-TZP (Yttria Stabilized Zirconia), these parts offer outstanding mechanical performance and excellent dimensional stability, making them ideal for demanding industrial environments.

Through advanced CNC machining, internal/external threading, fine grinding, and polishing, we achieve tight tolerances up to ±0.01mm with a smooth surface finish.

Key Features

High Precision Machining
CNC-machined zirconia ceramic parts with tolerance up to ±0.01mm
Internal & External Thread Options
Supports metric, UNC, UNF, custom threads, left/right-handed threads
Extreme Strength & Toughness
Y-TZP zirconia offers flexural strength up to 1200 MPa
Excellent Insulation Properties
Suitable for high-voltage, high-temperature, and corrosive environments
Wear & Corrosion Resistance
Ideal for long-term use in harsh operating conditions
Custom Sizes Available
OEM & ODM accepted based on drawings or samples

Applications:

Mechanical and Structural Components: Ideal for applications requiring high mechanical strength and resistance to wear and corrosion.
High-Temperature Environments: Suitable for use in furnaces, thermal barriers, and kilns, due to its exceptional thermal stability.
Chemical Processing: Perfect for industries where chemical resistance is crucial, such as in chemical reactors and piping systems.

Choose our custom industrial zirconia ceramic parts for reliable, high-performance solutions in industries requiring yttria-stabilized zirconia and high-purity ZrO2 ceramics. These components offer superior toughness, durability, and versatility for a wide range of industrial applications.
