Custom precision zirconia CNC structural components manufactured with advanced ceramic machining technology. High wear resistance, excellent strength, electrical insulation and OEM customization for semiconductor and industrial applications.
Haorui Industrial Ceramics specializes in the manufacturing of high-precision zirconia CNC structural components designed for demanding industrial environments requiring exceptional wear resistance, high strength, dimensional stability and electrical insulation.
Using advanced CNC machining, precision grinding and polishing technologies, we produce customized zirconia ceramic parts with complex geometries, fine hole structures and tight tolerances up to ±0.01 mm.
Our zirconia ceramic structural components are widely used in semiconductor equipment, automation systems, vacuum devices, medical equipment, precision machinery and high-purity industrial applications.
Advanced CNC ceramic machining technology enables the production of complex structural components with excellent dimensional consistency and precision tolerances.
✔ Tolerance up to ±0.01 mm
✔ Precision holes and slots
✔ Complex geometry machining
✔ Fine grinding and polishing
Zirconia ceramic offers extremely high hardness and abrasion resistance, significantly extending component service life under high-friction operating conditions.
✔ Long-term wear resistance
✔ Reduced maintenance frequency
✔ Stable performance under continuous operation
Compared with traditional ceramic materials, zirconia provides higher flexural strength and fracture toughness.
✔ High impact resistance
✔ Excellent structural stability
✔ Suitable for demanding mechanical environments
Stable against acids, alkalis and aggressive chemicals, making it suitable for harsh industrial applications.
✔ Chemical resistant
✔ Corrosion resistant
✔ Stable in high-purity environments
Zirconia ceramic components provide excellent dielectric properties for semiconductor and electronic equipment applications.
✔ Non-conductive material
✔ High electrical insulation
✔ Low contamination risk
| Property | Zirconia Ceramic |
|---|---|
| Material | Zirconium Oxide (ZrO₂) |
| Density | ≥ 6.0 g/cm³ |
| Hardness | ≥ 1200 HV |
| Flexural Strength | Up to 1200 MPa |
| Fracture Toughness | 7–10 MPa·m¹/² |
| Working Temperature | Up to 1000°C |
| Tolerance Capability | ±0.01 mm |
| Surface Finish | Ra 0.2–0.8 μm |
| Electrical Property | Excellent Insulation |
Wafer handling systems
Semiconductor automation equipment
Vacuum processing systems
Precision alignment structures
Ceramic guide components
Precision structural supports
Wear-resistant mechanical parts
Linear motion systems
High-purity structural components
Corrosion-resistant ceramic parts
Precision insulating components
Ceramic shafts
Ceramic guide rails
Ceramic positioning structures
Mechanical wear components
Haorui Industrial Ceramics supports OEM and ODM manufacturing according to customer drawings or samples.
✔ CNC machining
✔ Precision grinding
✔ Fine polishing
✔ Hole machining
✔ Slot machining
✔ Complex shape processing
✔ Surface finishing
Zirconia Ceramic (ZrO₂)
Alumina Ceramic (Al₂O₃)
Aluminum Nitride Ceramic (AlN)
Silicon Nitride Ceramic (Si₃N₄)
Silicon Carbide Ceramic (SiC)
✔ 20+ Years of Advanced Ceramic Manufacturing Experience
✔ Precision Tolerance up to ±0.01 mm
✔ Professional CNC Ceramic Machining Technology
✔ Semiconductor Industry Application Experience
✔ Strict Quality Inspection System
✔ OEM & ODM Custom Manufacturing
✔ Fast Prototype Development
✔ Exported Worldwide
✔ Engineering Support for New Product Development

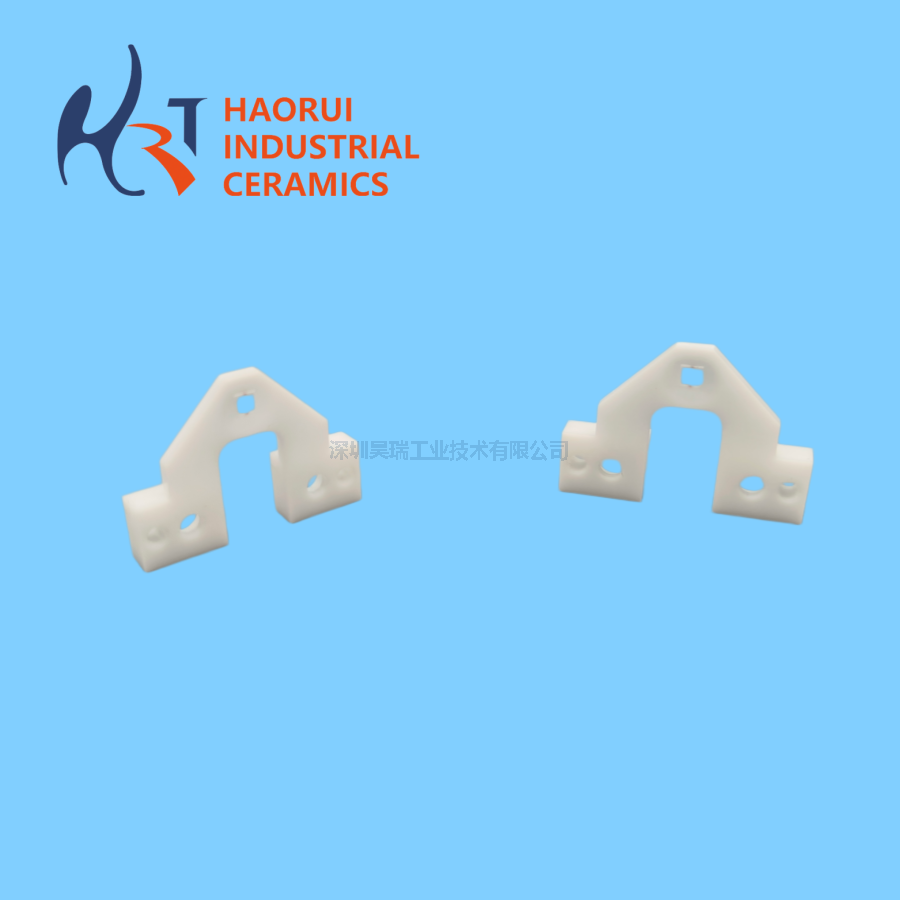

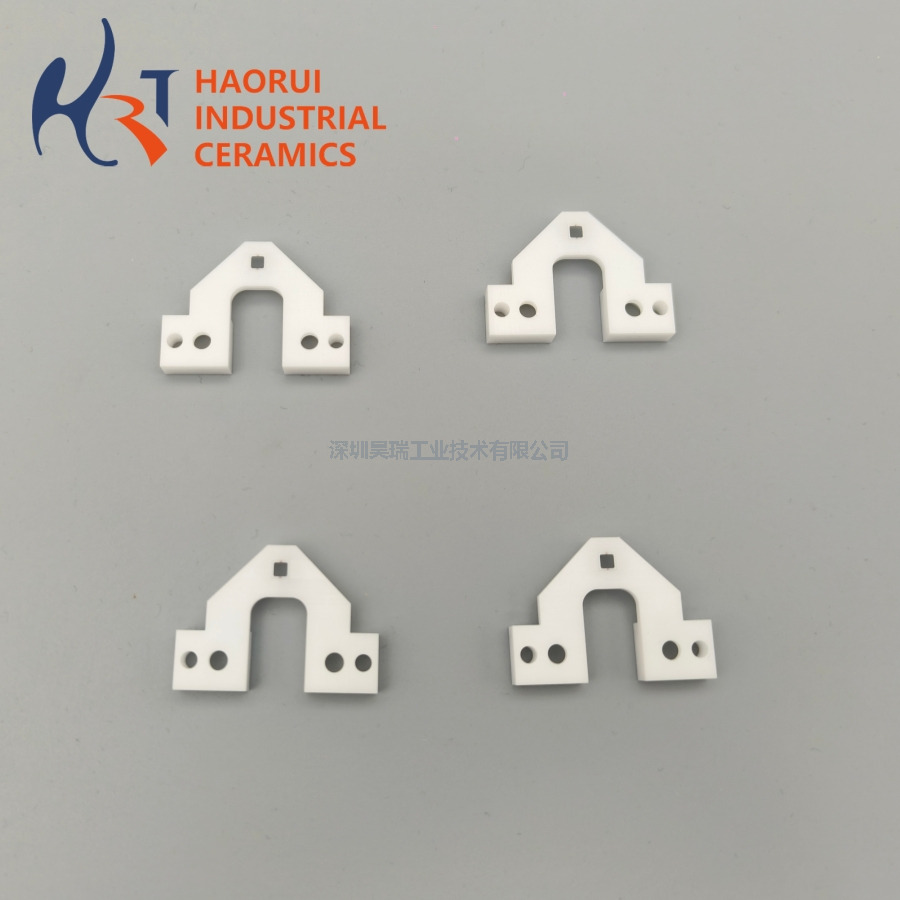

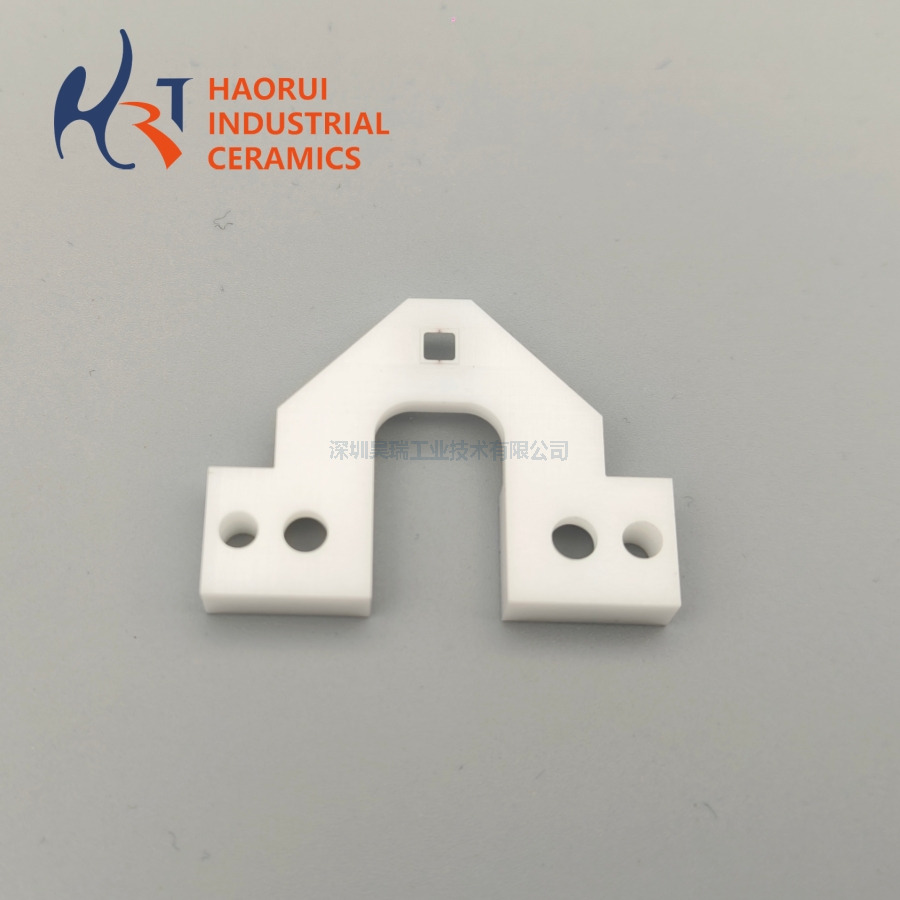

Precision Zirconia CNC Structural Components
Zirconia Ceramic Parts
Zirconia Ceramic Structural Components
CNC Machined Zirconia Ceramic
Technical Ceramic Components
Precision Ceramic Parts
Industrial Ceramic Components
Engineering Ceramics
Advanced Ceramics
Wear Resistant Ceramic Parts
| Property | Item | 3Y-TZP White /Black | Mg-PSZ | Nano 3Y-TZP | |||
| Mechanical Characteristics | Color | Ivory/Black | - | Gold Yellow | - | BLUE | - |
| Density | 6.02 | g/cm3 | 5.7 | g/cm3 | 6.01 | g/cm3 | |
| Bending Strength | 800 | MPa | 450 | MPa | 1200 | MPa | |
| Compressive trength | 3000 | MPa | 2500 | MPa | 3000 | MPa | |
| Elastic Modulus | 200 | GPa | 250 | GPa | 220 | GPa | |
| Fracture Toughness | 8 | MPa m1/2 | 6~7 | MPa m1/2 | 14 | MPa m1/2 | |
| Weber Coefficient | 15 | m | 12 | m | 25 | m | |
| Vickers Hardness | 1200 | HV 0.5 | 1100 | HV 0.5 | 1200 | HV 0.5 | |
| Thermal Characterics | Coefficient of Line Thermal Expansion | 10 | 10-6K-1 | 10 | 10-6K-1 | 10 | 10-6K-1 |
| Thermal Conductivity | 3 | W/mK | 3 | W/mK | 2 | W/mK | |
| Thermal Shock Resistance(Put in Water) | 300 | ΔT °C | 450 | ΔT °C | 300 | ΔT °C | |
| Max Working Temperature | 1000 | °C | 2100 | °C | 1000 | °C | |
| Electrical Characteristics | Volume Resistance at 20°C | >1013 | Ωcm | >1014 | Ωcm | >1013 | Ωcm |
| Dielectric Strength | 11×106 | V/m | 13 × 105 | V/m | 11×106 | V/m | |
| Dielectric Constant | 33 | εr | 28 | εr | 33 | εr | |
| One MHZ Dielectric Loss Angle at 20°C | 0.0016 | tanδ | 0.0017 | tanδ | 0.0016 | tanδ | |
| Chemical Characteristics | Nitric Acid (60%) 90°C | ≒0.00 | WT Loss mg/cm2/day | 0.1 | WT Loss mg/cm2/day | ≒0.00 | WT Loss mg/cm2/day |
| Sulphuric Acid (95%) 95°C | 0.04 | 0.34 | 0.03 | ||||
| Caustic Soda (30%) 80°C | 0.08 | 0.95 | 0.06 | ||||
This data is the result of laboratory testing. Customers need to judge whether it can be used according to the specific environment. | |||||||
