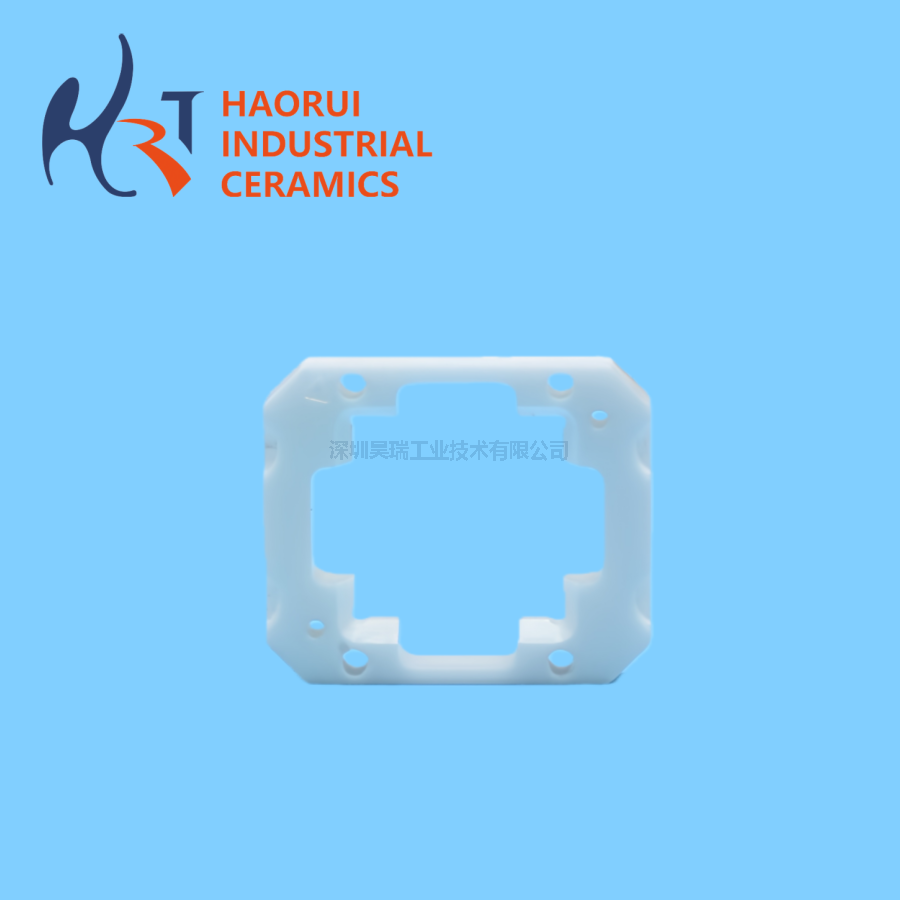

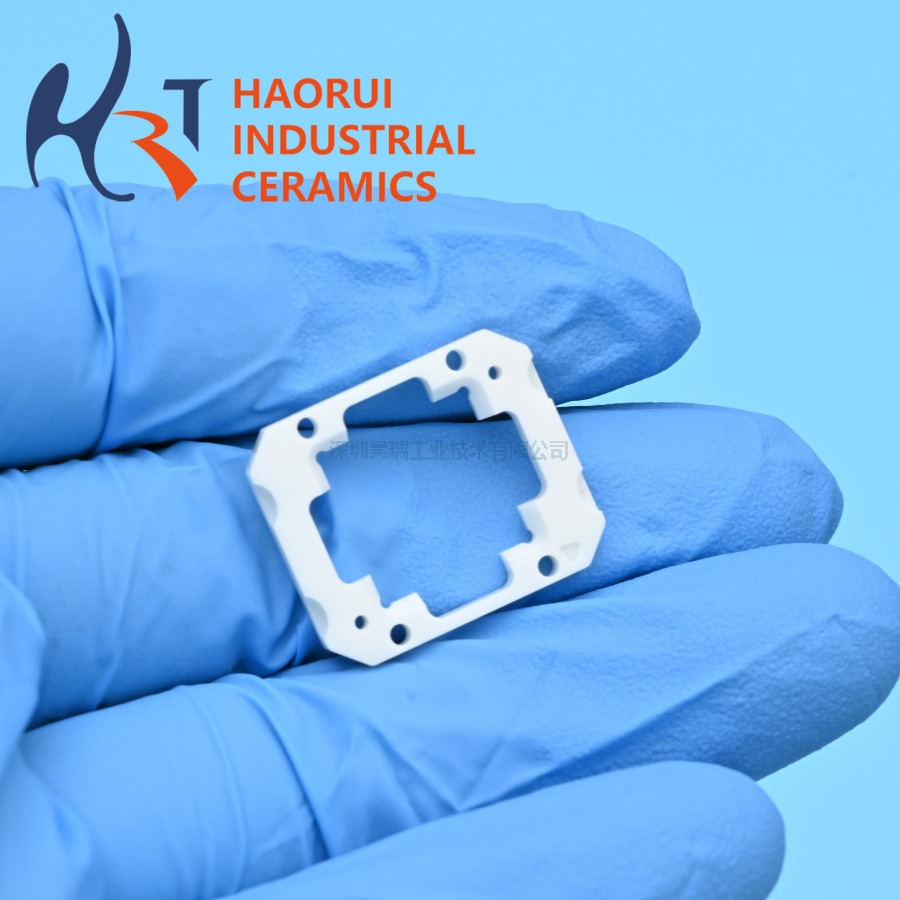

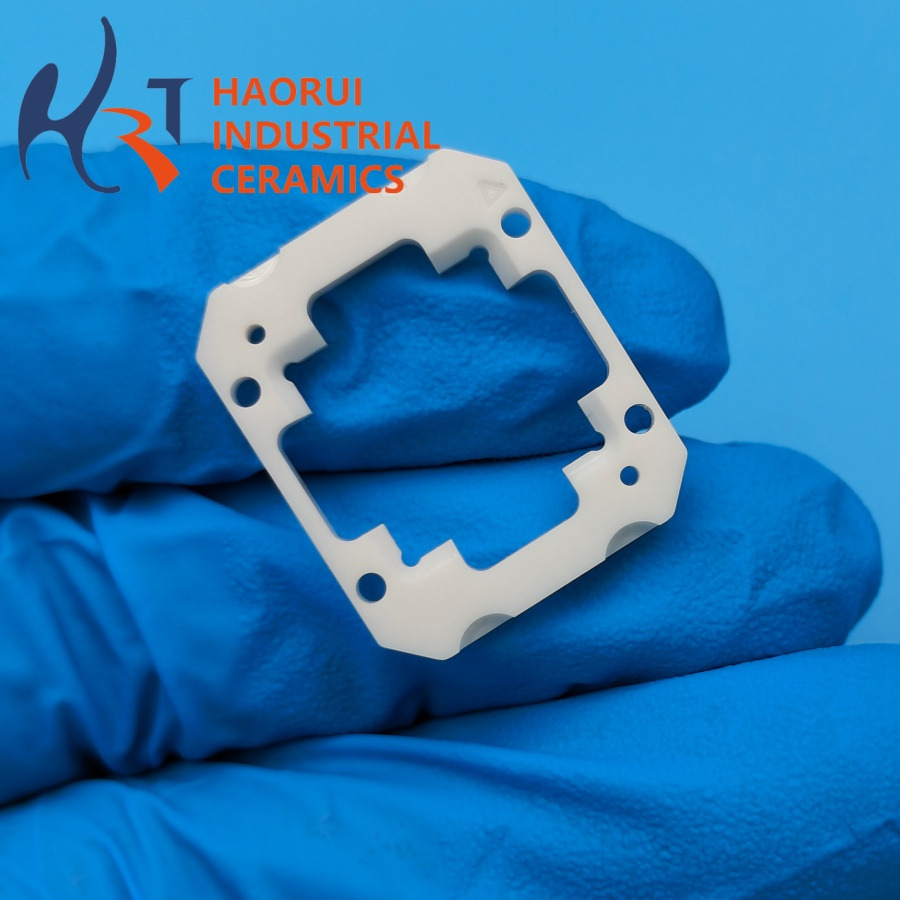

Haorui Industrial Ceramics manufactures custom zirconia ceramic alignment frames designed for high-precision positioning, fixing and structural support applications in semiconductor, automation, vacuum and precision industrial systems.
Manufactured from high-purity zirconium oxide (ZrO₂), these ceramic frames offer excellent wear resistance, dimensional stability, corrosion resistance and electrical insulation performance. Precision CNC machining and fine grinding processes ensure accurate positioning structures and tight tolerances for demanding industrial applications.
Compared with traditional metal and plastic components, zirconia ceramic frames provide superior hardness, longer service life and contamination-free operation, making them ideal for semiconductor equipment and high-cleanliness environments.
With more than 20 years of advanced ceramic manufacturing experience, Haorui provides fully customized ceramic solutions according to customer drawings, samples and technical requirements.
Precision-machined structures ensure stable alignment and accurate component positioning.
High hardness significantly improves durability under continuous operation and friction conditions.
Zirconia offers exceptional flexural strength and fracture toughness compared with conventional ceramics.
Ideal for semiconductor, electronic and automation systems requiring non-conductive structural components.
Excellent resistance to acids, alkalis and harsh industrial environments.
Maintains precision under temperature variation and long-term operation.
Custom shapes, holes, grooves and complex geometries available according to customer requirements.
| Property | Zirconia Ceramic |
|---|---|
| Material | Zirconium Oxide (ZrO₂) |
| Density | ≥ 6.0 g/cm³ |
| Hardness | ≥ 1200 HV |
| Flexural Strength | Up to 1200 MPa |
| Fracture Toughness | 7–10 MPa·m¹/² |
| Working Temperature | Up to 1000°C |
| Electrical Property | Excellent Insulation |
| Precision Tolerance | ±0.01 mm |
| Surface Finish | Ra 0.2–0.8 μm |
Wafer alignment systems
Semiconductor positioning fixtures
Vacuum processing equipment
Semiconductor automation modules
Precision fixture systems
Alignment positioning devices
Mechanical guiding structures
Robotic support components
Vacuum chamber fixtures
Optical alignment structures
High-cleanliness positioning components
Wear-resistant guide frames
Structural ceramic fixtures
Insulating support components
✔ 20+ Years of Precision Ceramic Manufacturing Experience
✔ Advanced CNC Machining & Grinding Technology
✔ Tight Tolerance Capability up to ±0.01 mm
✔ Custom Manufacturing Based on Drawings or Samples
✔ Semiconductor Industry Application Experience
✔ Engineering Support for Complex Structural Ceramics
✔ Strict Quality Control & Full Inspection
✔ Exported to Europe, USA, Japan and Southeast Asia
Ensures accurate positioning for semiconductor and automation applications.
Longer operational lifespan than metal or plastic alternatives.
Suitable for high-voltage and semiconductor systems.
Stable performance in aggressive industrial environments.
Complex structures manufactured according to customer drawings.
| Property | Item | 3Y-TZP White /Black | Mg-PSZ | Nano 3Y-TZP | |||
| Mechanical Characteristics | Color | Ivory/Black | - | Gold Yellow | - | BLUE | - |
| Density | 6.02 | g/cm3 | 5.7 | g/cm3 | 6.01 | g/cm3 | |
| Bending Strength | 800 | MPa | 450 | MPa | 1200 | MPa | |
| Compressive trength | 3000 | MPa | 2500 | MPa | 3000 | MPa | |
| Elastic Modulus | 200 | GPa | 250 | GPa | 220 | GPa | |
| Fracture Toughness | 8 | MPa m1/2 | 6~7 | MPa m1/2 | 14 | MPa m1/2 | |
| Weber Coefficient | 15 | m | 12 | m | 25 | m | |
| Vickers Hardness | 1200 | HV 0.5 | 1100 | HV 0.5 | 1200 | HV 0.5 | |
| Thermal Characterics | Coefficient of Line Thermal Expansion | 10 | 10-6K-1 | 10 | 10-6K-1 | 10 | 10-6K-1 |
| Thermal Conductivity | 3 | W/mK | 3 | W/mK | 2 | W/mK | |
| Thermal Shock Resistance(Put in Water) | 300 | ΔT °C | 450 | ΔT °C | 300 | ΔT °C | |
| Max Working Temperature | 1000 | °C | 2100 | °C | 1000 | °C | |
| Electrical Characteristics | Volume Resistance at 20°C | >1013 | Ωcm | >1014 | Ωcm | >1013 | Ωcm |
| Dielectric Strength | 11×106 | V/m | 13 × 105 | V/m | 11×106 | V/m | |
| Dielectric Constant | 33 | εr | 28 | εr | 33 | εr | |
| One MHZ Dielectric Loss Angle at 20°C | 0.0016 | tanδ | 0.0017 | tanδ | 0.0016 | tanδ | |
| Chemical Characteristics | Nitric Acid (60%) 90°C | ≒0.00 | WT Loss mg/cm2/day | 0.1 | WT Loss mg/cm2/day | ≒0.00 | WT Loss mg/cm2/day |
| Sulphuric Acid (95%) 95°C | 0.04 | 0.34 | 0.03 | ||||
| Caustic Soda (30%) 80°C | 0.08 | 0.95 | 0.06 | ||||
This data is the result of laboratory testing. Customers need to judge whether it can be used according to the specific environment. | |||||||
