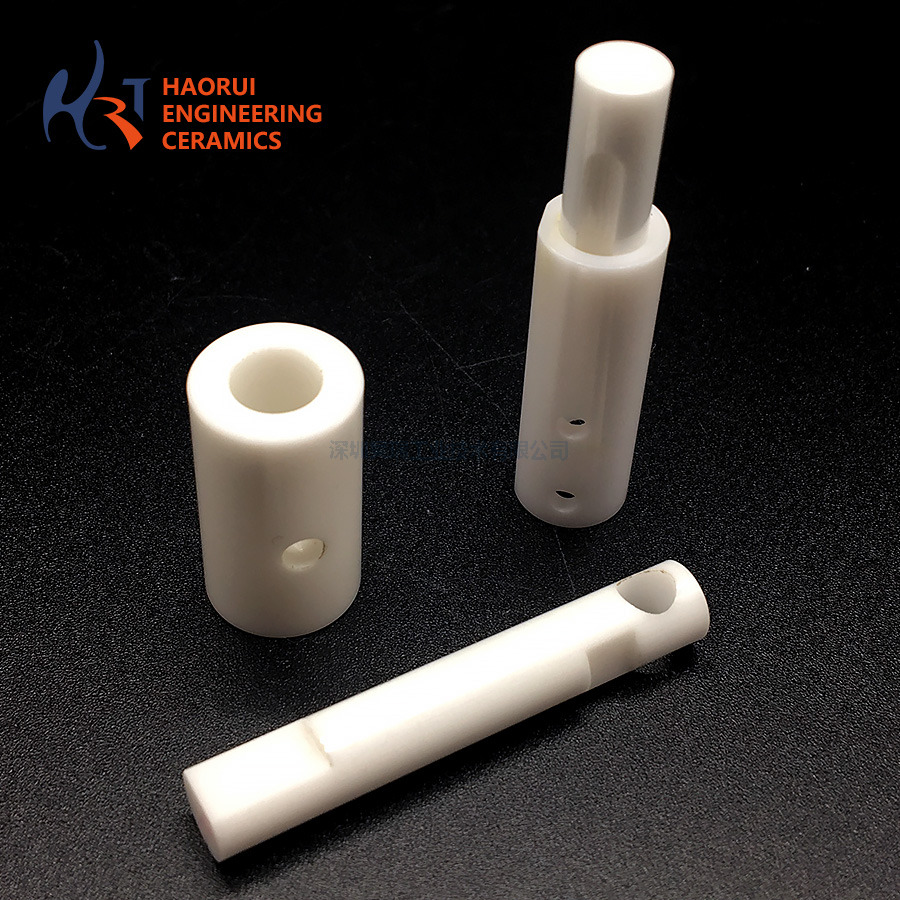

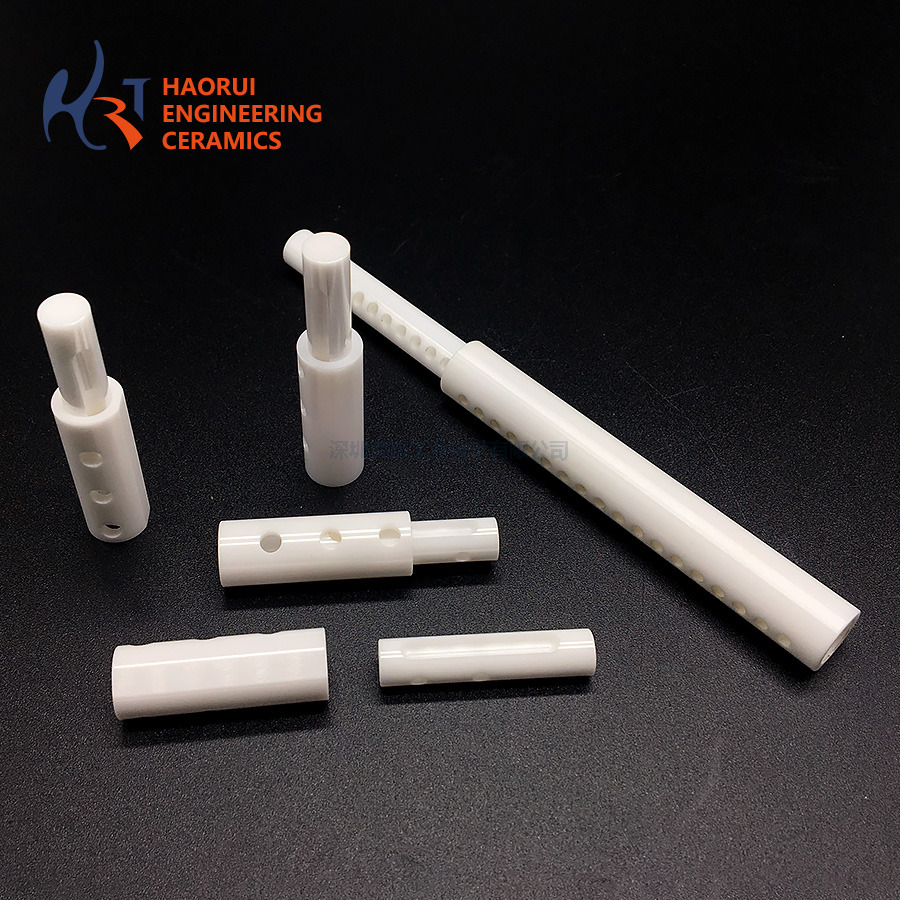

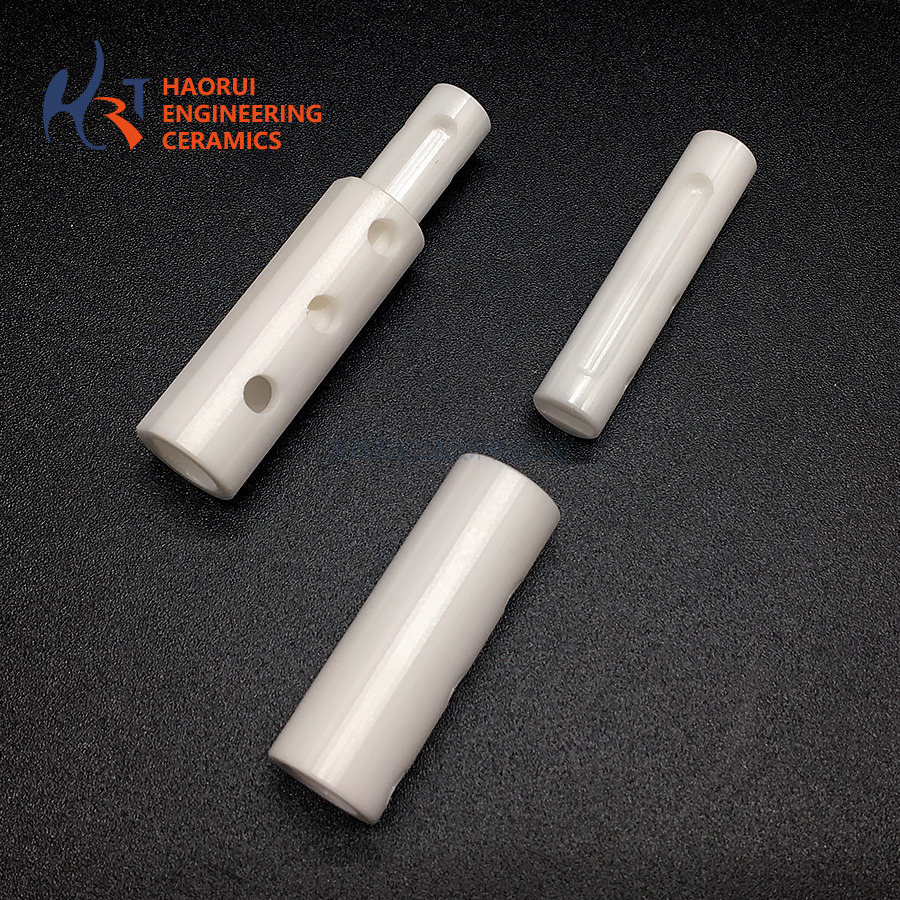

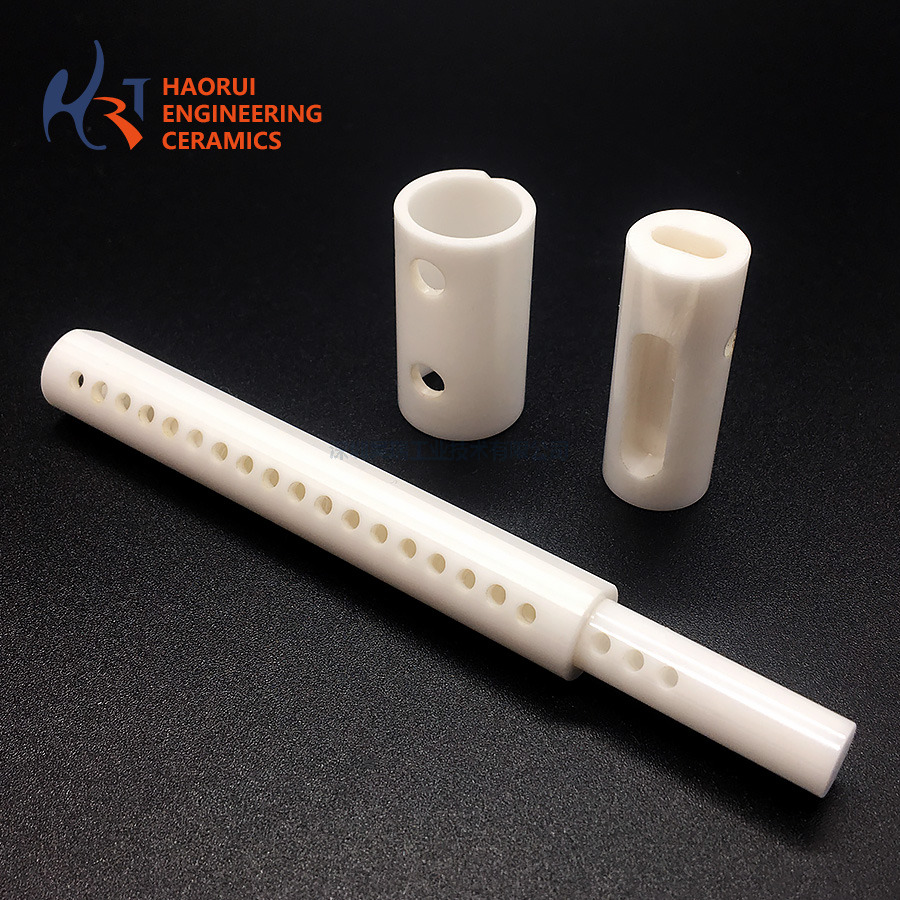

Zirconia Ceramic Valve Plunger | Custom ZrO2 Valve Core with Cross Holes for Fluid Control

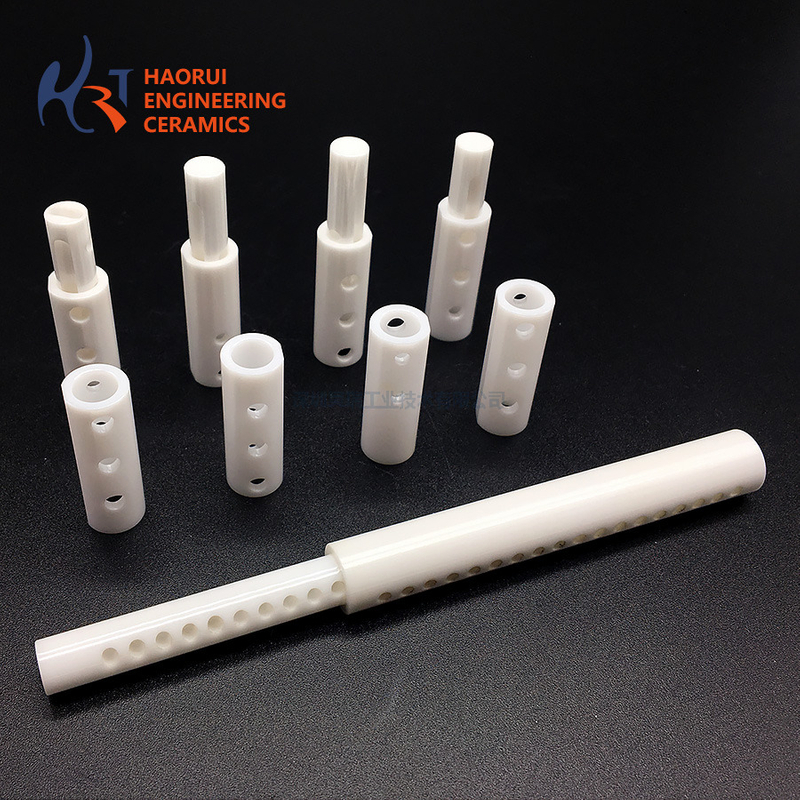

Zirconia ceramic valve plungers and valve cores machined with cross-drilled ports, sealing grooves and stepped bores. Zirconia will not corrode in the fluids that destroy stainless steel and keeps its sealing geometry for the whole service life.

Material:	3Y-TZP White Zirconia
Color:	Ivory white
Brand:	HaoRui - Chinese manufacturer & exporter
Availability:	Made to order, samples available
Availability:

Quantity:



Inquire Add to Basket

Model:
02A005
Brand:
HaoRui
Code:
02A005

Product Description

Key Features

Cross-drilled ports, grooves and steps CNC machined in one setup
Zero corrosion and zero galvanic reaction in acids, brines and dosing chemicals
Wear surface 1200 HV - sealing faces stay flat and leak-free
Dimensional stability from -50 degC up to 1000 degC
Available white, black or nano blue zirconia to match your existing tooling

Typical Applications

Chemical dosing and metering pumps
Analytical / HPLC flow control
Medical and laboratory valves
Water treatment and brine systems
High-purity fluid handling

Material & Specifications

Property	Item	3Y-TZP White / Black	Mg-PSZ Gold yellow	Nano 3Y-TZP Blue
Mechanical	Colour	Ivory / Black	Gold yellow	Nano blue
	Density	6.02 g/cm3	5.7 g/cm3	6.01 g/cm3
	Bending strength	800 MPa	450 MPa	1200 MPa
	Compressive strength	3000 MPa	2500 MPa	3000 MPa
	Elastic modulus	200 GPa	250 GPa	220 GPa
	Fracture toughness	8 MPa m1/2	6-7 MPa m1/2	14 MPa m1/2
	Weibull coefficient	15 m	12 m	25 m
	Vickers hardness	1200 HV0.5	1100 HV0.5	1200 HV0.5
Thermal	Coeff. of linear thermal expansion	10 x10-6/K	10 x10-6/K	10 x10-6/K
	Thermal conductivity	3 W/mK	3 W/mK	2 W/mK
	Thermal shock resistance	300 dT degC	450 dT degC	300 dT degC
	Max working temperature	1000 degC	2100 degC	1000 degC
Electrical	Volume resistance at 20degC	>10^13 Ohm cm	>10^14 Ohm cm	>10^13 Ohm cm

Standard properties of the zirconia grades we machine. Tolerances, surface finish and part-specific dimensions are made to your drawing.

Customization & Ordering

Send a drawing (STEP / DXF / PDF) or a sample - we quote from either.
Material: white 3Y-TZP, anti-static black 3Y-TZP, nano-tough blue 3Y-TZP or yellow Mg-PSZ.
Tolerance: +/-0.01 mm typical, down to +/-0.005 mm on critical dimensions.
Finishing: as-machined, diamond-ground, lapped or mirror-polished.
Prototype and small batch orders accepted; production quantities supplied with inspection report on request.

Certifications & Trade Shows

Quality you can verify: Haorui Industrial operates an ISO 9001:2015 certified quality management system (scope: production and sales of precision mechanical ceramics parts), and our yttria-stabilized zirconia ceramics are RoHS 2.0 compliant - tested per IEC 62321 by an accredited third-party laboratory (Shenzhen United Testing). We exhibit every year at CIOE (China International Optoelectronic Exposition) and semiconductor industry expositions in Shenzhen - visit our booth to see the parts in person.
