Choosing the right porous ceramic vacuum chuck is important for achieving stable and uniform workpiece holding during precision machining, grinding, polishing, inspection, and wet processing.
A porous ceramic vacuum chuck is not simply a ceramic plate with vacuum holes. Its performance depends on the porous ceramic material, pore size, porosity, permeability, ceramic thickness, vacuum pressure, vacuum flow rate, and the characteristics of the workpiece and processing environment.
This guide explains the key specifications and provides practical guidance for selecting a porous ceramic vacuum chuck, including how to choose between alumina and silicon carbide, how to understand pore size, and why specifications such as "#400 mesh" should not be confused with ceramic pore size.
A porous ceramic vacuum chuck is a vacuum holding device that uses a porous ceramic surface to distribute suction across the workpiece.
Unlike conventional vacuum chucks that rely mainly on several drilled holes or machined vacuum grooves, a porous ceramic chuck contains a large number of interconnected microscopic pores. When vacuum is applied through the backside of the chuck, air is drawn through these interconnected pores, creating distributed suction across the working surface.
A typical customized porous ceramic vacuum chuck may consist of:
Metal or ceramic structural base
Porous ceramic suction surface
Internal vacuum channels
Vacuum inlet
Sealing structure
Mounting holes or positioning features
One common configuration is a SUS630 stainless steel base combined with a porous ceramic suction surface.
The metal base provides mechanical support and connection to the vacuum system, while the porous ceramic surface provides the actual vacuum holding function.

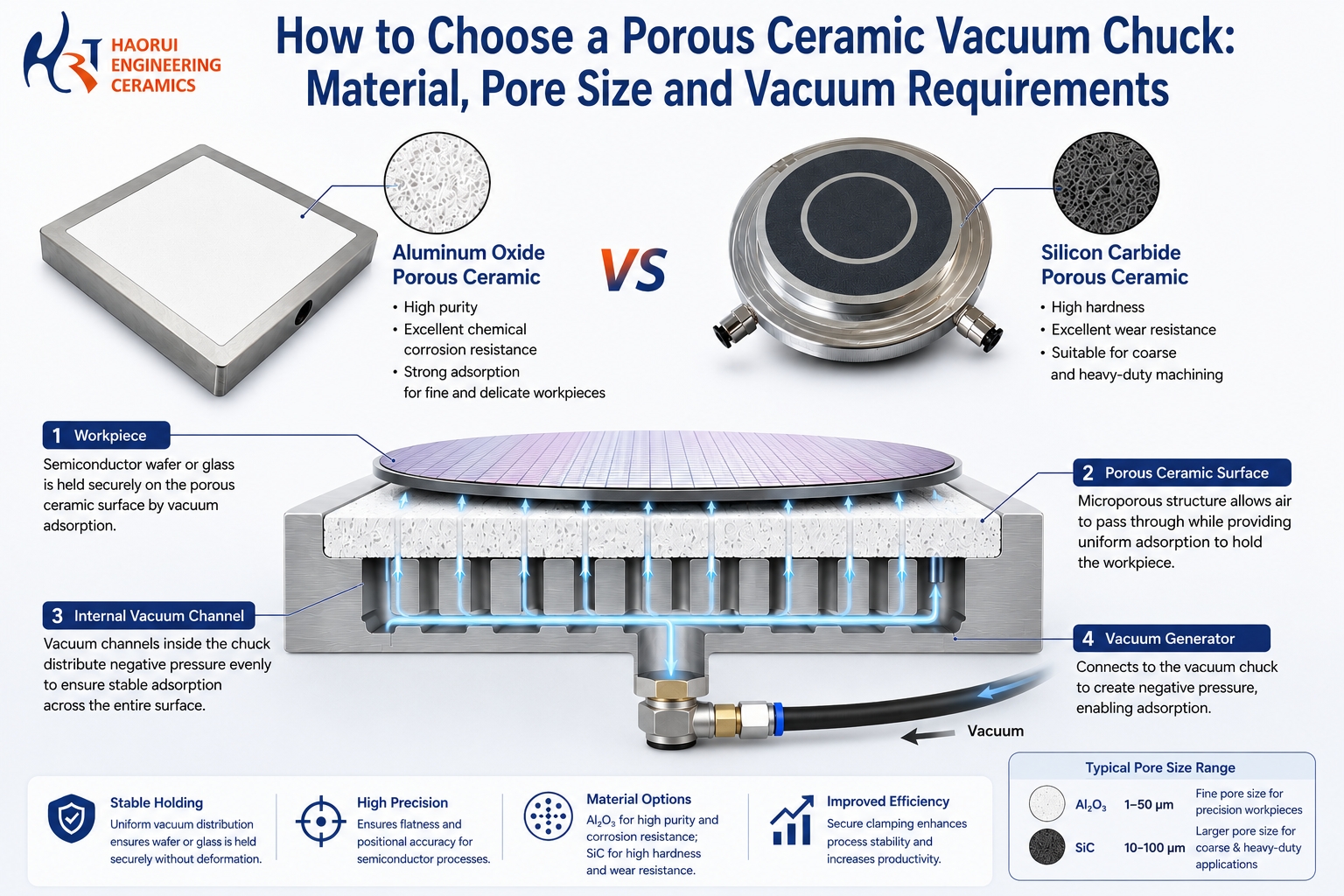

The operating principle is relatively simple.
When the vacuum generator is activated, negative pressure is created below the porous ceramic surface. Air is then drawn from the workpiece interface through the interconnected pores and into the internal vacuum channel.
The resulting pressure difference between the top and bottom surfaces creates a holding force.
The basic process can be represented as:
Workpiece → Porous Ceramic Surface → Internal Vacuum Channel → Vacuum Generator
Because suction is distributed over a large area, porous ceramic vacuum chucks can be particularly useful for thin, flat, fragile, or precision workpieces that may be difficult to hold with conventional vacuum holes.
Typical applications include:
Semiconductor wafer processing
Optical glass processing
Precision grinding
Polishing
Dicing
Cleaning
Thin-film processing
Inspection and measurement
Precision machining
Wet processing
Alumina (Al₂O₃) and silicon carbide (SiC) are two commonly considered materials for porous ceramic vacuum chucks.
Neither material is universally better. The appropriate material depends on the application requirements.
Alumina is widely used for precision ceramic components because of its high hardness, wear resistance, electrical insulation, chemical stability, and dimensional stability.
Typical advantages include:
High hardness
Good wear resistance
Excellent electrical insulation
Good chemical stability
Good dimensional stability
Suitable for precision machining
Available in customized porous structures
Porous alumina may be considered for semiconductor, optical, electronic, inspection, and other precision processing applications.
Silicon carbide offers excellent hardness, wear resistance, thermal conductivity, and high-temperature performance.
It may be considered for applications involving:
High wear
Abrasive processing
High-temperature environments
High-speed machining
Thermal cycling
Applications requiring high thermal conductivity
The choice between alumina and silicon carbide should therefore be based on the actual processing conditions rather than material name alone.
Property | Porous Alumina | Porous Silicon Carbide |
|---|---|---|
Hardness | High | Very high |
Wear resistance | Excellent | Excellent |
Electrical insulation | Excellent | Depends on material grade |
Thermal conductivity | Low to moderate | High |
High-temperature performance | Good | Excellent |
Chemical stability | Good to excellent | Excellent |
Typical applications | Semiconductor, optical, precision processing | Abrasive, high-wear and thermal applications |
For a customized vacuum chuck, the ceramic material should be selected together with the workpiece, processing method, temperature, vacuum system, and required surface performance.
Both porous alumina and porous silicon carbide can be used for vacuum chuck applications, but their typical application areas can be different depending on the required mechanical, thermal, electrical, and chemical properties.
Porous alumina (Al₂O₃) is often considered when electrical insulation, dimensional stability, surface quality, and general chemical resistance are important.
Typical applications include:
Semiconductor wafer handling and processing
Optical glass and optical component processing
Precision grinding and polishing
Thin glass and ceramic substrate processing
Electronic component manufacturing
Inspection and measurement fixtures
Precision machining of non-conductive workpieces
Wet processing where alumina's chemical stability and insulating properties are beneficial
For example, a porous alumina vacuum chuck can be combined with a SUS630 stainless steel base to create a customized vacuum fixture for precision wet processing.
Alumina is also a common choice when the workpiece or process requires an electrically insulating ceramic contact surface.
Porous silicon carbide (SiC) is often considered when high hardness, wear resistance, thermal conductivity, or high-temperature performance is particularly important.
Typical applications include:
High-wear grinding and polishing processes
Abrasive machining
High-speed processing
High-temperature applications
Processes involving significant thermal changes
Applications requiring high thermal conductivity
Precision components exposed to severe wear
Silicon carbide can therefore be a strong candidate for demanding abrasive or thermal environments where wear resistance and heat dissipation are important.
There is no universal rule that alumina is always better than silicon carbide, or vice versa.
The selection should consider:
Workpiece + Processing Method + Temperature + Wear + Electrical Requirements + Chemical Environment + Vacuum Conditions
For example:
Application Requirement | Material to Consider |
|---|---|
Electrical insulation | Porous Alumina |
General precision processing | Porous Alumina |
Optical and glass processing | Porous Alumina |
High wear | Porous SiC |
Abrasive processing | Porous SiC |
High-temperature environment | Porous SiC |
High thermal conductivity | Porous SiC |
Customized precision vacuum holding | Alumina or SiC, depending on application |
The final material should be selected according to the complete application rather than the ceramic material alone.
Pore size is one of the most important specifications of a porous ceramic vacuum chuck.
Porous ceramic materials can be manufactured with different characteristic pore sizes, for example:
5 μm, 10 μm, 20 μm, 30 μm, 50 μm, and 100 μm
The pore size describes the characteristic size of the interconnected pores within the ceramic structure.
It is important to understand that porous ceramic pore size is different from the diameter of a conventional drilled vacuum hole.
A porous ceramic chuck does not depend on a small number of large holes. Instead, its porous structure creates many interconnected flow paths throughout the ceramic.
Pore size affects the air-flow characteristics and permeability of the porous ceramic.
As a general engineering principle:
Smaller pores may provide:
Lower air-flow capacity
Fine and distributed suction
More resistance to air flow
Greater sensitivity to contamination or clogging
Larger pores may provide:
Higher air-flow capacity
Easier movement of gas or liquid
Higher permeability
Different requirements for vacuum-system capacity
However, pore size alone does not determine the performance of a porous ceramic vacuum chuck.
Other important parameters include:
Porosity
Permeability
Ceramic thickness
Vacuum pressure
Vacuum flow rate
Effective suction area
Workpiece coverage
Surface flatness
Surface roughness
Vacuum leakage
Therefore, a 30 μm porous ceramic is not automatically better than a 50 μm or 100 μm material.
The correct pore size should be selected according to the complete application.
This is an important point when reviewing customer specifications.
Customers may sometimes provide a specification such as:
Approximately #400 mesh
However, #400 mesh should not automatically be interpreted as a 400 μm pore size or a 38 μm ceramic pore size.
Mesh or sieve size is generally associated with a sieve opening or particle/abrasive size, while pore size describes the interconnected pores inside the porous ceramic.
A commonly referenced No. 400 sieve has an opening of approximately 38 μm, but this does not mean that the porous ceramic should have a 38 μm pore size.
For example:
#400 mesh ≠ 400 μm pore size
and
#400 mesh ≠ automatically 38 μm porous ceramic
When a customer specifies "#400 mesh", the supplier should clarify what the specification refers to.
It may describe:
Abrasive grain size
Sieve opening
Grinding media
Surface finishing material
Another process-specific specification
The actual porous ceramic pore size should then be selected separately according to the vacuum and processing requirements.
Wet processing requires additional consideration because the porous ceramic surface may be exposed to water, coolant, grinding fluid, cleaning liquid, slurry, and fine particles.
Typical wet-processing applications include:
Wet grinding
Polishing
Glass processing
Wafer processing
Cleaning
Slurry-based processes
Precision machining with coolant
During these processes, liquid and fine particles may enter the porous structure.
Therefore, the chuck should be designed to balance:
Vacuum holding + permeability + liquid flow + contamination resistance
If the pores are too small for the process conditions, fine particles or residues may increase the risk of clogging.
If the pores are too large, the vacuum system may require higher flow capacity, particularly when the workpiece does not completely cover the suction surface.
For some wet-processing applications, an alumina porous ceramic with a pore size around 30 μm may be considered as an initial engineering option.
However, the final pore size should be confirmed according to the actual vacuum pressure, vacuum flow rate, workpiece size, liquid characteristics, suction area, and required holding force.
One of the most common questions customers ask about porous ceramic is:
If the pore size is 30 μm, does that mean every pore is exactly 30 μm?
The answer is no.
A porous ceramic does not have thousands of perfectly identical, machined holes. Its internal structure is formed by interconnected particles and pores, creating a three-dimensional porous network that can be compared to a microscopic honeycomb-like structure.
Because of this manufacturing structure, the individual pores are not necessarily identical in size or shape.
When a porous ceramic is specified as having a pore size of approximately 30 μm, the 30 μm value should generally be understood as a characteristic or nominal pore-size value, rather than the exact diameter of every individual pore.
In reality, the porous structure contains a distribution of pore sizes.
For example, a material specified around 30 μm may contain pores that are:
Smaller than 30 μm
Close to 30 μm
Larger than 30 μm
The distribution depends on the raw material, particle size, forming method, sintering conditions, porosity, and manufacturing process.
Therefore:
30 μm pore size ≠ every pore is exactly 30 μm
A better way to understand it is:
30 μm = a characteristic value representing the pore-size distribution of the porous ceramic.
Porous ceramics are generally produced by controlling ceramic particles and the formation of interconnected voids during manufacturing.
After forming and sintering, the ceramic develops a three-dimensional network of interconnected pores.
Unlike a drilled hole, whose diameter can be directly controlled by a machining tool, the pores inside porous ceramic are part of the material's microstructure.
Therefore, the pore geometry can vary in:
Diameter
Shape
Length
Connectivity
Local distribution
A simplified illustration would look like this:
Conventional machined hole:
○ ○ ○ ○ ○
Each hole can be individually machined and measured.
Porous ceramic structure:
◌╲◯╱◌╲◯╱◌
╲◯╱╲◌╱╲◯╱
◯╱╲◌╱╲◯╱╲
The pores form a connected three-dimensional network rather than a regular array of identical circular holes.
For a vacuum chuck, the overall performance depends on the porous structure rather than the diameter of one individual pore.
Important properties include:
Pore-size distribution
Porosity
Permeability
Interconnected pore structure
Ceramic thickness
Surface structure
Vacuum pressure
Vacuum flow rate
This means that two porous ceramics may both be described as having an approximately 30 μm pore size, while their actual permeability and vacuum-flow characteristics may still be different.
For this reason, pore size should not be evaluated independently from porosity and permeability.
Not necessarily.
A smaller pore size does not automatically mean stronger vacuum holding.
The actual vacuum performance depends on the entire system, including:
Pore Size + Porosity + Permeability + Vacuum Pressure + Flow Rate + Workpiece Coverage
For example, a porous ceramic with very small pores may have lower air permeability and may also be more sensitive to contamination or clogging in certain applications.
A larger-pore material may provide higher permeability and may be more suitable for applications requiring greater air or liquid flow.
Therefore, selecting a porous ceramic should focus on the required overall vacuum performance, rather than simply choosing the smallest available pore size.
When requesting a porous ceramic vacuum chuck, customers should avoid assuming that the specified pore size represents the exact diameter of every pore.
A clearer specification would be:
Porous alumina, characteristic pore size approximately 30 μm
or:
Porous SiC, nominal pore size approximately 50 μm
If a specific pore-size distribution or permeability is required, the customer should provide the required specification or performance criteria so that the ceramic can be evaluated accordingly.
This is particularly important for precision vacuum applications where the required air flow, vacuum holding force, and wet-processing performance are critical.
For accurate quotation and engineering evaluation, customers should provide as much of the following information as possible.
2D drawing or 3D CAD file
Overall dimensions
Ceramic thickness
Flatness requirement
Parallelism requirement
Surface roughness
Mounting-hole dimensions
Vacuum inlet location
Sealing requirements
Porous ceramic material
Alumina grade or purity, if specified
Silicon carbide grade, if specified
Base material such as SUS630, SUS304, SUS316L, or aluminum
Target pore size
Porosity
Permeability, if specified
Effective suction area
Required vacuum pressure
Dry or wet processing
Workpiece material
Workpiece size
Workpiece thickness
Grinding, polishing, cutting, cleaning, or other process
Working temperature
Coolant or liquid type
Particle or slurry conditions
Vacuum type
Vacuum pressure
Vacuum flow rate
Ejector model, if available
Required holding force
The more complete the application information, the more accurately the porous ceramic material and pore structure can be evaluated.
At Hero Ceramic, we provide customized porous ceramic components and vacuum chuck solutions according to customer drawings and application requirements.
Our engineering team can evaluate:
Alumina or silicon carbide porous ceramic
Customized pore size
Porosity and permeability requirements
Ceramic dimensions
Surface flatness and finish
Metal or ceramic base
SUS630 and other base materials
Vacuum inlet and mounting configuration
Dry and wet processing requirements
We focus on customized precision ceramic components rather than standard off-the-shelf vacuum chuck products.
If you are not sure which ceramic material or pore size is suitable for your application, provide us with your drawing and application conditions. Our engineering team can help evaluate the appropriate porous ceramic structure and customized configuration.
A porous ceramic vacuum chuck uses interconnected microscopic pores in a ceramic surface to distribute vacuum suction across a workpiece. It is commonly used for holding thin, flat, fragile, or precision workpieces during machining, grinding, polishing, inspection, and other processes.
Alumina and silicon carbide are commonly considered materials. The appropriate material depends on wear, temperature, electrical insulation, chemical environment, thermal performance, and processing requirements.
There is no universal pore size. Depending on the application, porous ceramic materials may be available with different pore sizes such as 5, 10, 20, 30, 50, or 100 μm. The final selection depends on permeability, vacuum pressure, flow rate, workpiece coverage, and processing conditions.
No. Mesh or sieve size and porous ceramic pore size are different specifications. A #400 sieve may have an opening of approximately 38 μm under commonly referenced standards, but this does not mean that the porous ceramic should have a 38 μm or 30 μm pore size.
Yes. Porous ceramic vacuum chucks can be designed for wet grinding, polishing, cleaning, and other liquid-assisted processes. However, pore size, permeability, liquid characteristics, particle contamination, and vacuum-system capacity should be considered.
Yes. A porous ceramic vacuum chuck can be designed with a customized metal base, such as SUS630, combined with a porous alumina or silicon carbide ceramic surface according to the customer's drawing and equipment requirements.
Yes. Porous ceramic pore size and other structural characteristics can be evaluated and customized according to the application, required permeability, vacuum system, and workpiece requirements.
