High Strength | Wear Resistant | Mechanical Seal Solution

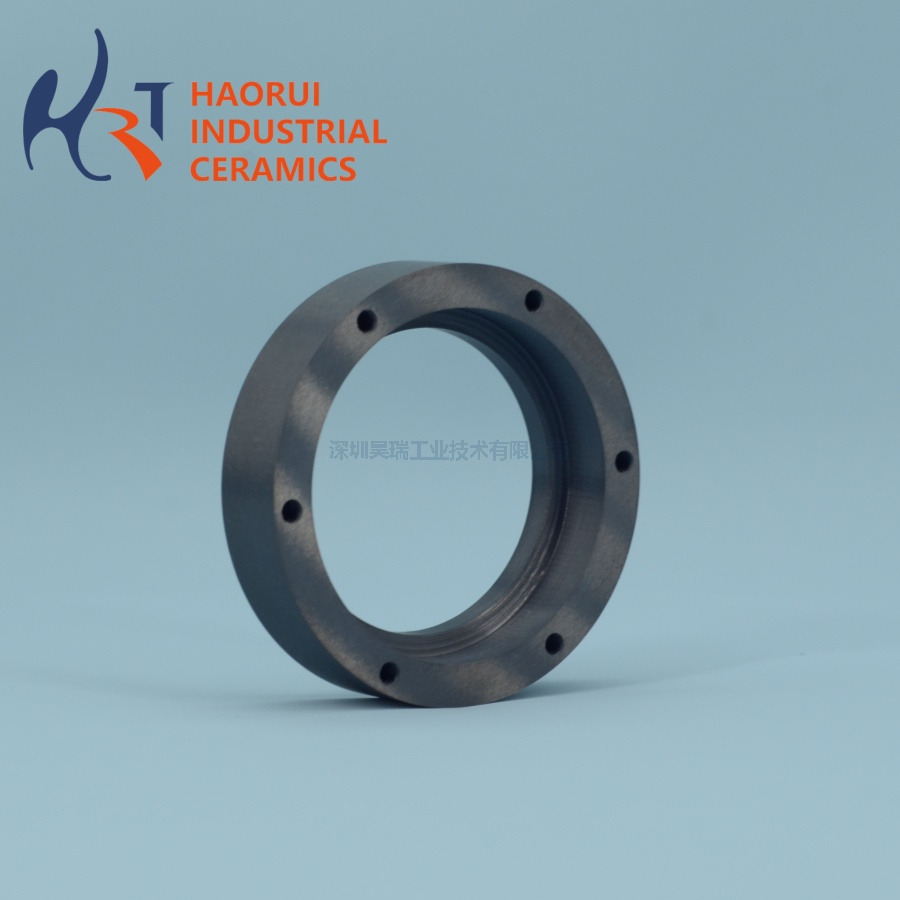

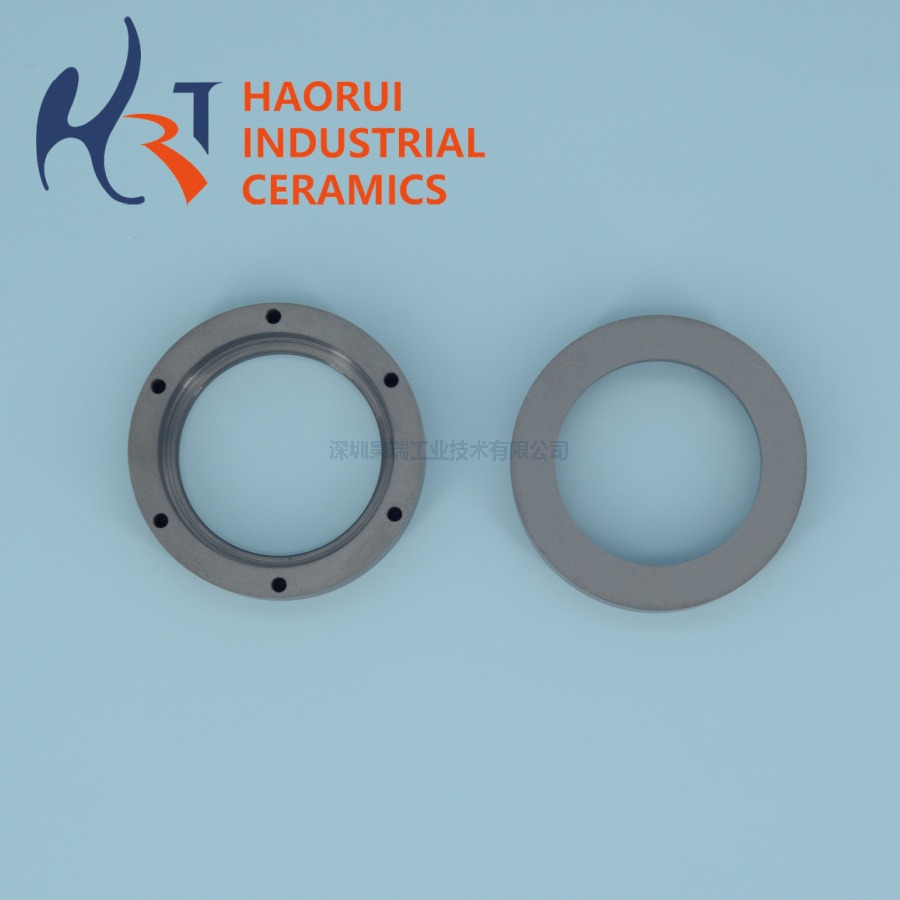

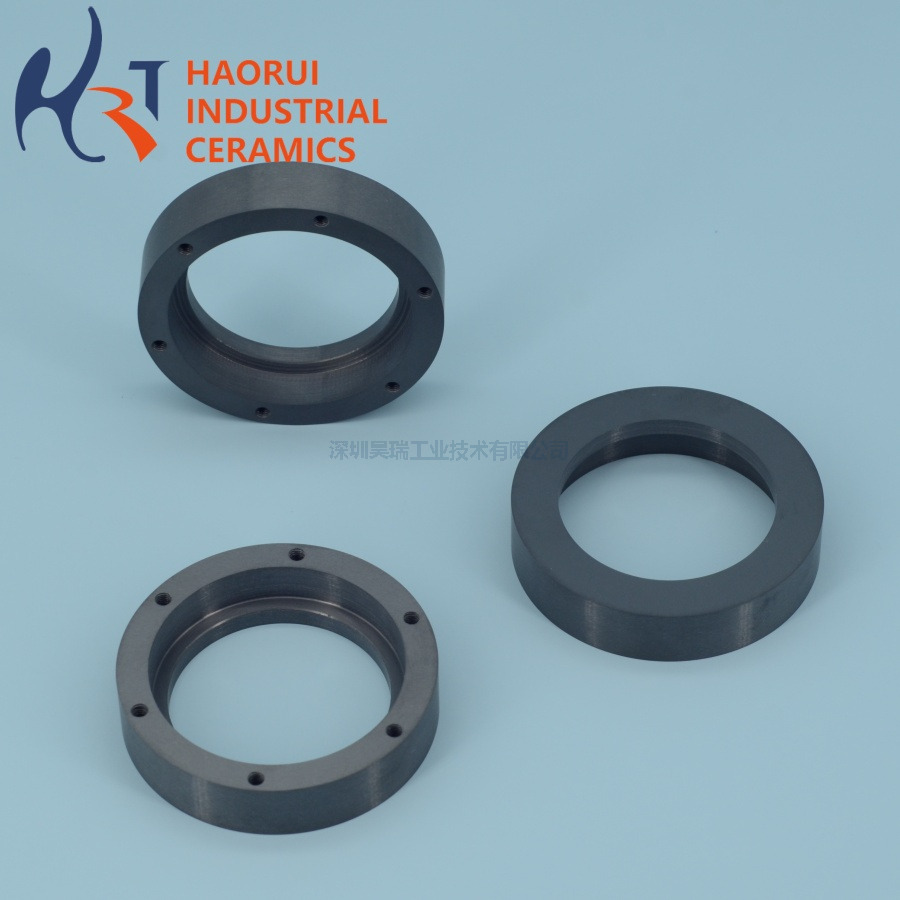

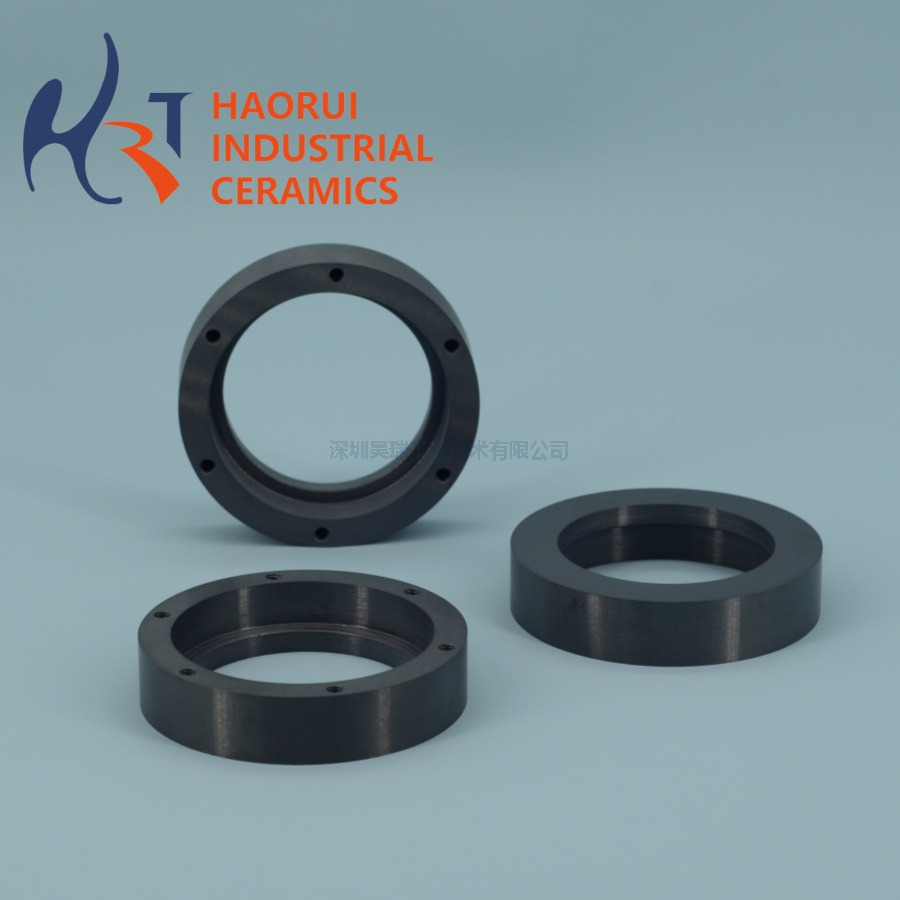

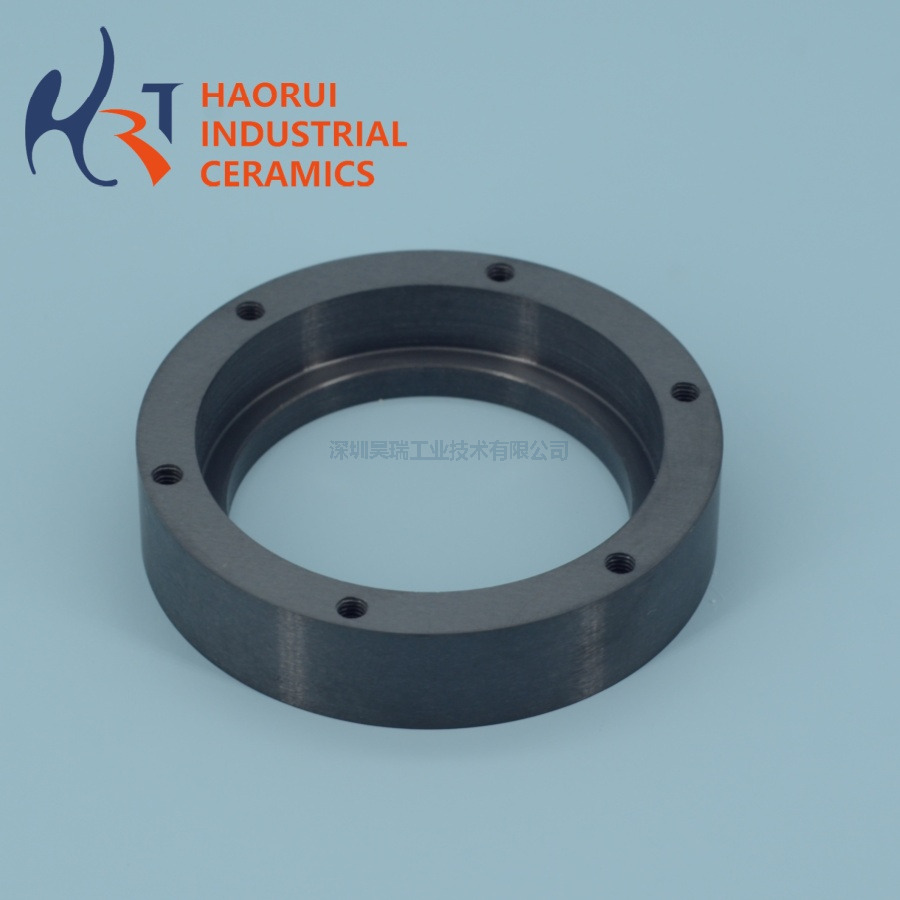

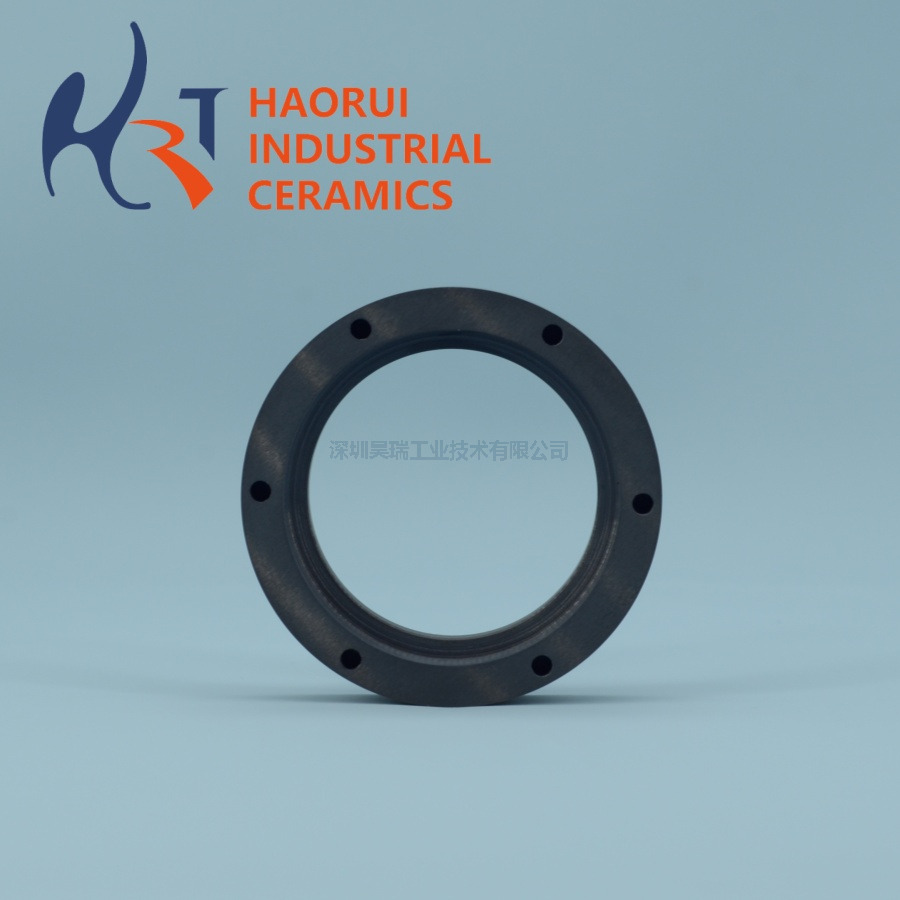

Our Silicon Nitride Ceramic Seal Ring (Si3N4) is designed for mechanical seal and pump applications requiring excellent wear resistance, high strength, and long service life.
Compared with traditional carbon or alumina seals, silicon nitride provides lower friction, higher hardness, and superior thermal stability.
Widely used in industrial pumps, chemical equipment, high-speed rotating shafts, and harsh working environments.
✅ Excellent Wear Resistance
High hardness and low friction coefficient reduce wear and extend service life.
✅ High Mechanical Strength
Suitable for high-speed rotation and high-load sealing conditions.
✅ High Temperature Resistance
Stable performance under elevated temperatures without deformation.
✅ Chemical & Corrosion Resistance
Suitable for aggressive media such as acids, alkalis, and solvents.
✅ Precision Machining
CNC machined and finely ground for tight tolerance and smooth sealing surface.
✅ Custom Design Available
OEM & ODM supported based on drawings or samples.
Mechanical Seal Rings for Pumps
Industrial Pump Seal Systems
Chemical & Petrochemical Equipment
High-Speed Shaft Sealing
Water, Oil & Chemical Fluid Sealing
Industrial Machinery & Equipment
| Property | Value |
|---|---|
| Material | Silicon Nitride (Si3N4) |
| Hardness | ≥ HV1400 |
| Density | ≥ 3.2 g/cm³ |
| Bending Strength | ≥ 900 MPa |
| Fracture Toughness | ≥ 6.0 MPa·m¹/² |
| Max Working Temperature | Up to 1200°C |
| Thermal Shock Resistance | Excellent |
(Data may vary slightly depending on grade and application)
Advanced ceramic powder preparation
Cold isostatic pressing / pressureless sintering
CNC precision machining
Fine grinding & polishing
Full-size inspection & quality control
✅ Tolerance: up to ±0.01 mm
✅ Surface Finish: Ra ≤ 0.4 μm (optional)
We support full customization, including:
Outer / Inner Diameter
Thickness
Surface Flatness & Roughness
Edge Chamfer & Special Structures
Small Trial Orders & Mass Production
Just send your drawing or application requirements.
✔ Over 19 Years Experience in Advanced Ceramics
✔ Specialized in Silicon Nitride & Zirconia Components
✔ In-house Precision Machining & Inspection
✔ Stable Quality & Competitive Factory Price
✔ Reliable Supplier for Industrial & OEM Customers
Looking for a high performance silicon nitride ceramic seal ring?
Contact us now for technical support, drawings review & competitive quotation.
