✅ 99% High-Purity Alumina – Exceptional wear resistance, high-temperature durability, and corrosion resistance, ideal for semiconductor manufacturing, electronic packaging, and precision machinery.
✅ CNC Ultra-Precision Machining – Achieving ±0.01mm tolerance, with fine grinding for an ultra-smooth surface.
✅ Factory Direct Supply – No middlemen, ensuring the best quality at the most competitive prices.
✅ Custom Manufacturing – We offer tailor-made solutions to meet your exact specifications in size, shape, and tolerance.
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |
NEW111
HaoRui
custom01020

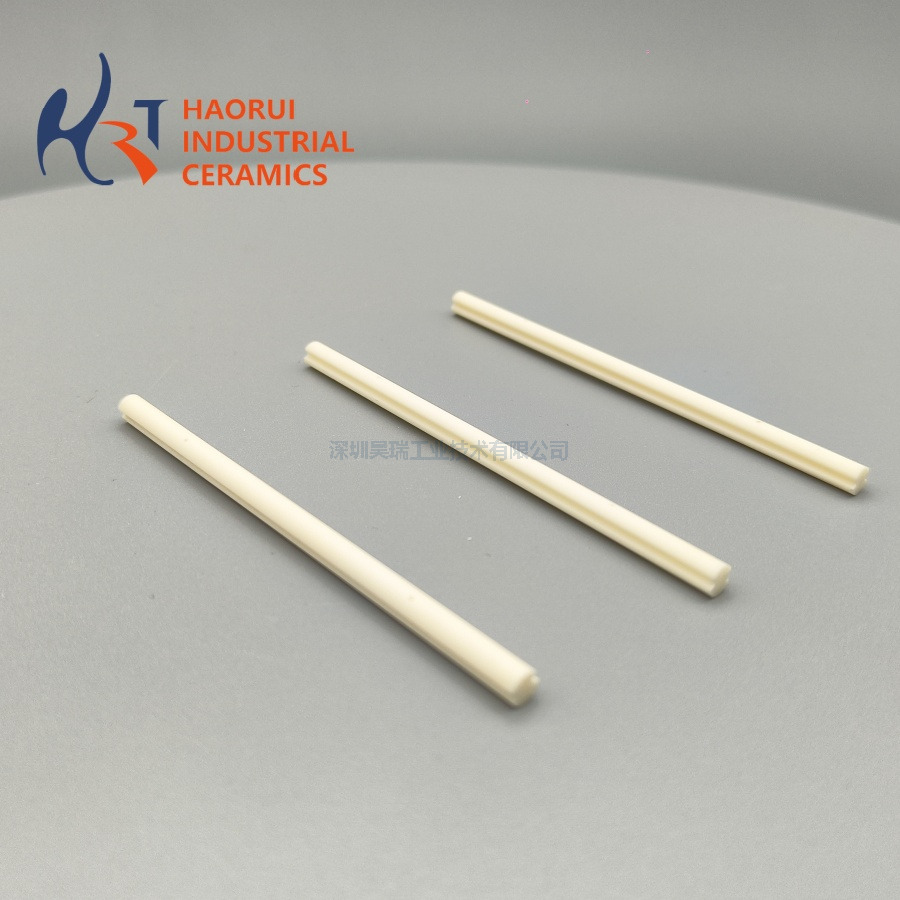

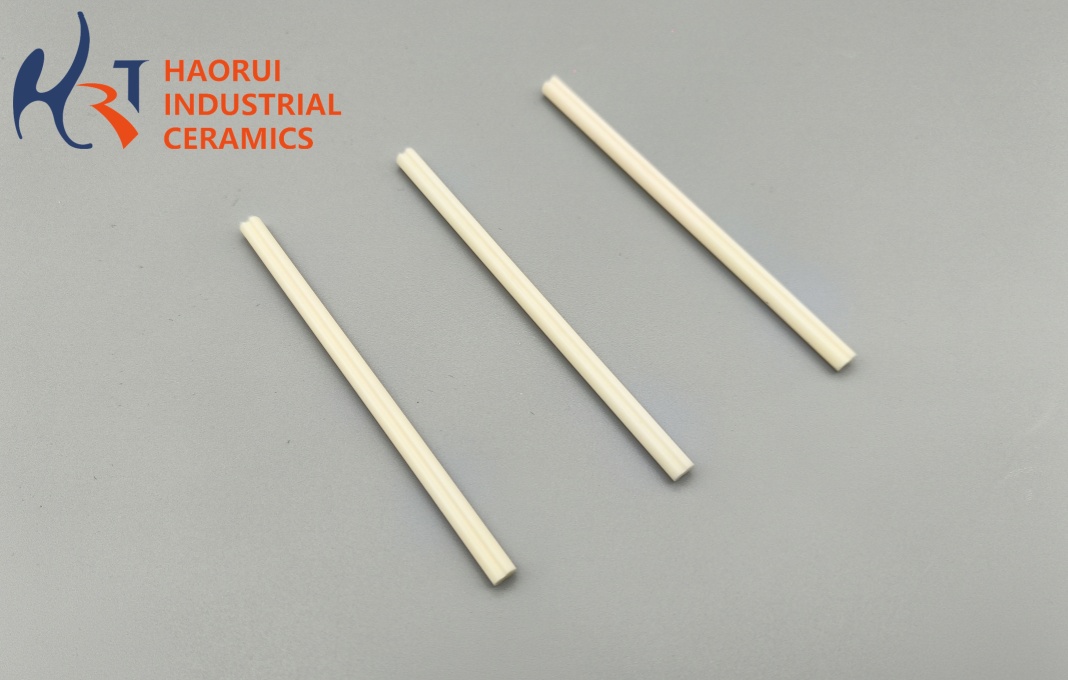

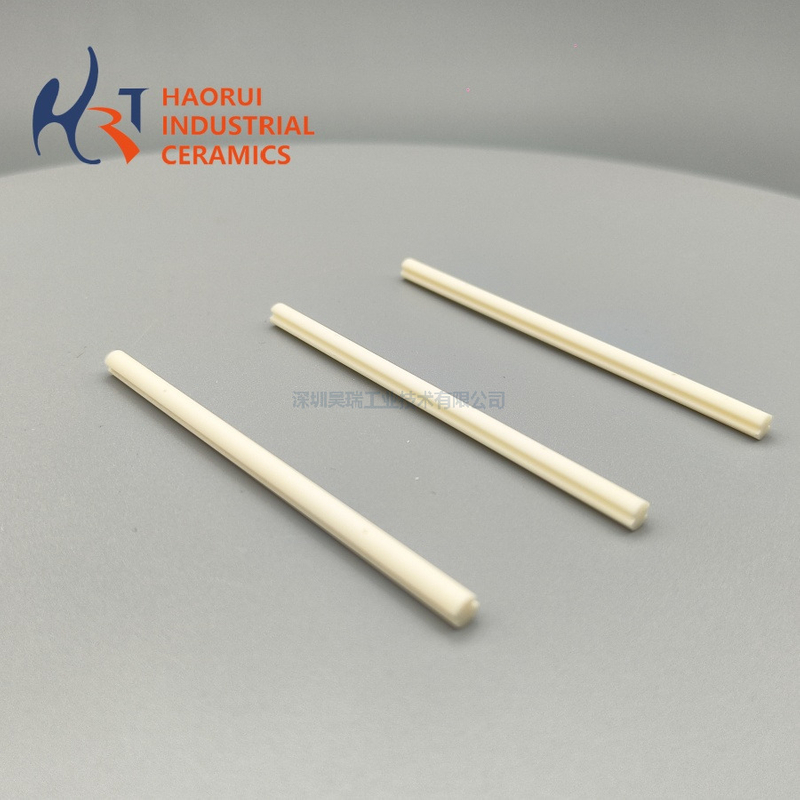

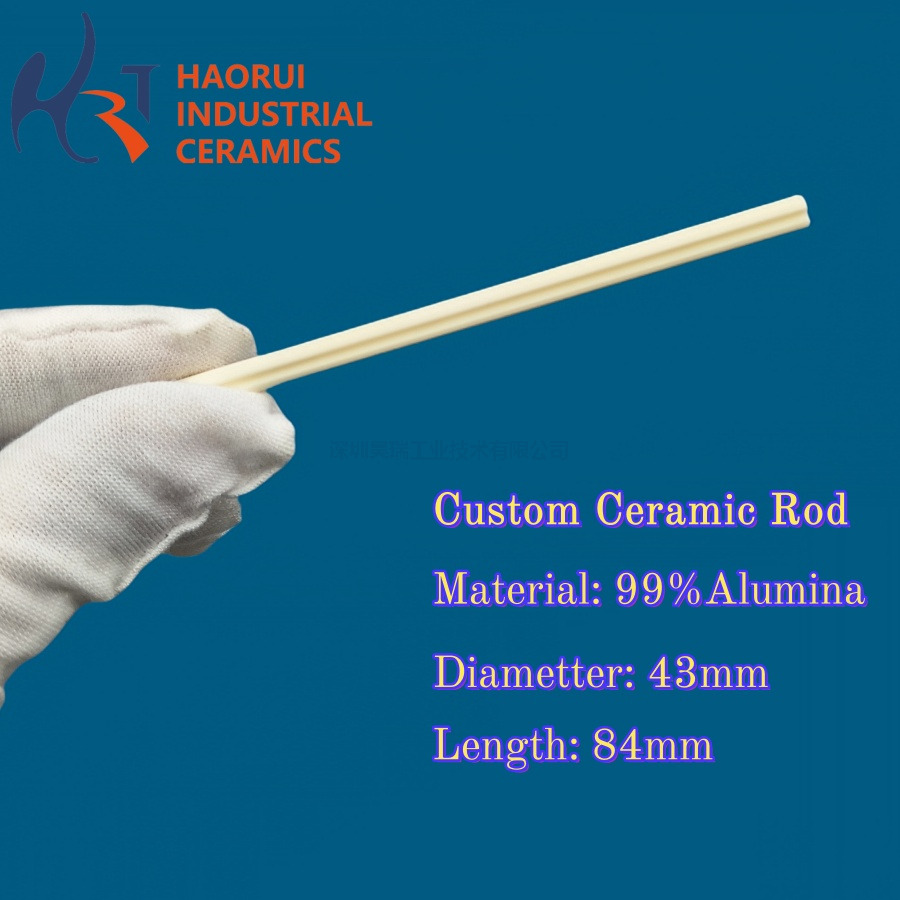

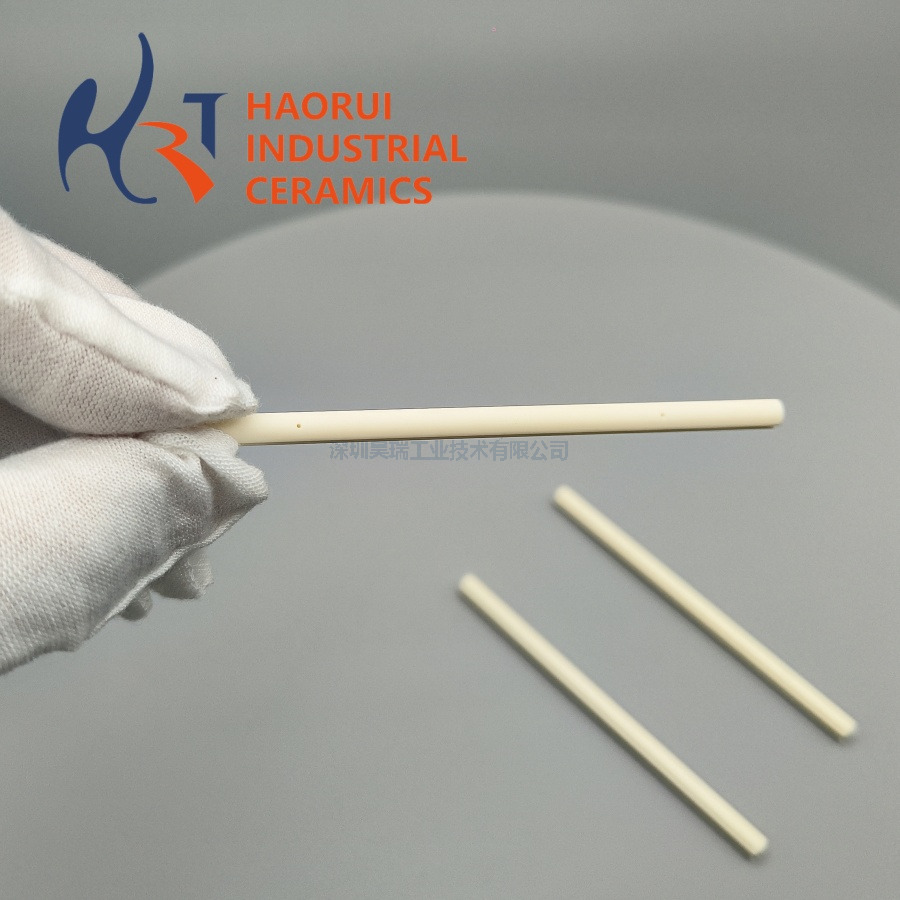

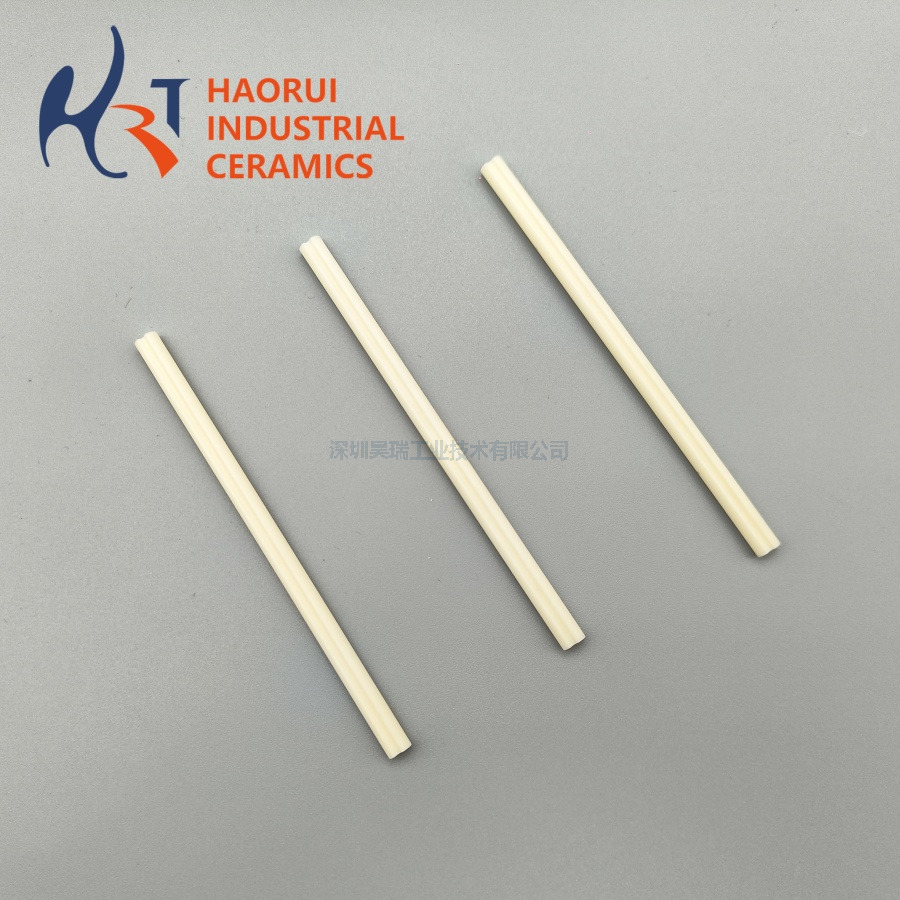

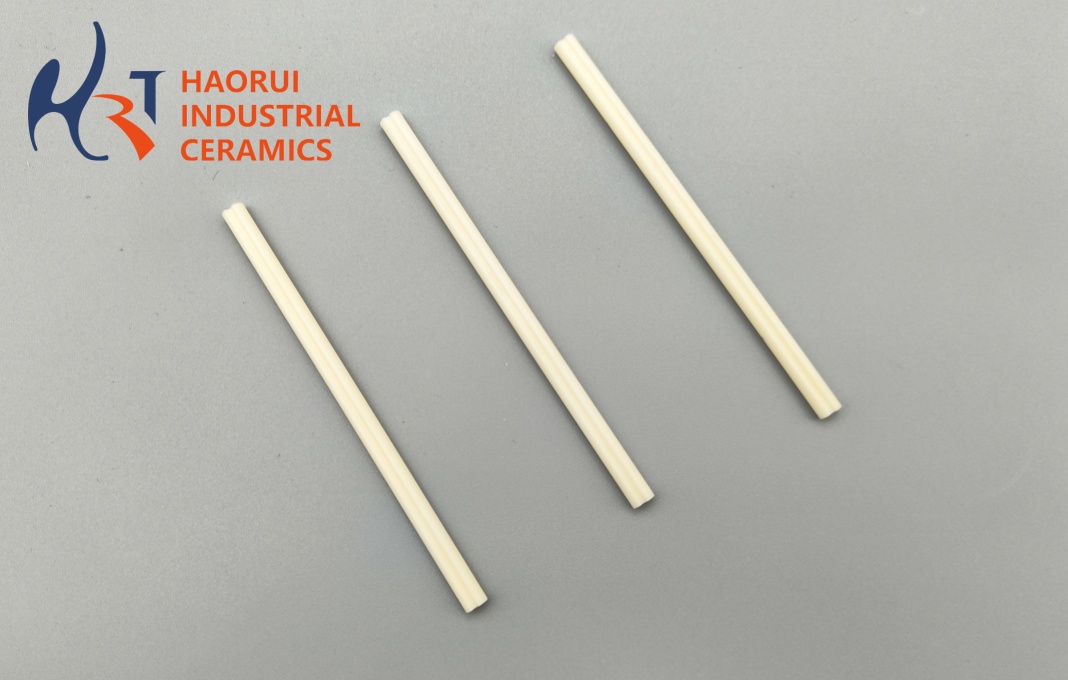

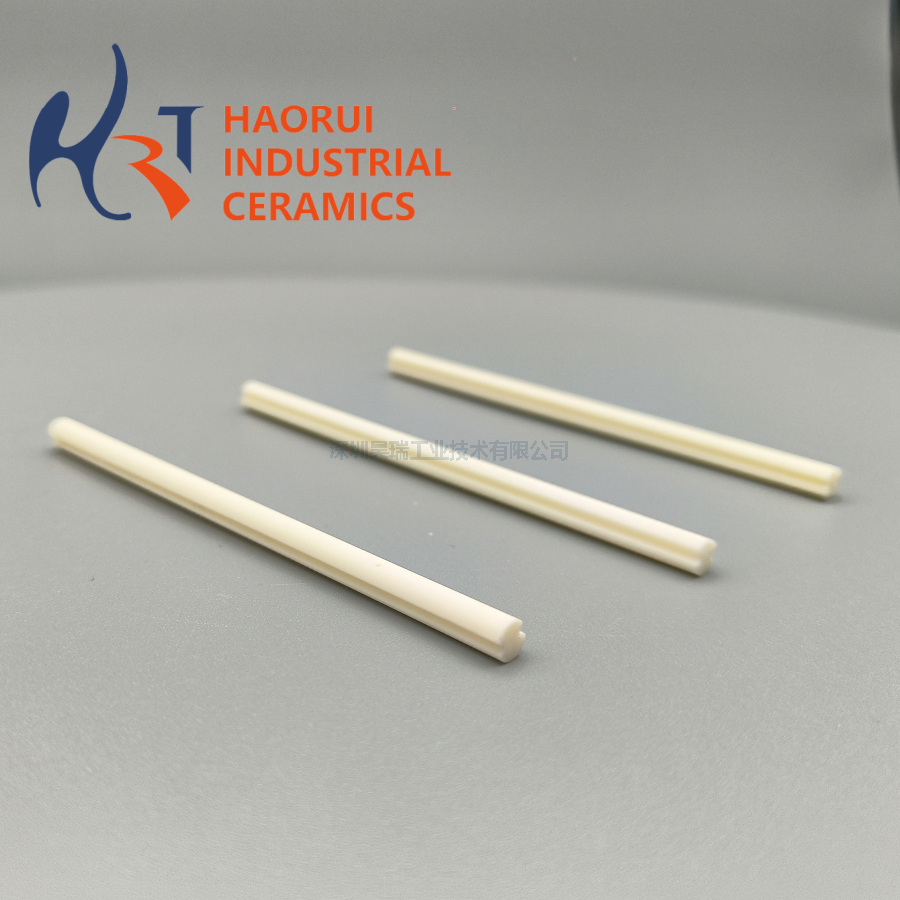

Custom-Structured Alumina Ceramic Rod manufactured by Shenzhen Haorui Industrial Technology Co., Ltd. with CNC precision machining.
Length: 84mm
Diameter: 43mm
Structure: The rod features four machined faces:
Two faces include precisely drilled holes (for alignment, mounting, or fluid paths)
The other two faces have fine grooves, ideal for heat dissipation, guiding, or functional integration
Made of 99% high-purity alumina, this rod offers excellent electrical insulation, high-temperature resistance, corrosion resistance, and dimensional stability.
It is widely used in semiconductors, optical communication, electronic fixtures, biomedicine, and other precision industries.
Custom non-standard designs including holes, slots, and tight tolerances (±0.01mm) are supported based on drawings.
✅ Material: 99% high-purity alumina (Al₂O₃) ceramic
✅ Precision Machining: Threaded center and mounting holes processed with ultra-tight tolerances
✅ Excellent Insulation: Ideal for electrical and thermal isolation
✅ High Temperature Resistance: Withstands temperatures above 1600°C
✅ Corrosion & Wear Resistance: Durable in chemically aggressive or abrasive environments
✅ Fine Surface Finish: Ground and polished for smooth, professional-grade surface
| 项目 / Item | 参数 / Value |
|---|---|
| 材质 / Material | 99% 氧化铝陶瓷 / 99% Alumina Ceramic |
| 尺寸 / Dimensions | Ø43mm × L84mm |
| 精度 / Tolerance | ±0.01mm |
| 结构设计 / Features | 打孔2面 + 开槽2面 / 2 holed faces + 2 grooved faces |
| 加工方式 / Machining | CNC精加工 + 精磨 / CNC + Precision Grinding |
| 耐温 / Temp. Resistance | 高达1600°C / Up to 1600°C |
| 电绝缘 / Electrical Insulation | 极佳 / Excellent |
At Shenzhen Haorui Industrial Technology, we specialize in high-precision ceramic machining, offering:
✅ Top-quality alumina ceramics with exceptional durability
✅ Advanced CNC processing for customized complex structures
✅ Strict quality control ensuring high-accuracy production
✅ Expert engineering support to meet industry-specific needs
For inquiries about custom alumina ceramic machining, contact us today!
|Comment & FAQ
1. Are you a factory or a trading company?
A:We are a professional manufacturer of ceramic parts. we are factory.
2. Do you only supply standard parts or can customized parts according to our drawing?
A: All parts can be customized according to you drawings and will meeting your requirements perfectly.
3. Can the price be negotiated?
A: Of course, we will consider discounts for large-volume orders.
4: Can you guarantee the product?
A: Yes, we promise to provide quality assurance for all products, inspect according to your drawings and issue an inspection report. If you are not satisfied with our product quality or service, please feel free to give us feedback.
5: Can I visit your factory?
A: Of course, welcome your arrival, please contact us in advance and make an appointment.
6: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
7: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:
sales@szhr-tech.com
|
Certifications
|
Data Sheet
Properties of Alumina material (Al2O3)
| Property | Item | 95% Al2O3 | 99% Al2O3 | 99.8%Al2O3 | Unit |
| Mechanical Characteristics | Color | White | light yellow | Ivory | |
| Bulk Density | 3.7 | 3.85 | 3.93 | g/cm3 | |
| Water Absorption | 0 | 0 | 0 | % | |
| Bending Strength | 300 | 310 | 370 | MPa | |
| Compressive Trength | 2,300 | 2,400 | 2500 | MPa | |
| Elastic Modulus | 320 | 340 | 390 | GPa | |
| Fracture Toughness | 3~4 | 3~4 | 4 | MPa m1/2 | |
| Weber Coefficient | 12 | 12 | 12 | m | |
| Vickers Hardness | 1,400 | 1,600 | 1850 | HV 0.5 | |
| Thermal Characterics | Coefficient of Line Thermal Expansion | 7~8 | 7~8 | 7~8 | 10-6 K-1 |
| Thermal Conductivity | 20 | 29 | 32 | W/mK | |
| Thermal Shock Resistance (Put in Water) | 250 | 200 | 280 | ΔT °C | |
| Max Working Temperature | 1,500 | 1,600 | 1700 | °C | |
| Electrical Characteristics | Volume Resistance At 20°C | >1014 | >1014 | >1014 | Ωcm |
| Dielectric Strength | 15×106 | 15×106 | 15×106 | V/m | |
| Dielectric Constant | 9 | 10 | 10 | εr | |
| One MHZ Dielectric Loss Angle at 20°C | 0.0004 | 0.0002 | 0.0001 | tanδ | |
| Chemical Characteristics | Nitric Acid (60%) 90°C | 0.1 | 0.1 | 0.05 | 24H WT Loss mg/cm2 |
| Sulphuric Acid (95%) 95°C | 0.3 | 0.34 | 0.22 | ||
| Caustic Soda (30%) 80°C | 0.9 | 0.95 | 0.04 |
